2008 Chevrolet Uplander V6-3.9LFACTORY OEM SERVICE PROCEDURE
HVAC Control Module Replacement
HVAC Control Module Replacement

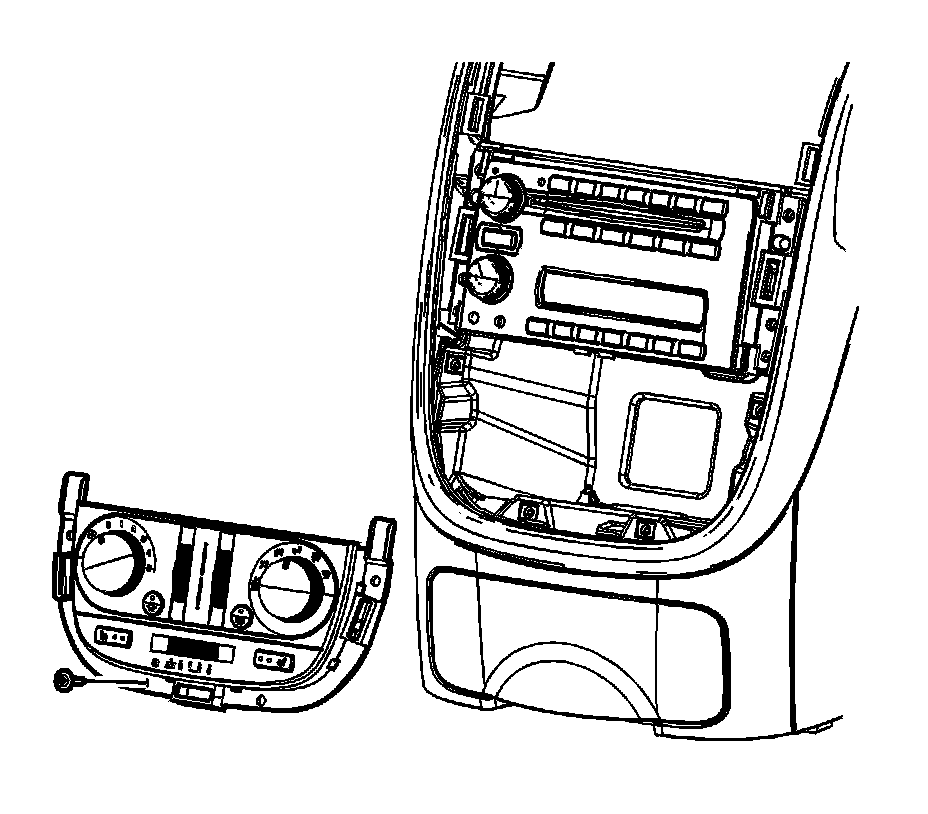

Removal Procedure
1. Remove the instrument panel (I/P) accessory trim plate.
2. Remove the HVAC control module bolts/screws.
3. Pull the HVAC control module straight out from the I/P.
4. Disconnect the HVAC control module electrical connectors.
Installation Procedure
1. Connect the HVAC control module electrical connectors.
2. Install the HVAC control module into the I/P opening.
Notice: Refer to Fastener Notice (Fastener Notice).
3. Install the HVAC control module bolts/screws.
Tighten the bolts/screws to 2.5 N.m (22 lb in).
4. Install the I/P accessory trim plate.
5. Re-calibrate the actuators. Refer to Actuator Recalibration (Programming and Relearning).
6. Refer to Control Module References (Programming and Relearning) for programming and setup information.
