2008 Chevrolet Uplander V6-3.9LFACTORY OEM SERVICE PROCEDURE
Axle Shaft Assembly
Wheel Drive Shafts Disassembled Views (Front)

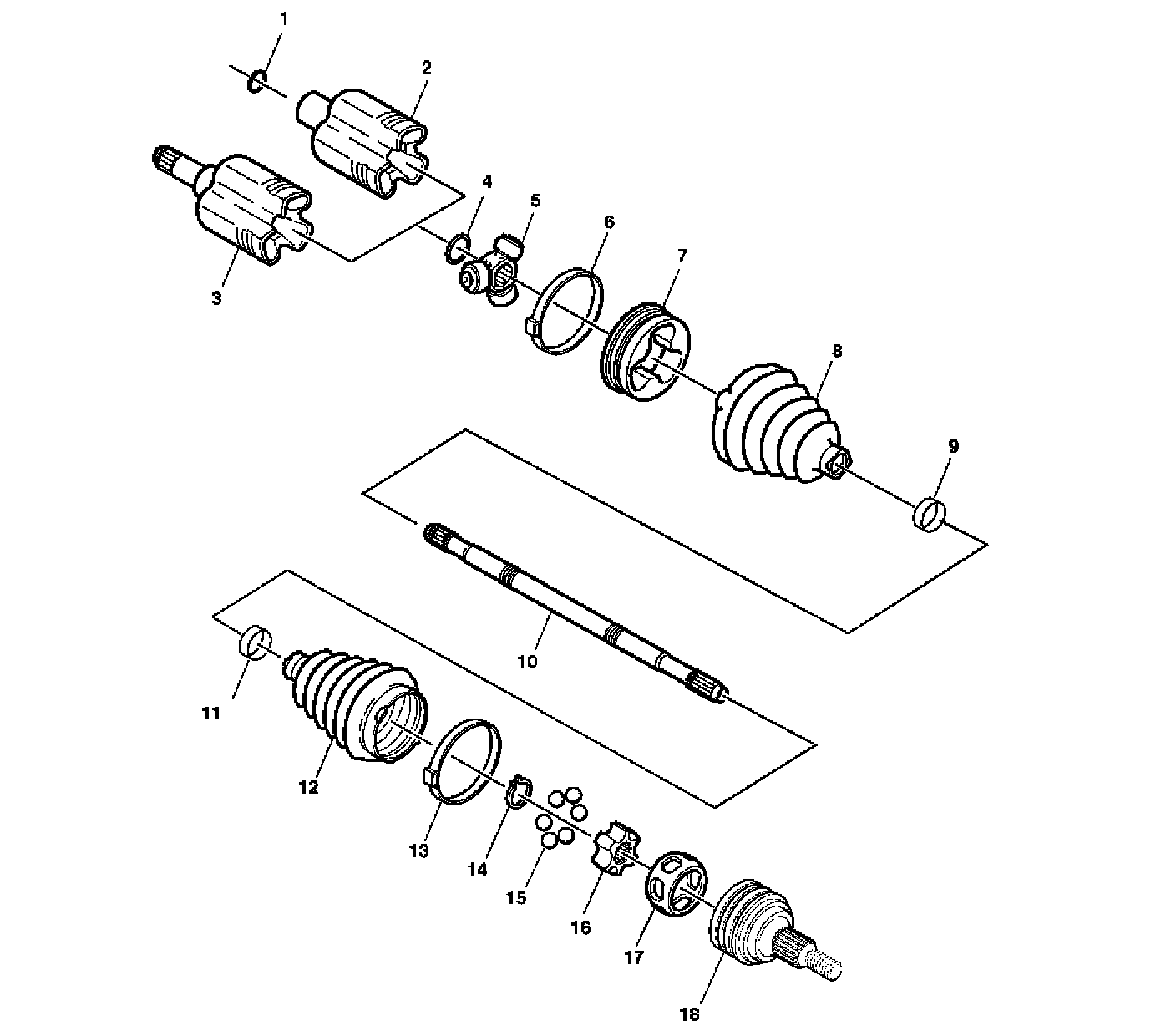

Wheel Drive Shafts Disassembled Views (Delphi - Front):
1 - Retaining Ring
2 - Housing Assembly
3 - Retainer and Housing Assembly
4 - Spacer Ring
5 - Tripot Joint Spider Assembly
6 - Boot Retaining Clamp
7 - Trilobal Tripot Bushing
8 - Tripot Joint Boot
9 - Swage Ring
10 - Halfshaft Bar
11 - Swage Ring
12 - CV Joint Boot
13 - Boot Retaining Clamp
14 - Race Retaining Ring
15 - Chrome Alloy Ball
16 - CV Joint Inner Race
17 - CV Joint Cage
18 - CV Joint Outer Race
