2008 Chevrolet Malibu Classic V6-3.5LFACTORY OEM SERVICE PROCEDURE
Ignition Control Module: Locations
Powertrain Component Views

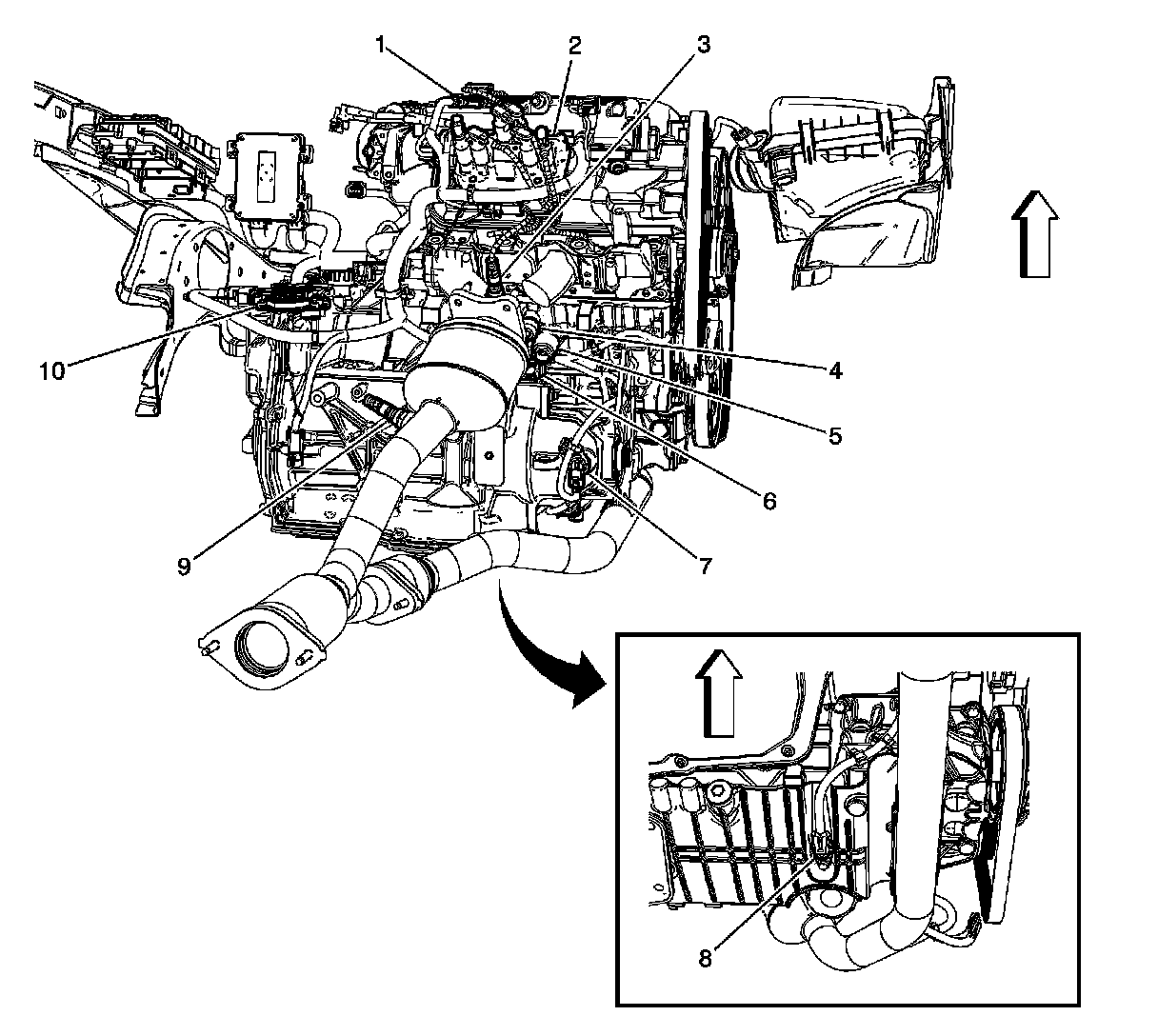

Rear View of Engine Components (LZ4)
1 - MAP Sensor
2 - Ignition Control Module (ICM)
3 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4 - Knock Sensor 1
5 - Engine Coolant Temperature (ECT) Sensor
6 - Crankshaft Position (CKP) Sensor
7 - Vehicle Speed Sensor (VSS)
8 - Engine Oil Level Sensor
9 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
10 - Park/Neutral Position (PNP) Switch
Rear of Engine (LZ4)
1 - Throttle Actuator Control (TAC) Module
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Ignition Control Module (ICM)
4 - Knock Sensor (KS) 2
5 - Engine Block Heater
6 - Engine Oil Level Sensor
7 - Crankshaft Position (CKP) Sensor
8 - Engine Coolant Temperature (ECT) Sensor
Top of the Engine Components 1 of 2 (LZ4)
1 - Ignition Control Module (ICM)
2 - Fuel Injector 3
3 - Fuel Injector 5
4 - Fuel Injector 4
5 - Fuel Injector 6
6 - Fuel Injector 2
7 - Camshaft Position (CMP) Sensor
8 - Generator
9 - Fuel Injector 1
