2008 Chevrolet Malibu Classic V6-3.5LFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Locations
Powertrain Component Views

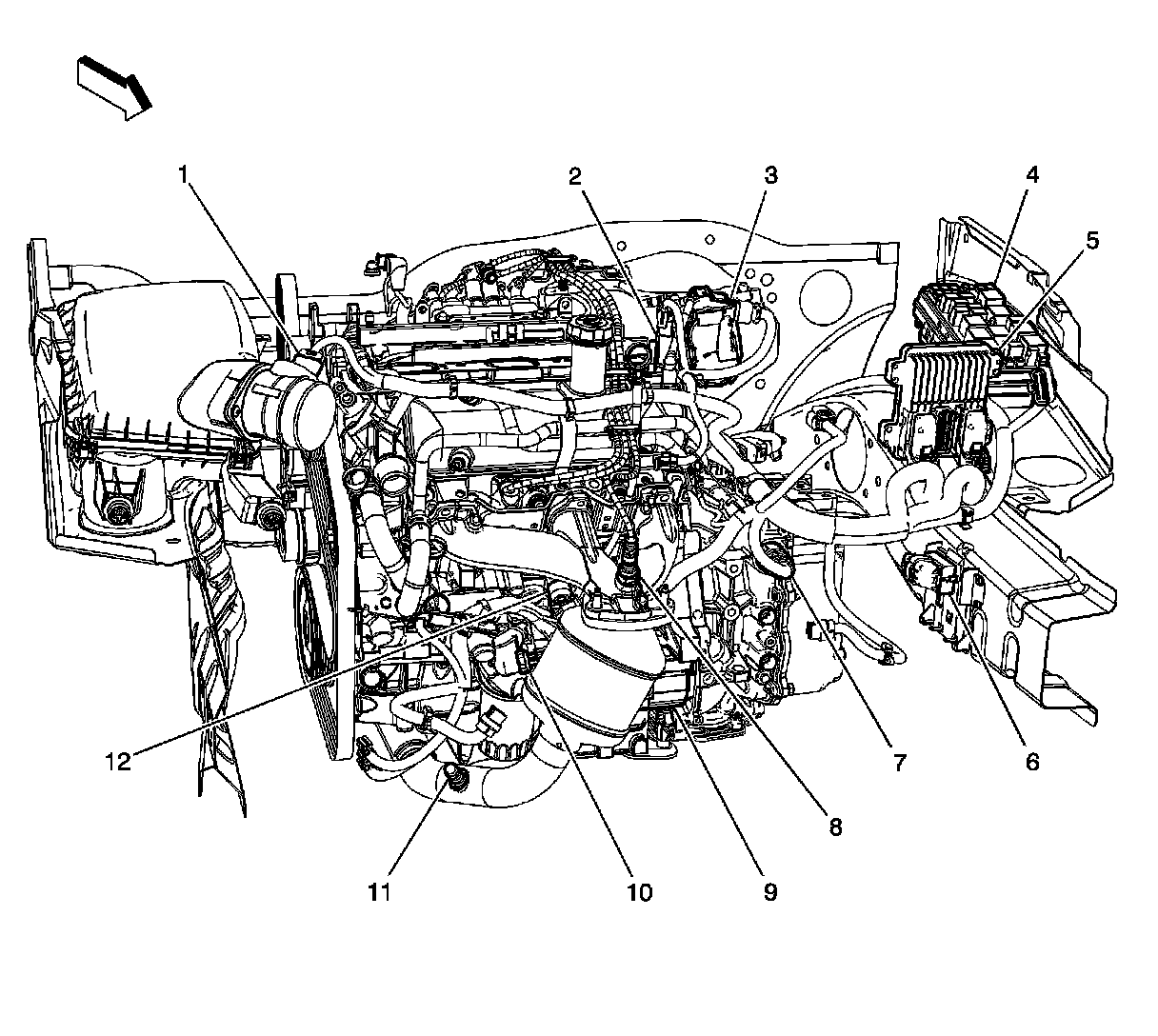

Front View of Engine (LZ4)
1 - MAF/IAT Sensor
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 - Throttle Actuator Control (TAC) Module
4 - Fuse Block - Underhood
5 - Engine Control Module (ECM)
6 - Transmission Control Module (TCM)
7 - X100
8 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
9 - Starter
10 - Engine Oil Pressure (EOP) Sensor
11 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
12 - Knock Sensor 2
