Door Component Views

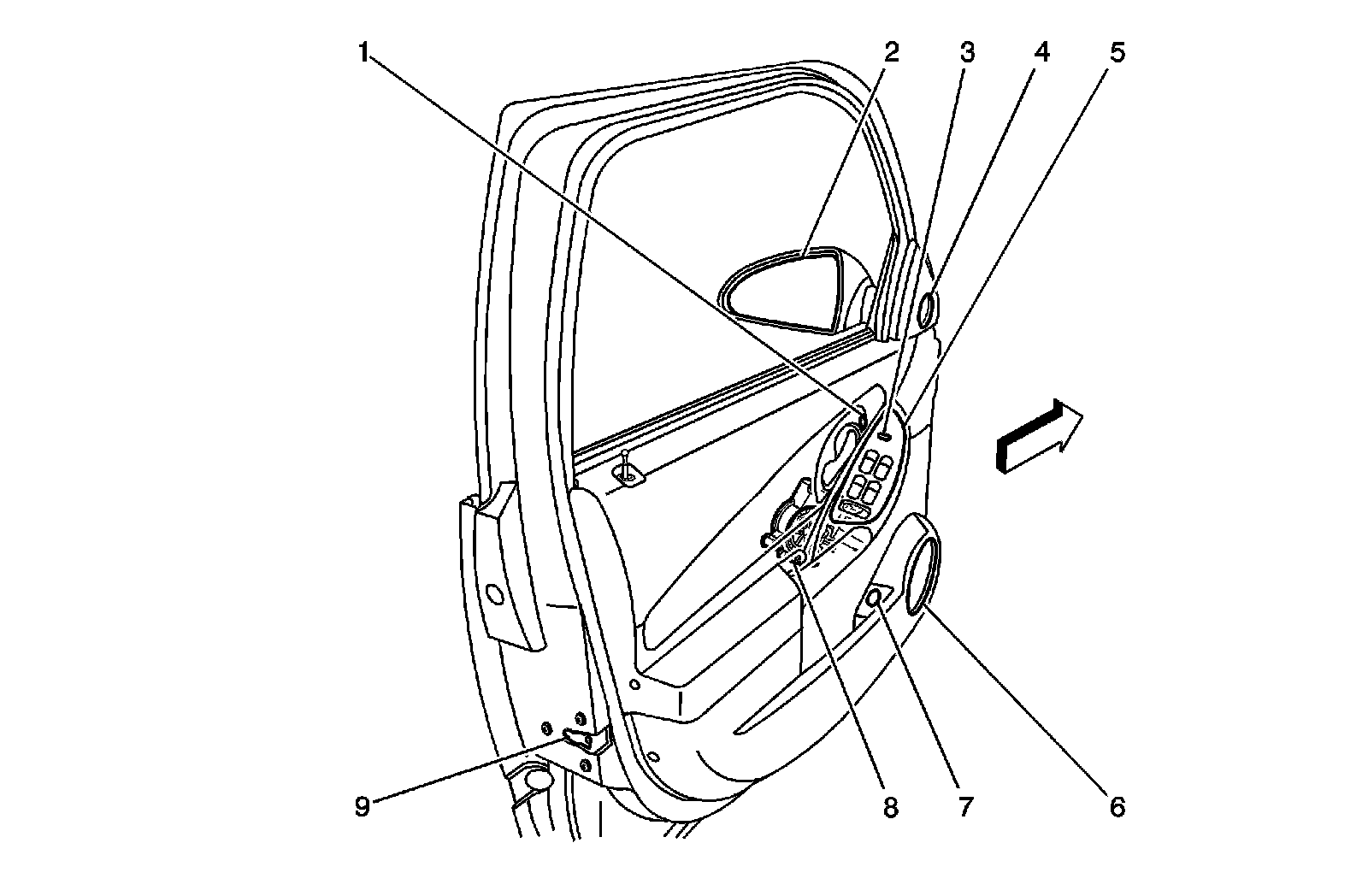

Left Front Door Components

1 - Door Lock Switch - Driver
2 - Outside Rearview Mirror - Driver
3 - Outside Rearview Mirror - Switch
4 - Speaker - Left Front Door Tweeter (UZ6)
5 - Window Switch - Driver
6 - Speaker - Left Front Door
7 - Rear Compartment/Liftgate Release Switch
8 - Window Motor - Driver
9 - Door Latch Assembly - Driver

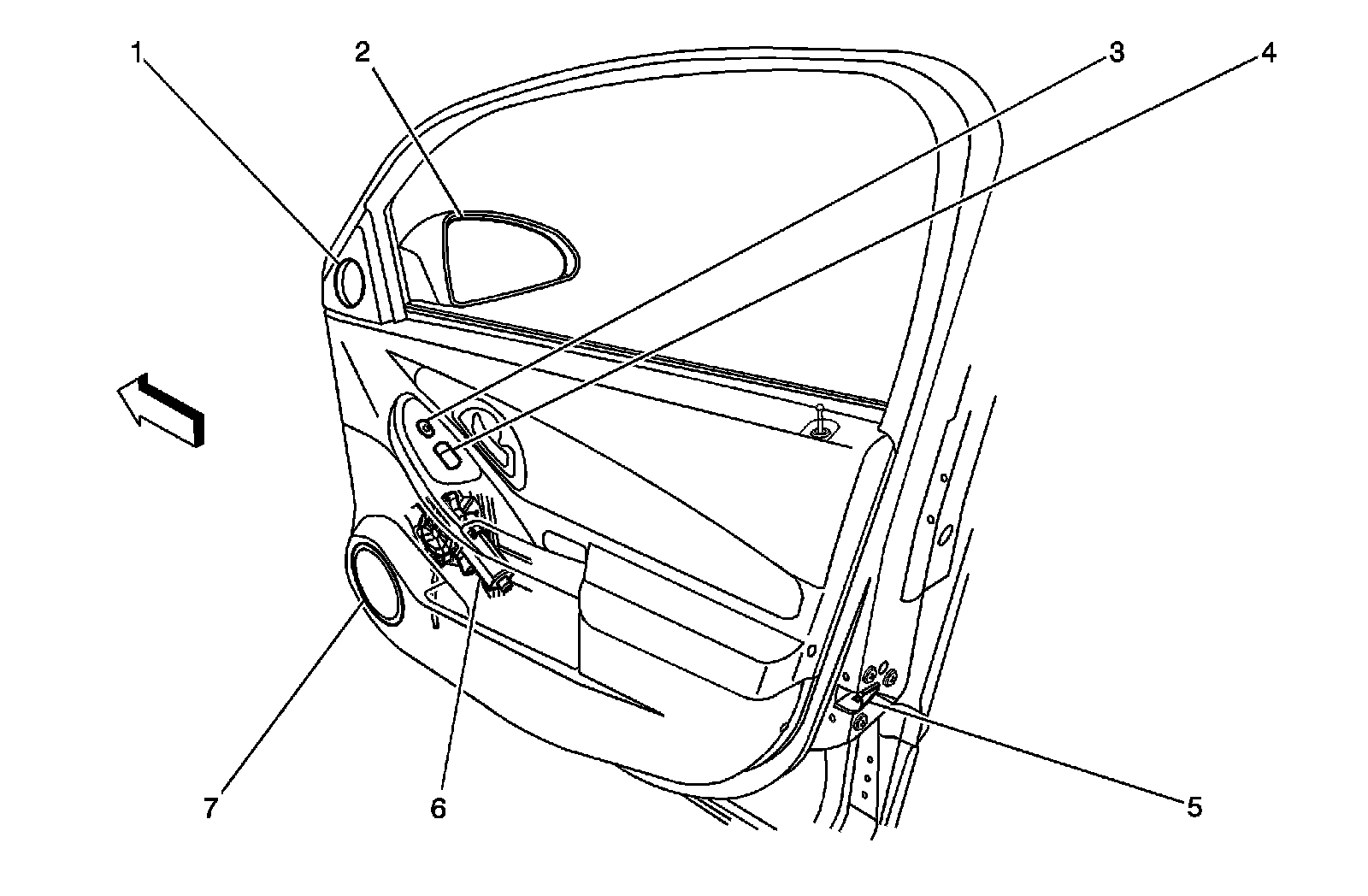

Right Front Door Components

1 - Speaker - Right Front Door Tweeter (UZ6)
2 - Outside Rearview Mirror - Front Passenger
3 - Door Lock Switch - Passenger
4 - Window Switch - Passenger
5 - Door Latch Assembly - Passenger
6 - Window Motor - Passenger
7 - Speaker - Right Front Door

Left Rear Door Components

1 - Window Switch - Left Rear
2 - Speaker - Left Rear Door (Extended Sedan)
3 - Window Motor - Left Rear
4 - Door Latch Assembly - Left Rear

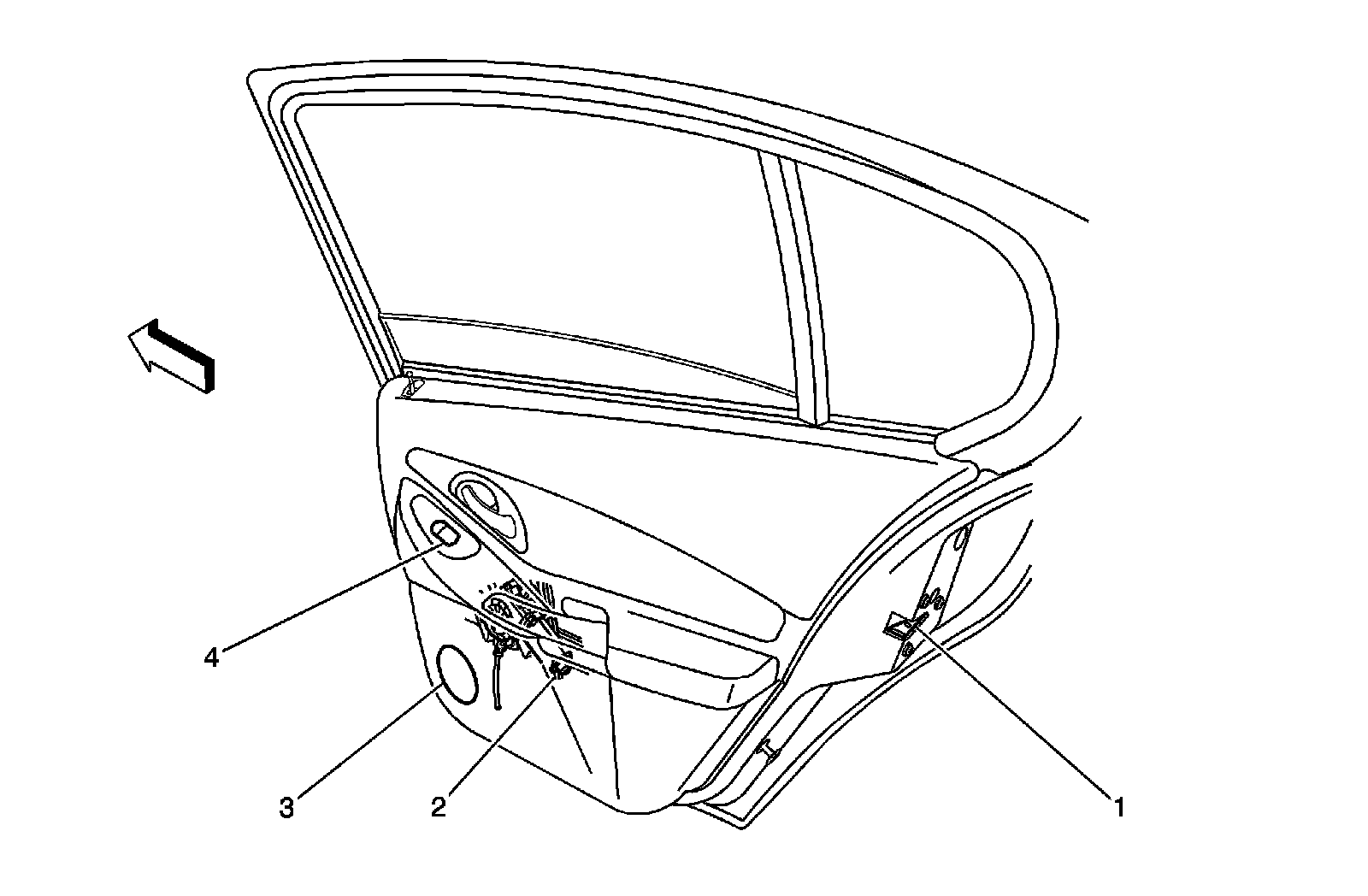

Right Rear Door Components

1 - Door Latch Assembly - Right Rear
2 - Window Motor - Right Rear
3 - Speaker - Right Rear Door (Extended Sedan)
4 - Window Switch - Right Rear
