2008 Chevrolet Malibu Classic V6-3.5LFACTORY OEM SERVICE PROCEDURE
Steering Column Disassembled View (Hydraulic Power Steering (HPS))
Steering Column Disassembled View (Hydraulic Power Steering (HPS))

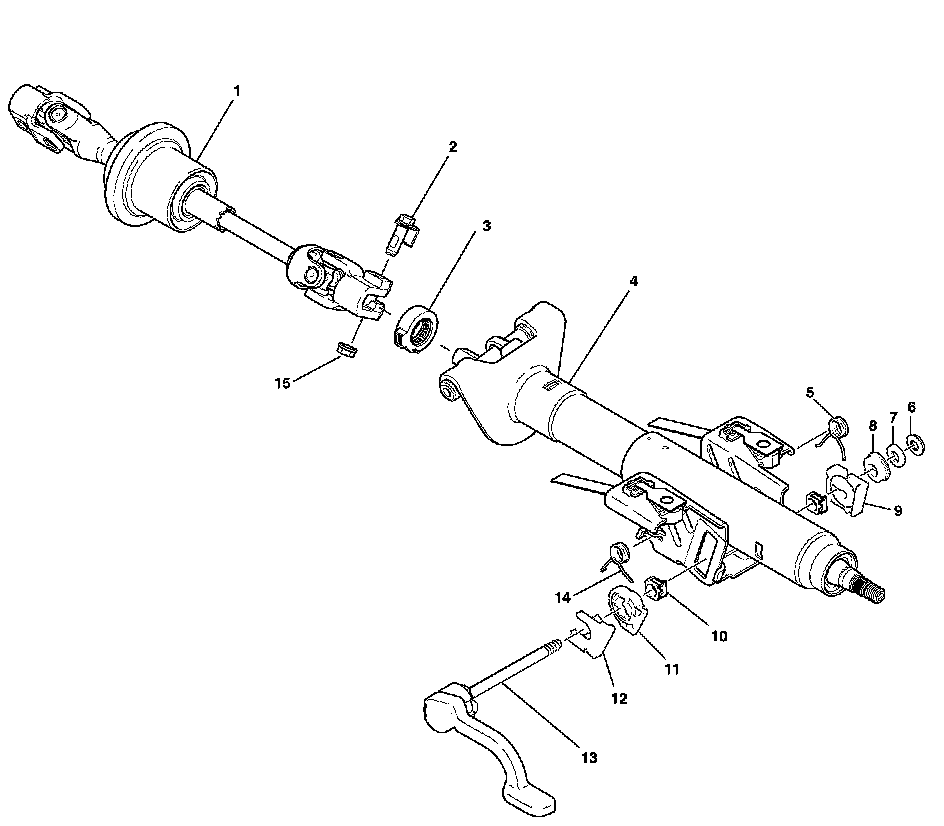

Steering Column Disassembled View (Hydraulic Power Steering):
1 - Intermediate Steering Shaft
2 - Bolt and Retainer Assembly
3 - Steering Wheel Position Sensor
4 - Steering Column Assembly
5 - R/H Tilt Spring
6 - Nylon Insert Nut
7 - Thrust Bearing Assembly
8 - Bolt Spacer
9 - Bolt Retainer
10 - Rake and Tele Teeth
11 - Rake and Tele Adj Cam
12 - Follower Release
13 - Tilt Lever Assembly
14 - L/H Tilt Spring
15 - Pinch Bolt Nut
