2008 Chevrolet Impala V6-3.5LFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Service and Repair
Vehicle Speed Sensor Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the right front tire and wheel. Refer to Tire and Wheel Removal and Installation (Service and Repair) .
3. Disconnect the vehicle speed sensor (VSS) electrical connector.

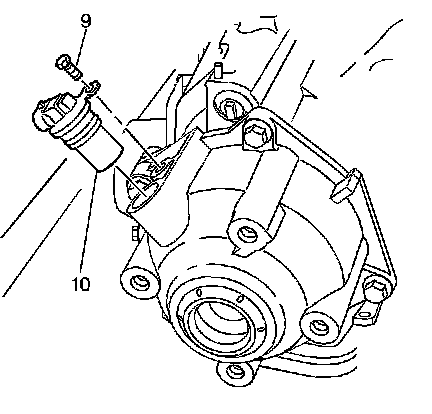

4. Remove the VSS bolt (9).
5. Remove the VSS (10) from the extension case.

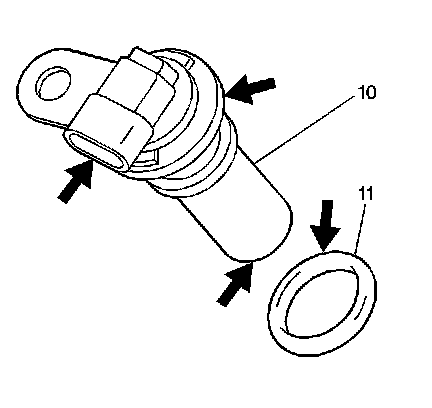

6. Remove the O-ring (11) from the VSS (10).
Installation Procedure
1. Install the O-ring (11) to the VSS (10).
2. Install the VSS (10).
Notice: Refer to Fastener Notice .
3. Install the VSS bolt (9).
Tighten the bolt (9) to 12 N.m (106 lb in).
4. Connect the VSS electrical connector.
5. Install the right front tire and wheel. Refer to Tire and Wheel Removal and Installation (Service and Repair) .
6. Lower the vehicle.
