2008 Chevrolet Impala V6-3.5LFACTORY OEM SERVICE PROCEDURE
Powertrain Component Views
Powertrain Component Views

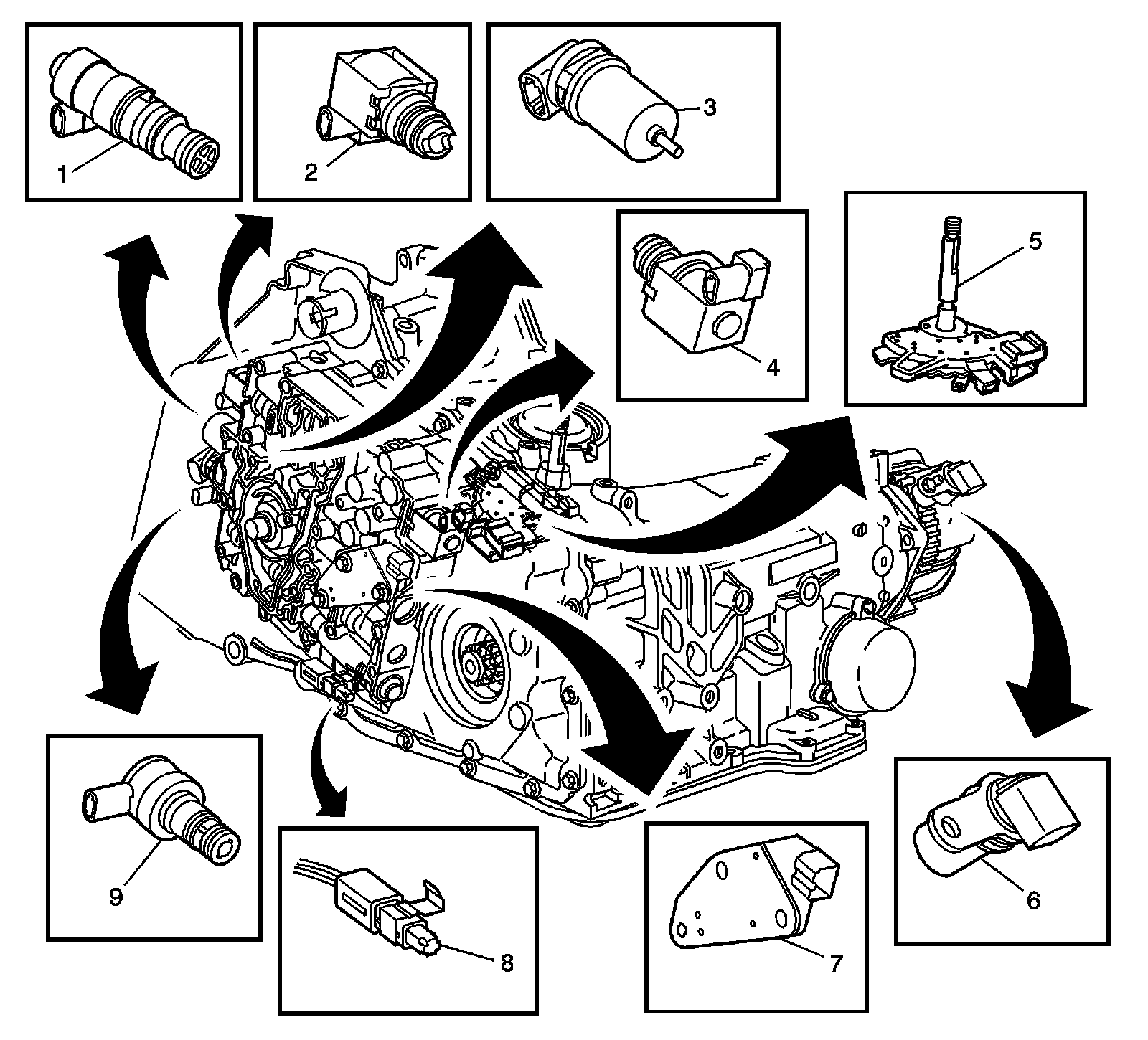

Transaxle
1 - Pressure Control (PC) Solenoid Valve
2 - 1-2 Shift Solenoid (SS) Valve
3 - Automatic Transmission Input Shaft Speed (ISS) Sensor
4 - 2-3 Shift Solenoid (SS) Valve
5 - Automatic Transmission Internal Mode Switch (IMS)
6 - Vehicle Speed Sensor (VSS)
7 - Automatic Transmission Fluid Pressure Manual Valve Position Switch
8 - Automatic Transmission Fluid Temperature Sensor
9 - Torque Converter Clutch (TCC) Solenoid Valve
