2008 Chevrolet Impala V6-3.5LFACTORY OEM SERVICE PROCEDURE
Axle Shaft Assembly
Wheel Drive Shafts Disassembled Views

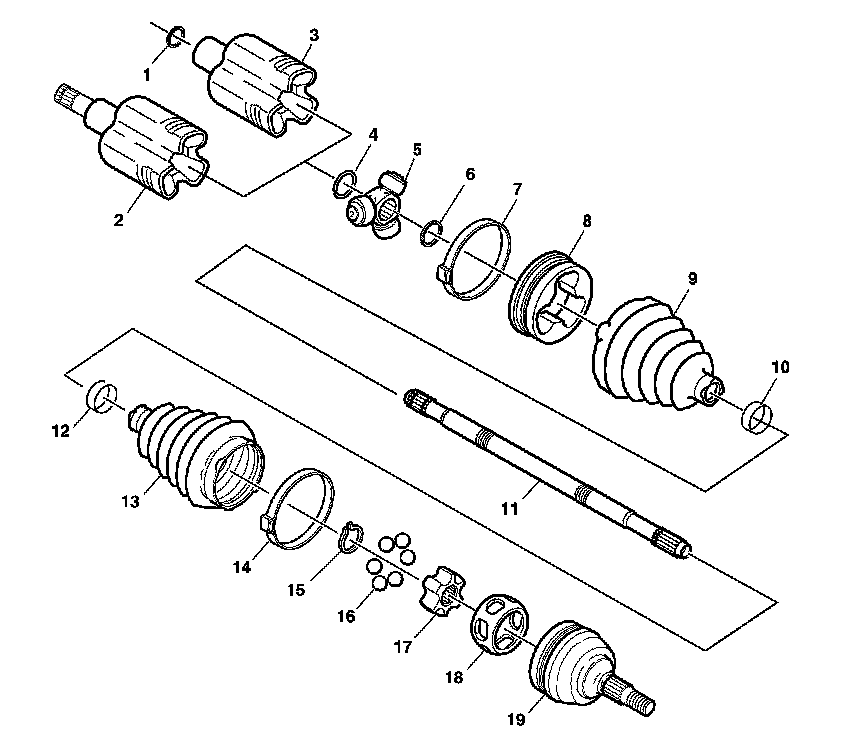

Wheel Drive Shafts Disassembled Views:
1 - Retaining Ring
2 - Housing Assembly
3 - Retainer and Housing Assembly
4 - Spacer Ring
5 - Tripot Joint Spider Assembly
6 - Spacer Ring (If Equipped)
7 - Boot Retaining Clamp
8 - Trilobal Tripot Bushing
9 - Tripot Joint Boot
10 - Swage Ring
11 - Halfshaft Bar
12 - Swage Ring
13 - CV Joint Boot
14 - Boot Retaining Clamp
15 - Race Retaining Ring
16 - Chrome Alloy Ball
17 - CV Joint Inner Race
18 - CV Joint Cage
19 - CV Joint Outer Race
