2008 Chevrolet HHR LT, 2.4 P, AutomaticFACTORY OEM SERVICE PROCEDURE
Installation Procedure

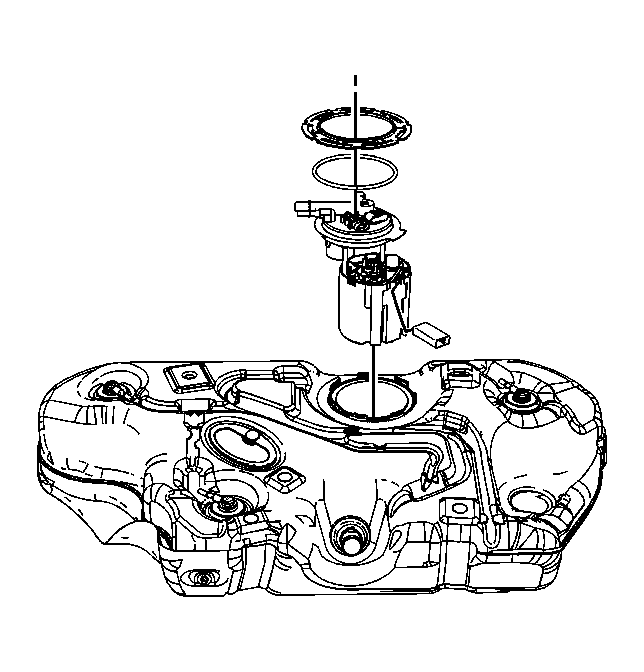

- Install a NEW fuel pump module seal onto the fuel tank.
- Tilt the module toward the rear of the fuel tank to allow the fuel level sensor float arm to clear the tank opening. Install the module into the fuel tank.
- Lower the module assembly into the tank. Ensure that the fuel level sensor harness connector is positioned properly.

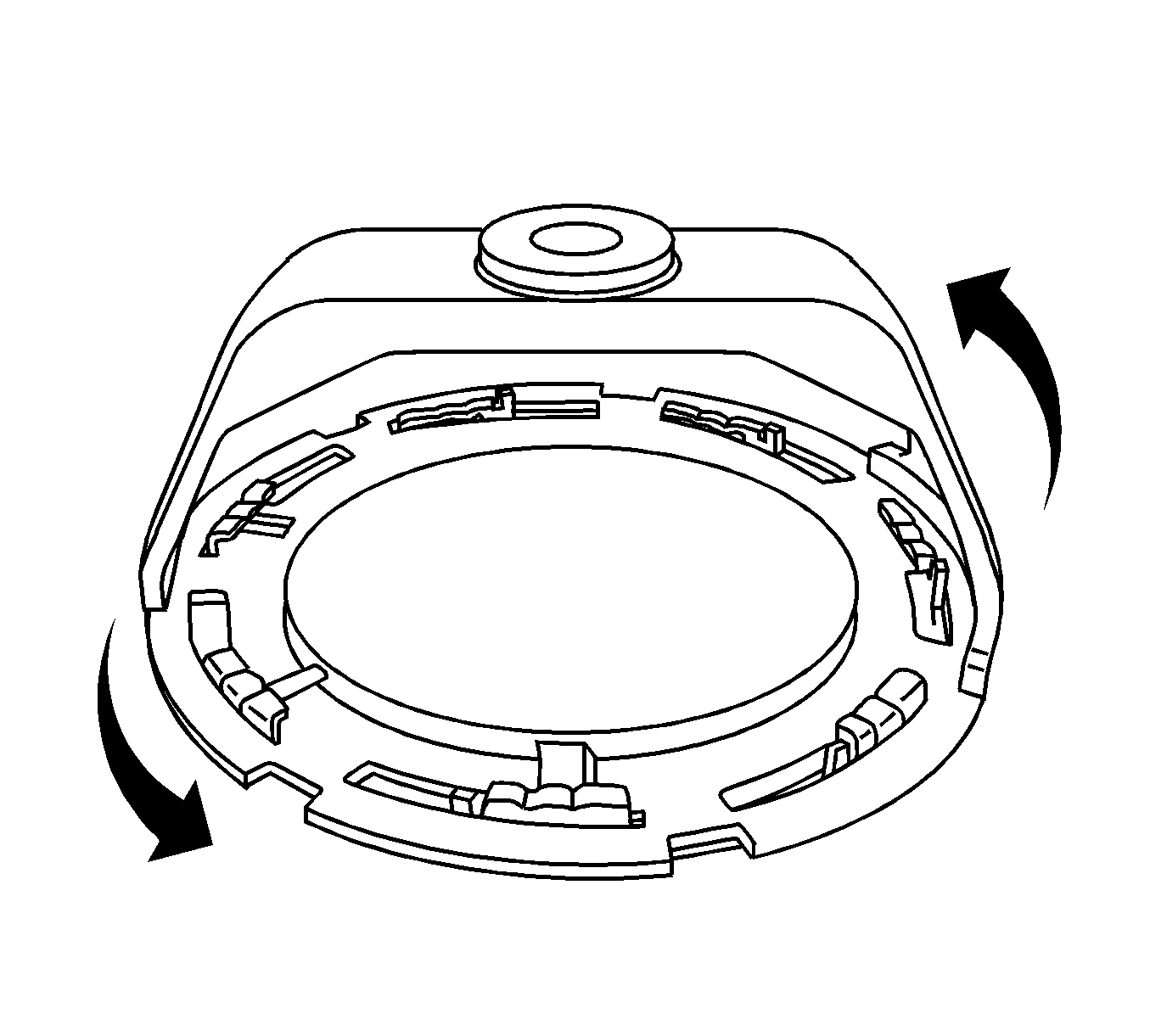

- Install the module lock ring over the module pipes and electrical harness, and into position on the top of the module.
IMPORTANT:
The reservoir must be tipped slightly during installation to avoid bending the fuel level sensor float arm.
