2008 Chevrolet Chevy Express G3500, Van Passenger ExtendedFACTORY OEM SERVICE PROCEDURE
Installation Procedure

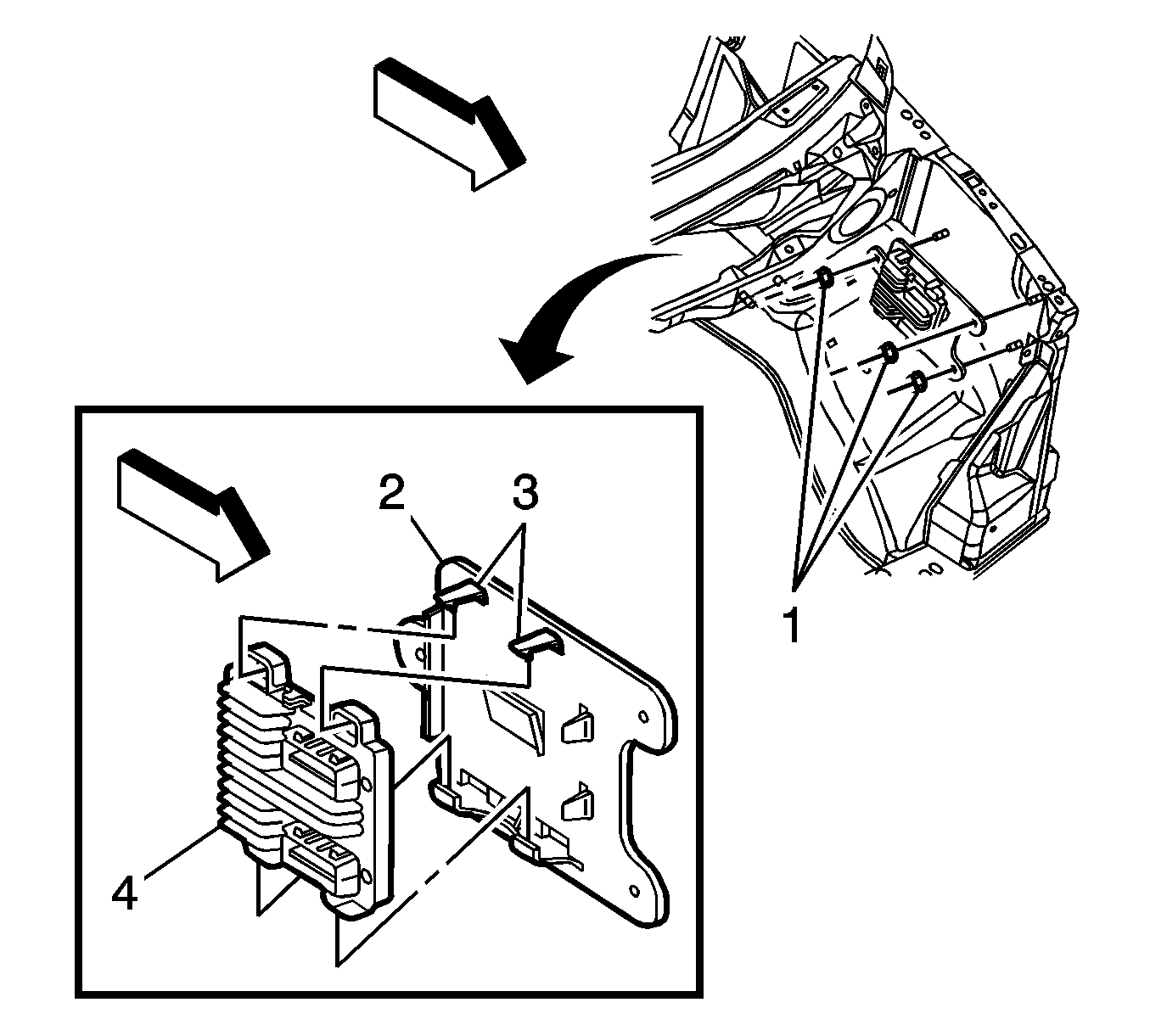

- Install the ECM (4) to the ECM bracket tabs (2).
- Ensure that the ECM bracket tabs (3) fully engage the ECM.

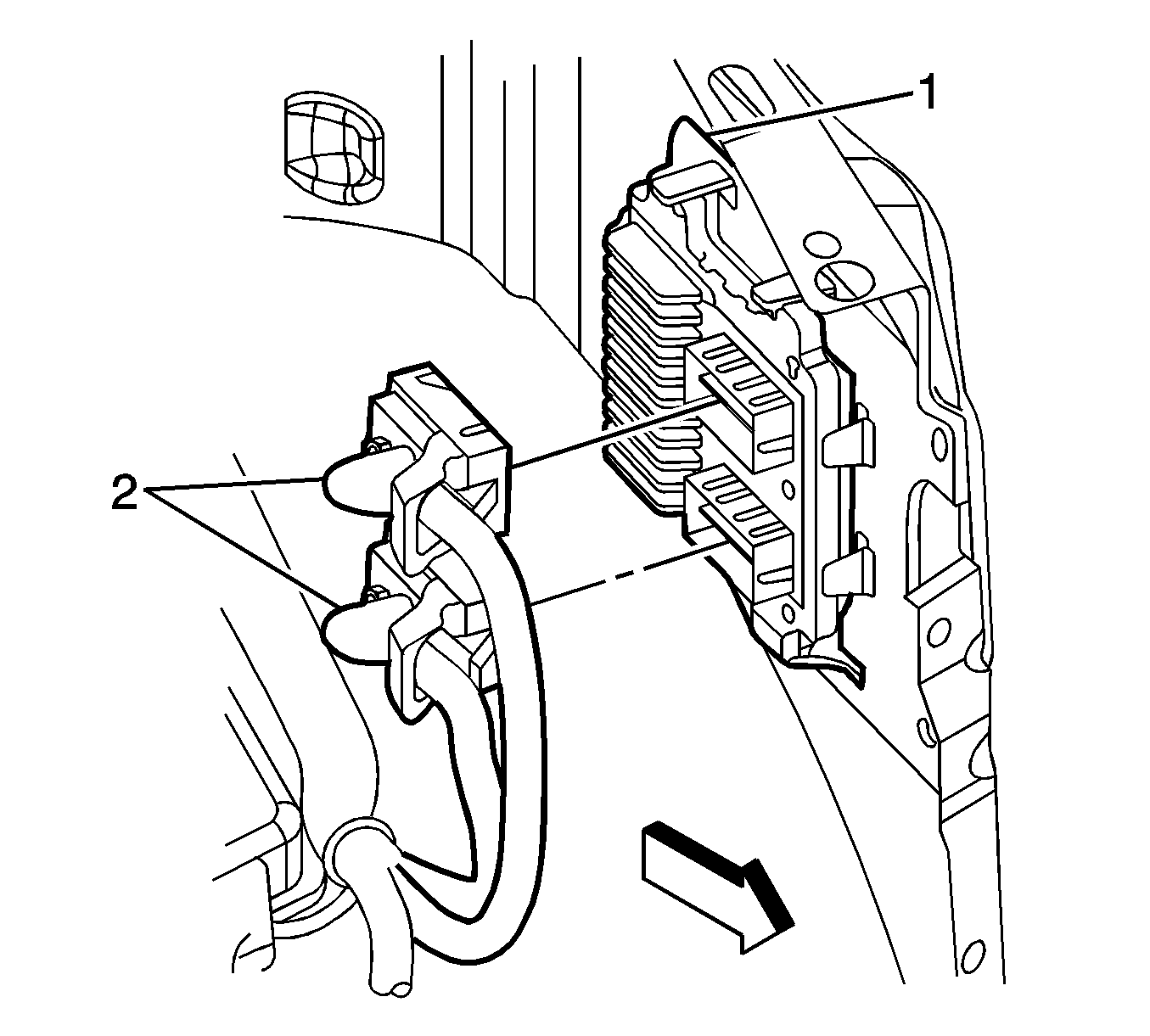

- Connect the engine wiring harness electrical connectors (2) to the ECM (1).
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
- If a new ECM was installed, program the ECM. Refer to Control Module References .
- Using a scan tool, set the remaining engine oil life.
