2008 Chevrolet Chevy Express G3500, Van Passenger ExtendedFACTORY OEM SERVICE PROCEDURE

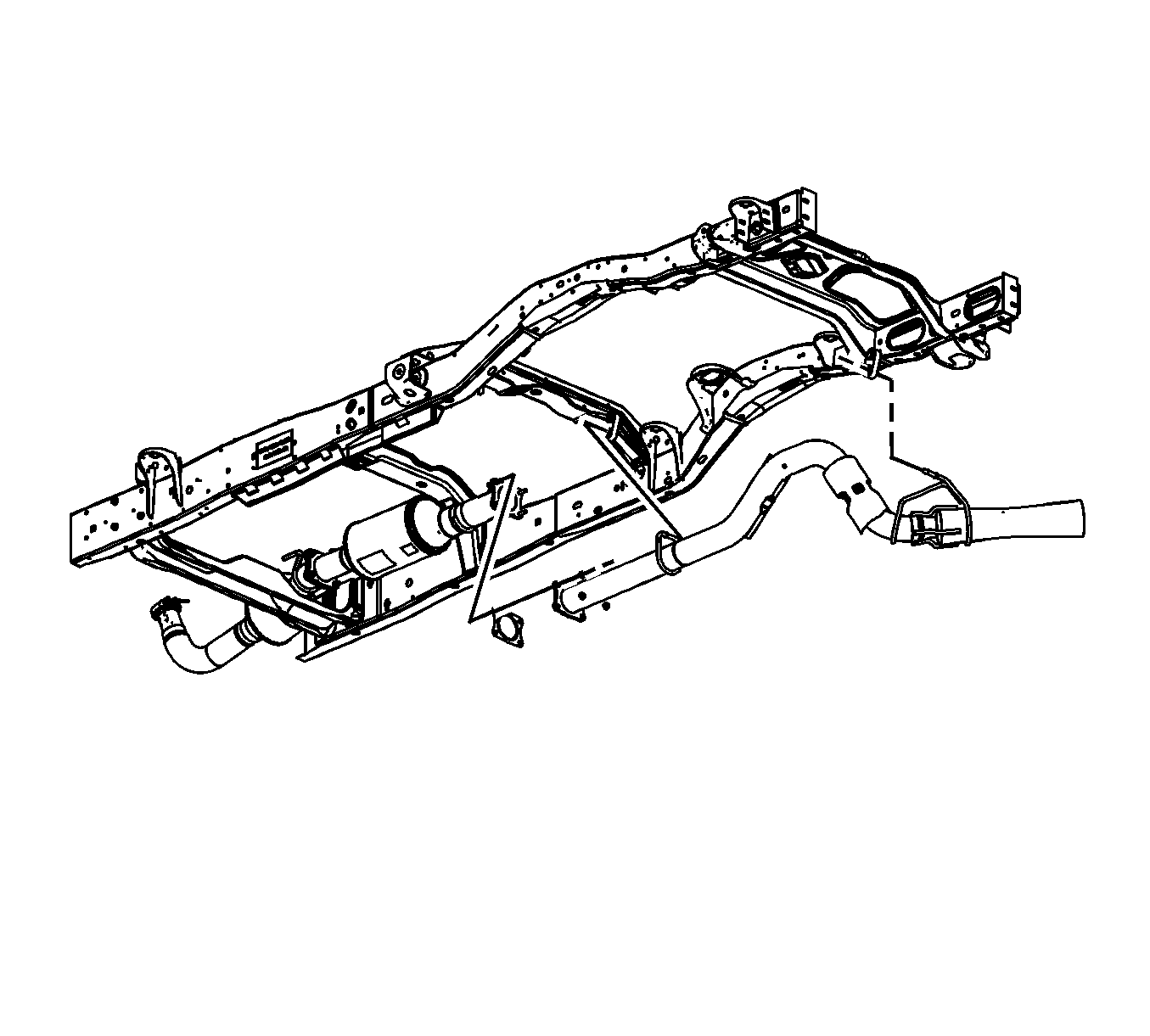

Removal Procedure
- Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the spare tire, if necessary.
- Remove the exhaust particulate filter to tail pipe nuts.
- With the aid of an assistant, separate the tail pipe hangers from the insulators and remove the exhaust tail pipe.
