2008 Chevrolet Chevy Express G3500, Van Passenger ExtendedFACTORY OEM SERVICE PROCEDURE

Radio X1

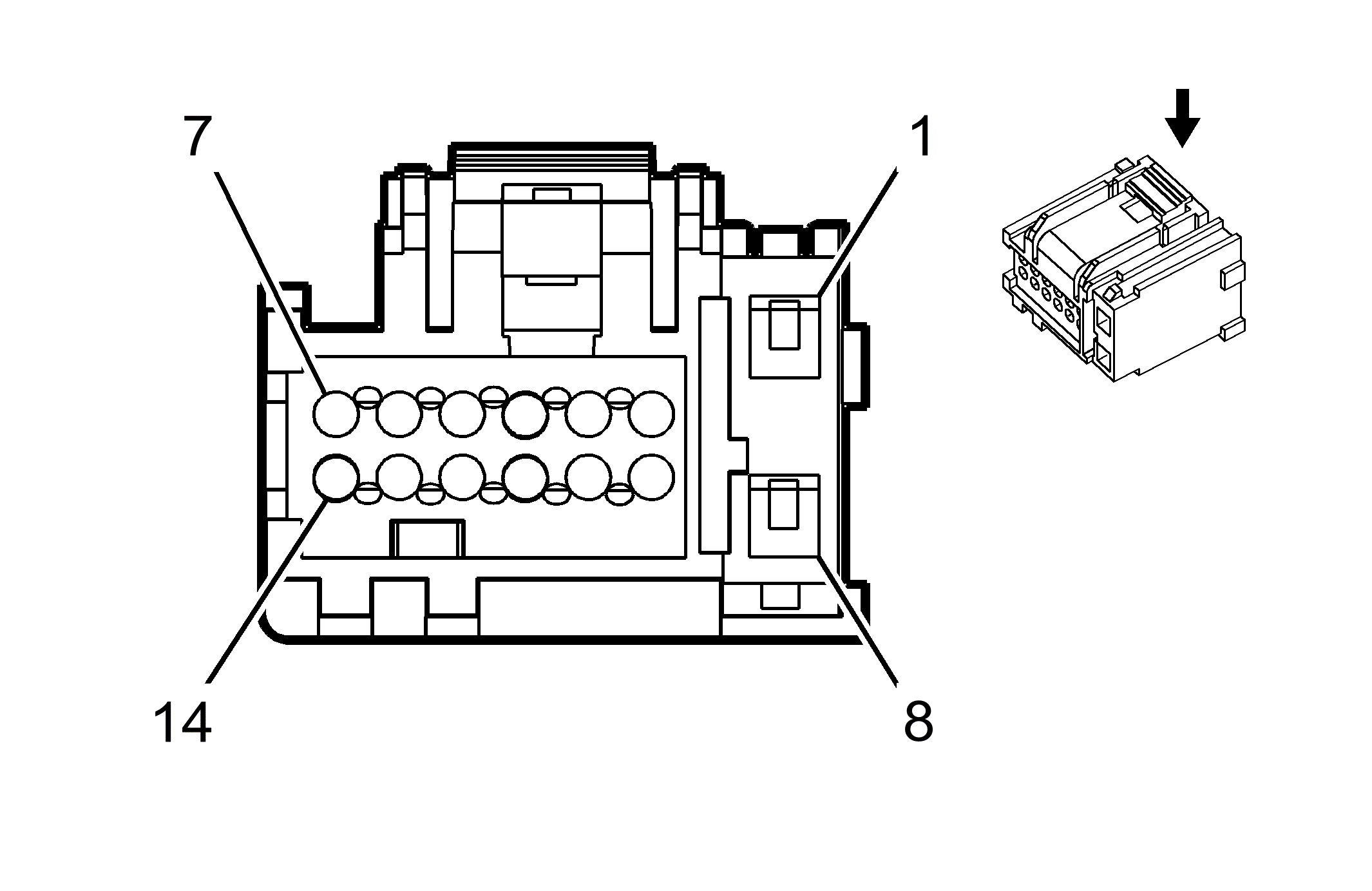

Fig 1: Radio X1 Connector End View
GM1590072Courtesy of GENERAL MOTORS CORP.
Radio X1

Pin Wire Circuit Function
1 1 RD/WH 340 Battery Positive Voltage
2 0.8 D-BU 1857 Left Front Midrange Speaker Output (+)
3 0.8 OG 1853 Right Front Midrange Speaker Output (+)
4-6 - - Not Used
7 0.35 YE 6817 LED Backlight Dimming Control
8 1 BK/WH 351 Ground
9 0.8 L-BU 1957 Left Front Midrange Speaker Output (-)
10 0.8 D-GN 1953 Right Front Midrange Speaker Output (-)
11-12 - - Not Used
13 0.35 D-GN 5060 Low Speed GMLAN Serial Data
14 - - Not Used
Connector Part Information
  • OEM: 15464950
  • Service: See Catalog
  • Description: 14-Way F GT 150 Micro 64 Modular (BK)
Terminal Part Information
  • Pins: 1, 8
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: 2, 3, 7, 7, 9, 10, 13
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
