2008 Chevrolet Chevy Express G3500, Van Passenger ExtendedFACTORY OEM SERVICE PROCEDURE

Electronic Brake Control Module (EBCM) (-JL4)

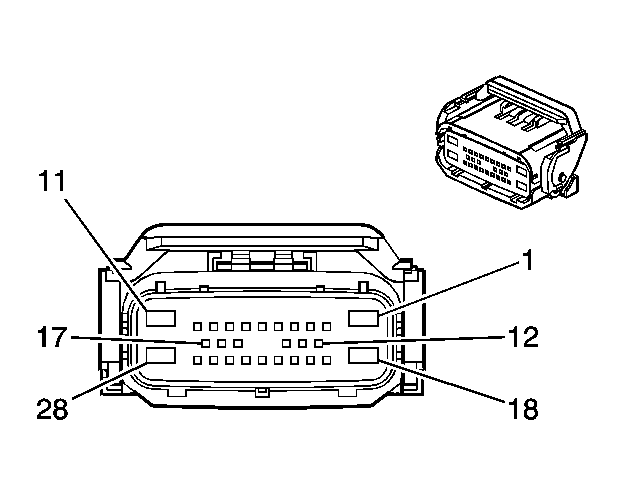

Fig 1: Electronic Brake Control Module (EBCM) (-JL4) Connector End View
GM1715241Courtesy of GENERAL MOTORS CORP.
Electronic Brake Control Module (EBCM) (-JL4)

Pin Wire Circuit Function
1 3 RD/WH 1640 Battery Positive Voltage
2 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus (+)
3 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus (+)
4-10 - - Not Used
11 3 BK 2150 Ground
12 0.5 TN 2501 High Speed GMLAN Serial Data Bus (-)
13 0.5 TN 2501 High Speed GMLAN Serial Data Bus (-)
14 - - Not Used
15 0.5 L-BU 830 Left Front Wheel Speed Sensor Signal
16 0.5 YE 873 Low Reference
17 - - Not Used
18 5 RD/BK 442 Battery Positive Voltage
19 0.5 L-BU 5986 Serial Data Communication Enable
20 0.5 YE/BK 1827 Vehicle Speed Signal
21-25 - - Not Used
26 0.5 D-GN 872 Right Front Wheel Speed Sensor Signal
27 0.5 TN 833 Low Reference
28 5 BK 2150 Ground
Connector Part Information
  • OEM: 15491267
  • Service: 19149286
  • Description: 28-Way F Kaizen 0.64 Series (BK)
Terminal Part Information
  • Pins: 2, 3, 12, 13, 15, 16, 19, 20, 26, 27
  • Terminal/Tray: 7116-3703-02
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: 1, 11, 18, 28
  • Terminal/Tray: 7116-4142-02/10
  • Core/Insulation Crimp: Pins 1, 11 - A/3
  • Core/Insulation Crimp: Pins 18, 28 - D/3
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
