2008 Chevrolet Chevy Express G3500, Van Passenger ExtendedFACTORY OEM SERVICE PROCEDURE
Installation Procedure

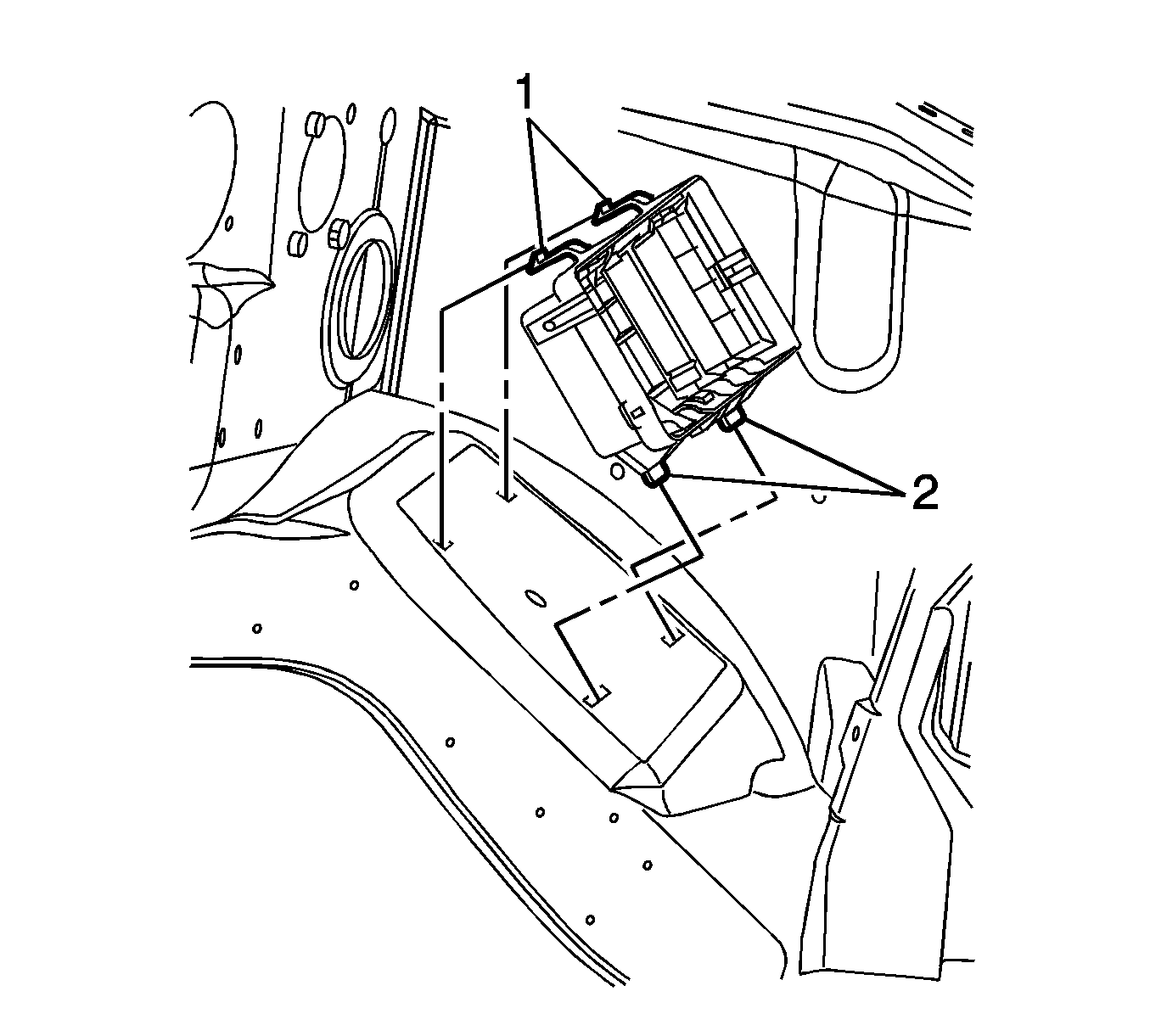

- Install the junction block base by sliding tabs (2) in and pressing in tabs (1) until they are locked.

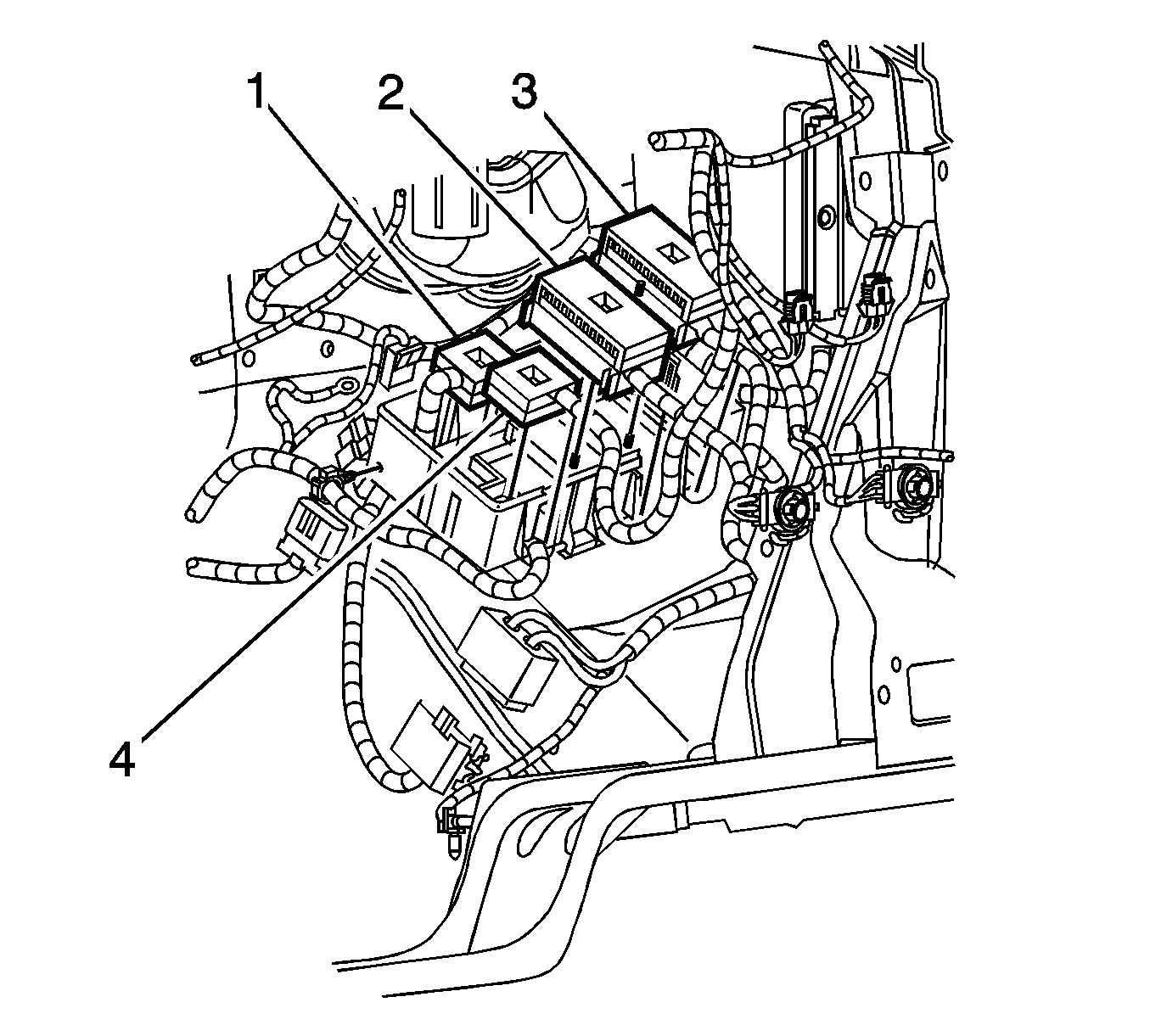

- Install into the junction block base the Chassis Harness (1), the I/P Harness (2), the Engine Harness (3), and the Forward LP Harness (4).

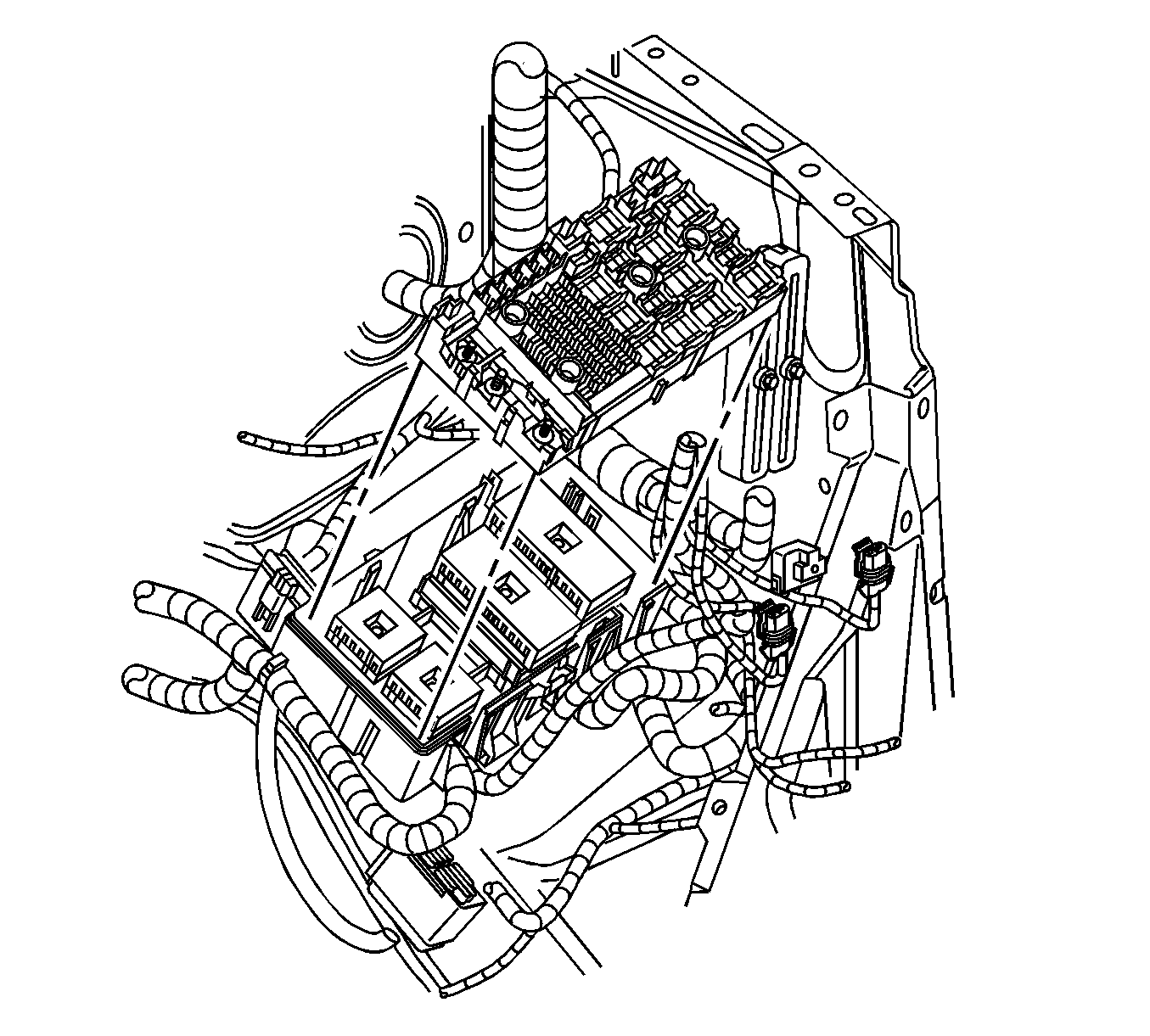

- Install the fuse relay center into the junction block.
- Install the fuse block center bolts.
- Install the harness ends on the fuse block relay center.
- Install the harness end nuts (2).

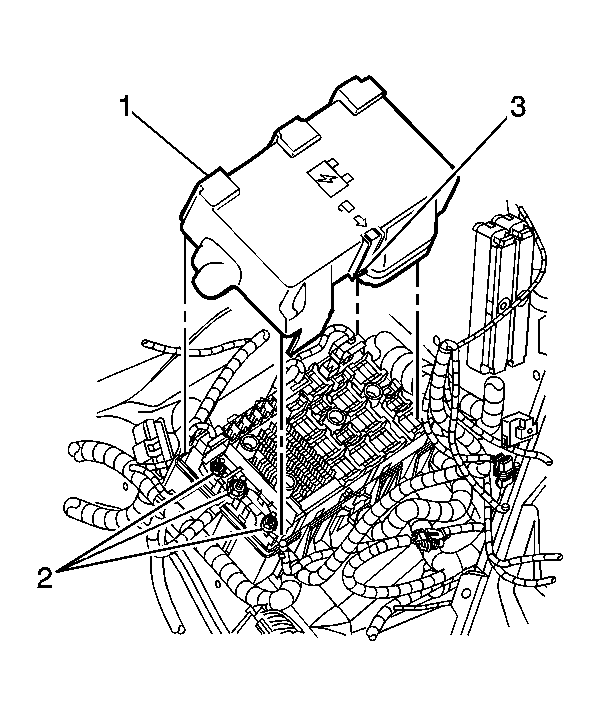

- Install the junction block cover (1) the tabs (3) should lock.
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection in Engine Electrical.
