2008 Chevrolet Chevy Express G3500, Van Passenger ExtendedFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .

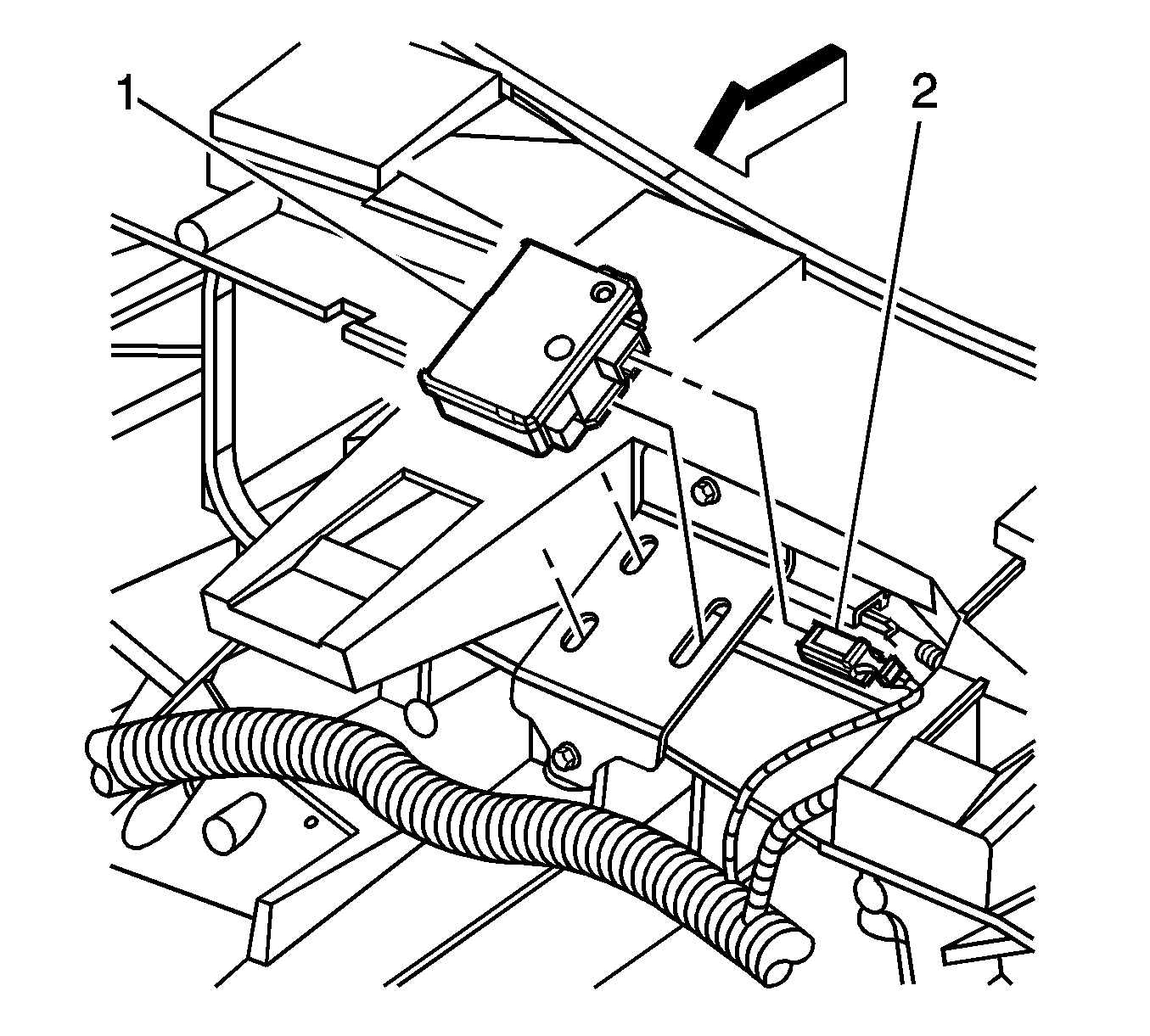

- Disconnect the electrical connector (2) from the door lock receiver (1).
- Disengage the remote control door lock receiver (1) from the door lock receiver bracket.
- Remove the door lock receiver.
