2008 Chevrolet Chevy Express G2500, Van Cargo, 6.6 6FACTORY OEM SERVICE PROCEDURE
HVAC Control Module Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

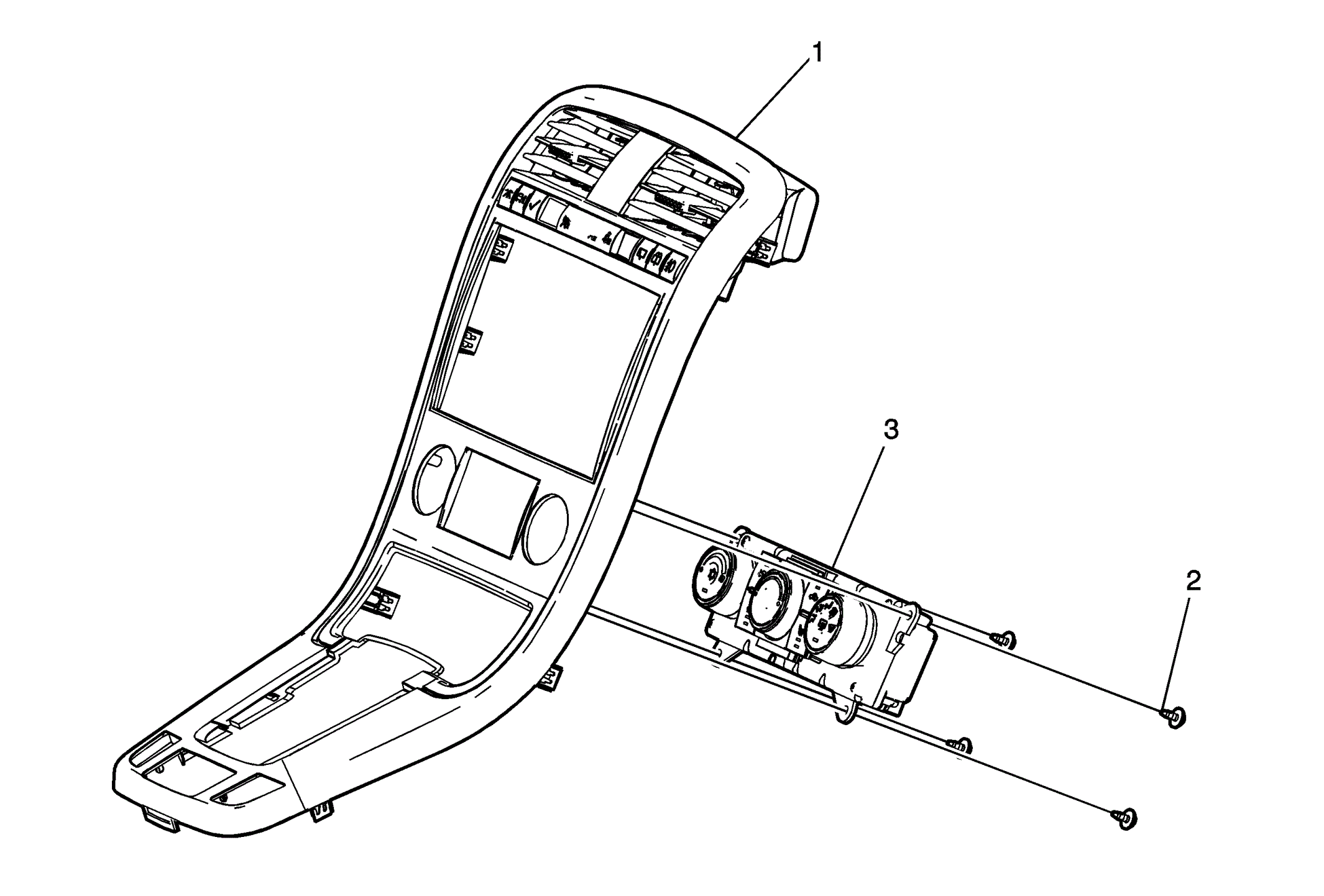

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Accessory Trim Bezel Refer to Instrument Panel Accessory Bezel Replacement (with U61) or Instrument Panel Accessory Bezel Replacement (without U61) . |
| 2 | HVAC Control Assembly Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 1.5 N.m (13 lb in) |
| 3 | HVAC Control Assembly Procedure: Reprogram the HVAC control module. Refer to Control Module References . |
