Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 1

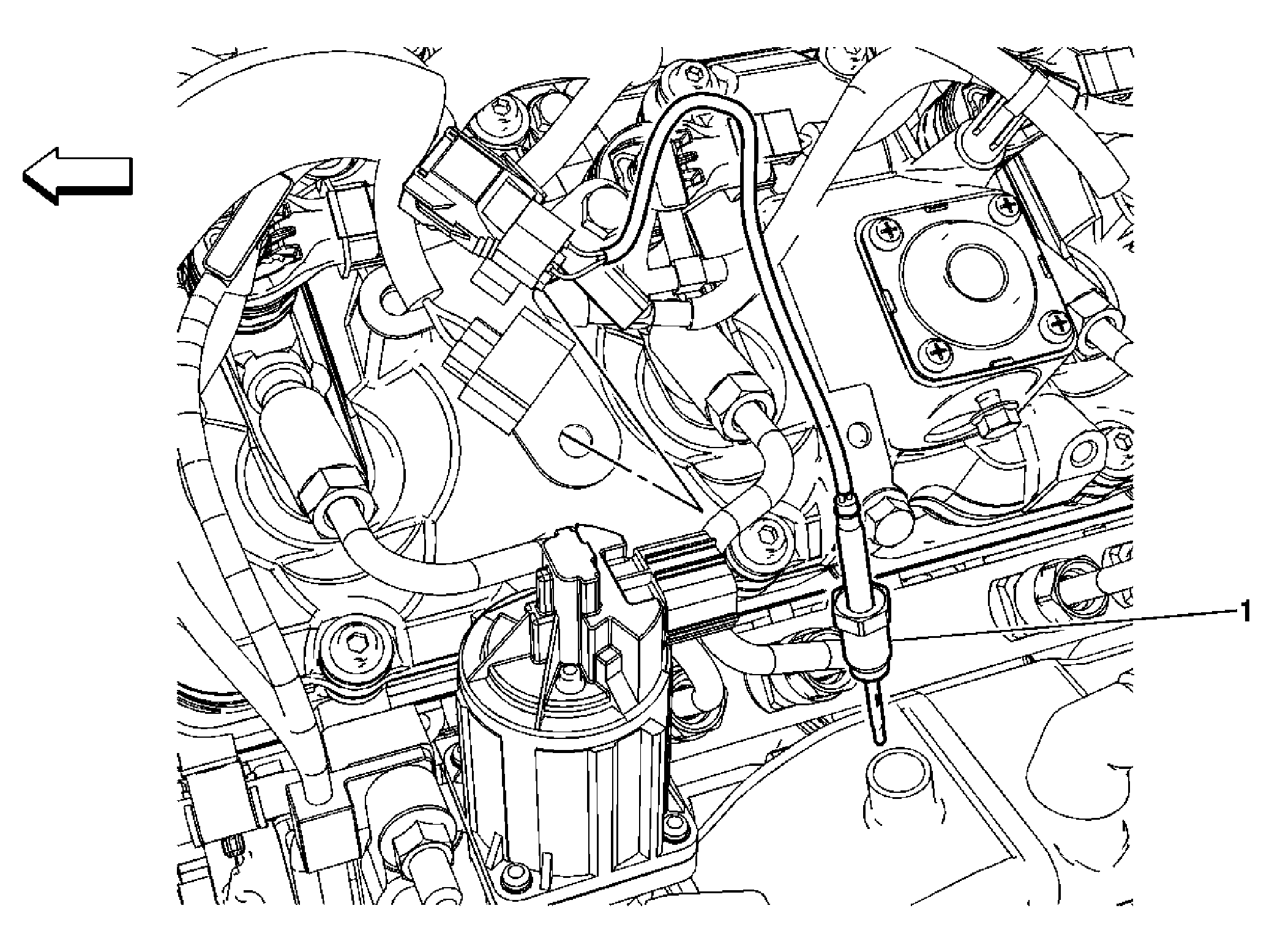

| Callout | Component Name |
|---|---|
|
|
| 1 | EGR Temperature Sensor Assembly
NOTE:
Refer to Fastener Notice
.
Tighten: 44 N.m (32 lb ft) Procedure
|
