Steering Wheel Control Switch Assembly Replacement

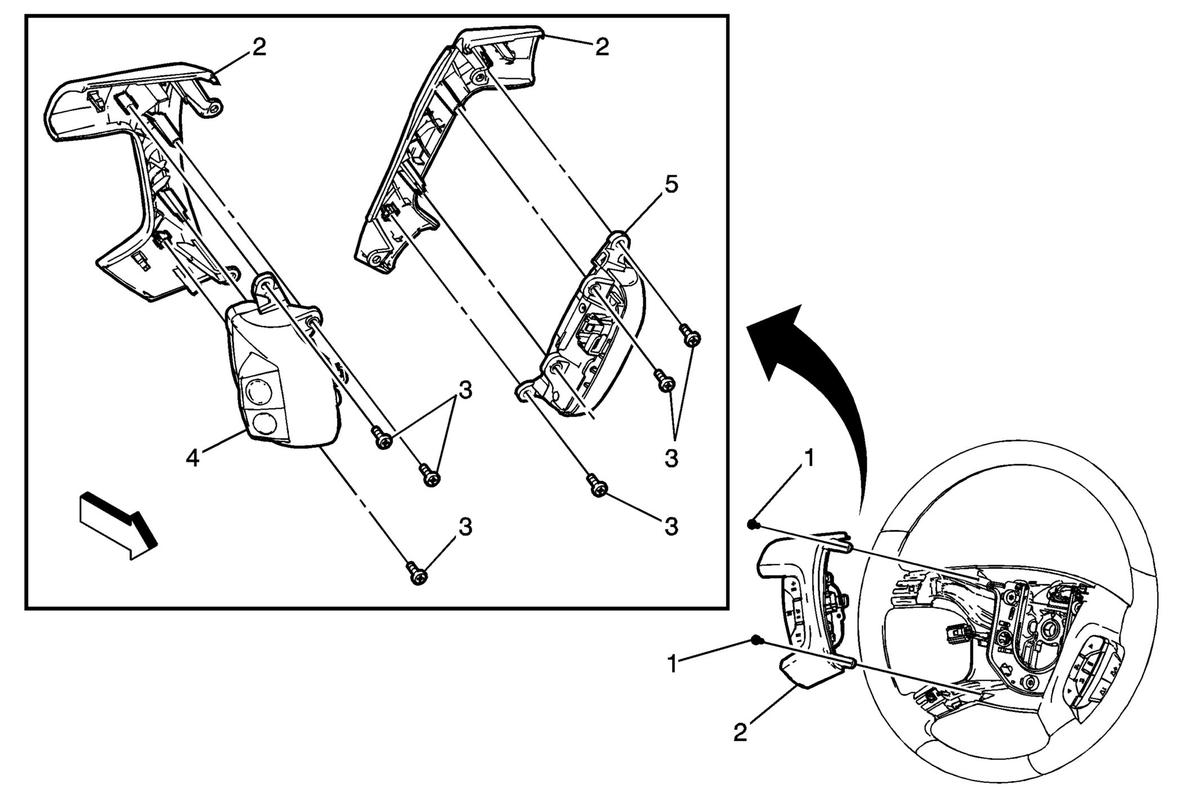

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement . |
|
| 1 | Steering Wheel Trim Plate Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Steering Wheel Trim Plate (Qty: 2) |
| 3 | Radio Control Screw (Qty: 6)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 4 | Radio Control Switch Assembly Procedure
|
| 5 | Cruise Control Switch Assembly Procedure
|
