2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Passenger Compartment/Roof Component Views

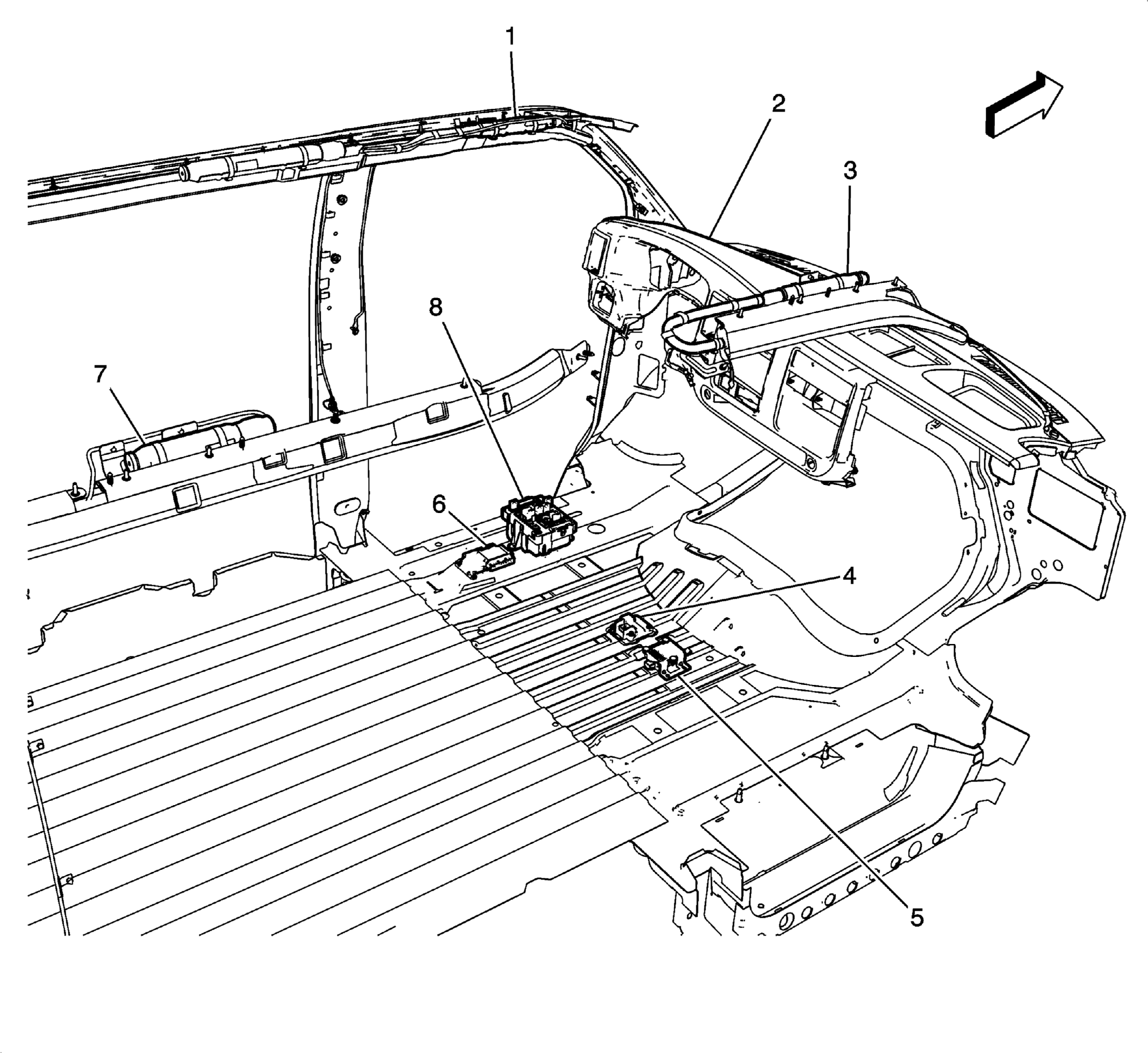

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Roof Rail Module - Left Rear (ASF +YA2) |
| 2 | Inflatable Restraint Roof Rail Module - Left Front (ASF) |
| 3 | Instrument Panel - Upper Pad |
| 4 | Inflatable Restraint Roof Rail Module - Right Front (ASF) |
| 5 | Rollover Sensor |
| 6 | Yaw and Lateral Acceleration Sensor (JL4) |
| 7 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 8 | Inflatable Restraint Roof Rail Module - Right Rear (ASF +YA2) |

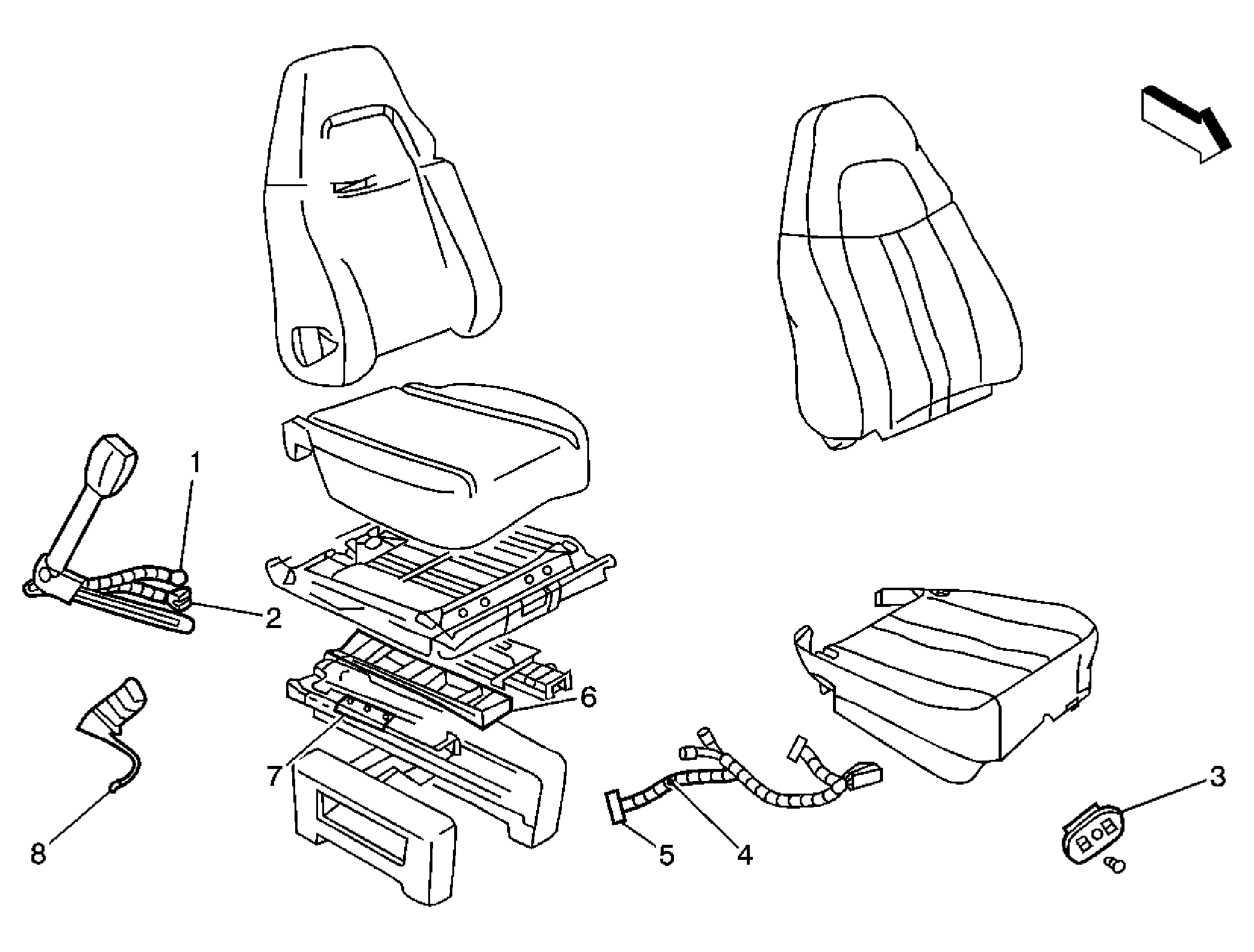

| Callout | Component Name |
|---|---|
| 1 | Seat Belt Buckle Driver - C1 (Light Duty) |
| 2 | Seat Belt Buckle Driver - C2 (Light Duty) |
| 3 | Seat Adjuster Switch - Driver (AG1) |
| 4 | S304 (AG1) |
| 5 | C307 |
| 6 | Seat Motors - Driver (AG1) |
| 7 | Inflatable Restraint Seat Position Sensor (SPS) - Left (Light Duty) |
| 8 | Seat Belt Buckle Connector - Driver (Heavy Duty) |

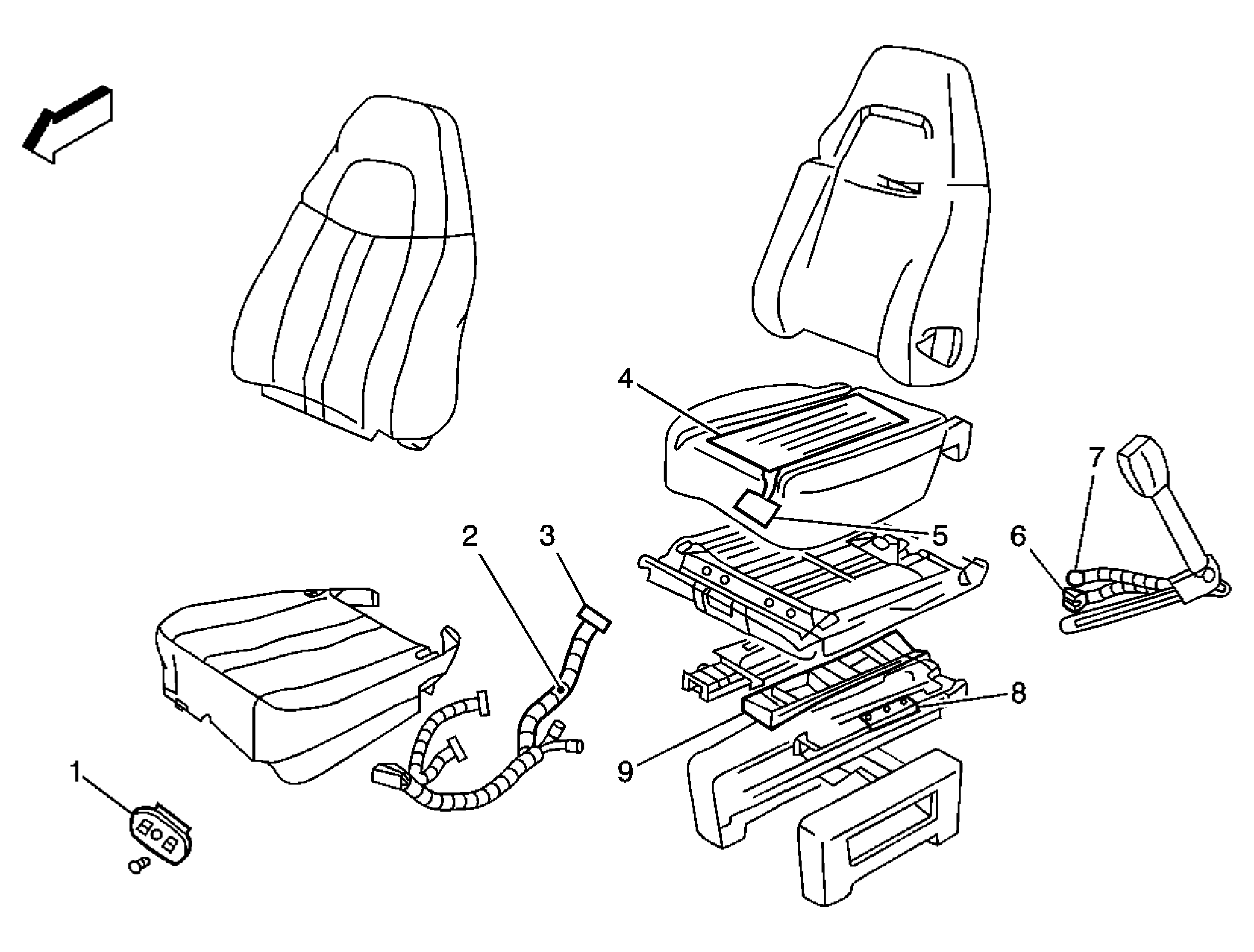

| Callout | Component Name |
|---|---|
| 1 | Seat Adjuster Switch - Passenger (AG2) |
| 2 | S317 (Light Duty w/AG2) |
| 3 | C306 |
| 4 | Inflatable Restraint Passenger Presence System (PPS) Sensor (Light Duty w/o YF7) |
| 5 | Inflatable Restraint Passenger Presence System (PPS) Module (Light Duty w/o YF7) |
| 6 | Seat Belt Buckle Passenger - C2 (Light Duty) |
| 7 | Seat Belt Buckle Passenger - C1 (Light Duty) |
| 8 | Inflatable Restraint Seat Position Sensor (SPS) - Right (Light Duty) |
| 9 | Seat Motors - Passenger (AG2) |

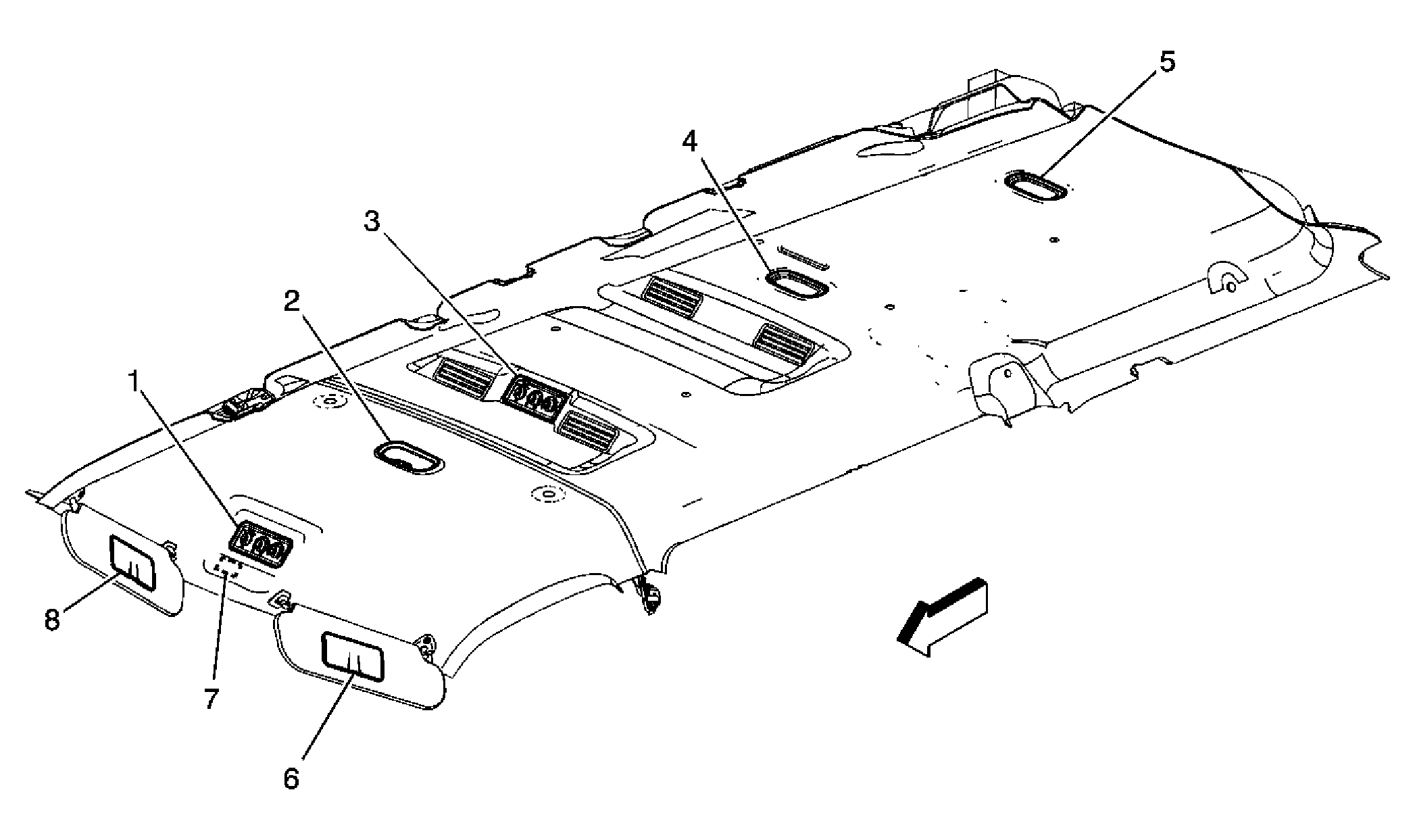

| Callout | Component Name |
|---|---|
| 1 | HVAC Control Assembly - Front Auxiliary (C69) |
| 2 | Courtesy /Reading Lamp - Front |
| 3 | HVAC Control Assembly - Rear Auxiliary (C69 w/Rear Auxiliary Controls) |
| 4 | Courtesy /Reading Lamp - Mid (Passenger) |
| 5 | Courtesy /Reading Lamp - Rear (Passenger)/Dome Lamp - Rear (Cargo) |
| 6 | Vanity Mirror - Right (DH6) |
| 7 | HVAC Control Processor - Auxiliary (C69 w/Rear Auxiliary Controls) |
| 8 | Vanity Mirror - Left (DH6) |
