2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Instrument Panel/Center Console Component Views

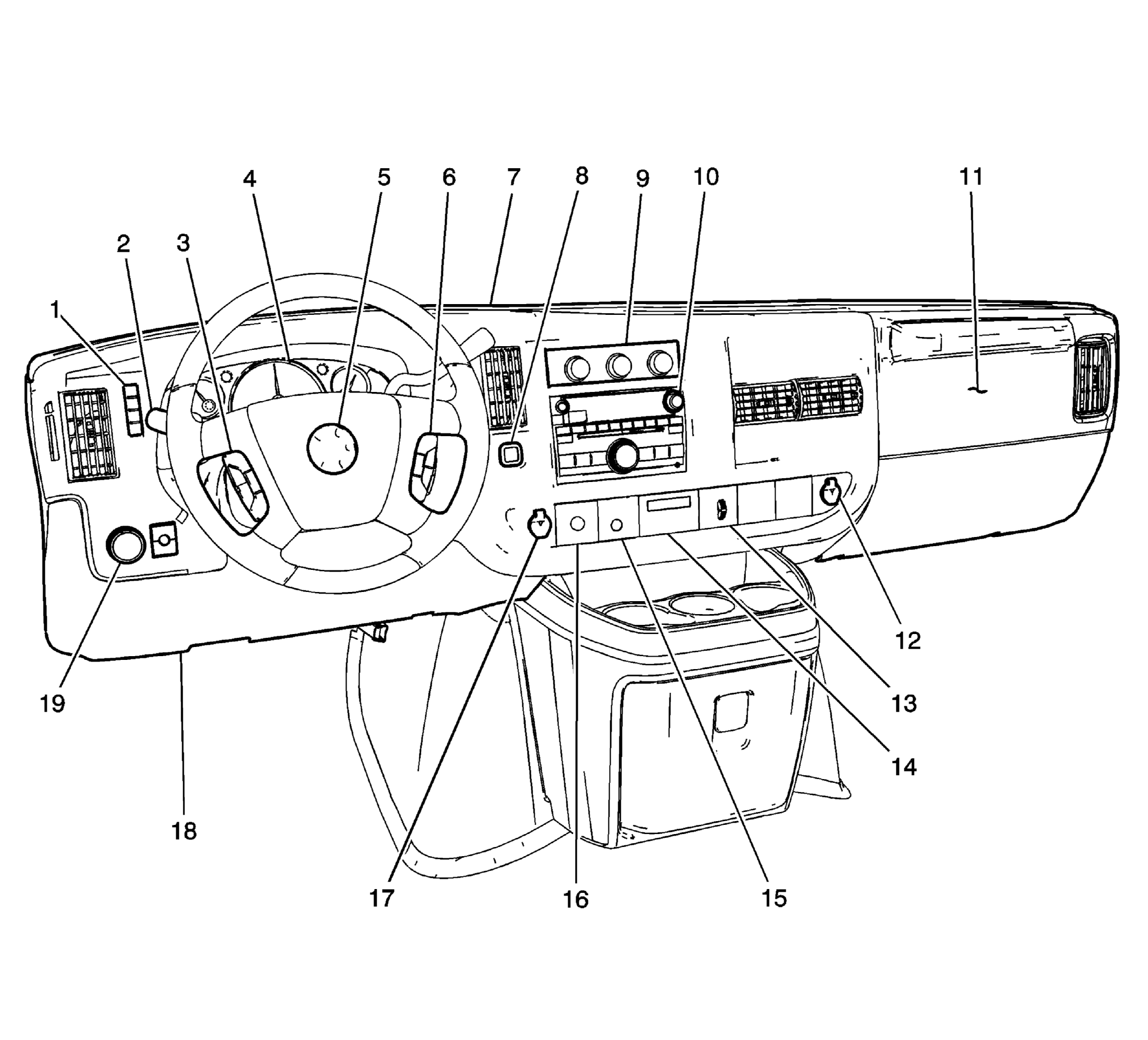

| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Driver Information Center (DIC) |
| 3 | Steering Wheel Controls - Left (K34) |
| 4 | Instrument Panel Cluster (IPC) |
| 5 | Inflatable Restraint Steering Wheel Module |
| 6 | Steering Wheel Controls - Right (W1Y) |
| 7 | Instrument Panel |
| 8 | Tow/Haul Switch |
| 9 | HVAC Control Assembly |
| 10 | Radio |
| 11 | Inflatable Restraint Instrument Panel Module |
| 12 | Instrument Panel Compartment Lamp |
| 13 | Auxiliary Power Outlet 2 |
| 14 | Blower Motor Switch - Auxiliary (C36 -C69) |
| 15 | Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator |
| 16 | Inflatable Restraint Instrument Panel Module Disable Switch |
| 18 | Auxiliary Power Outlet 1 |
| 19 | Data Link Connector (DLC) |
| 20 | Headlamp Dimmer Switch |
| 21 | Headlamp Switch |

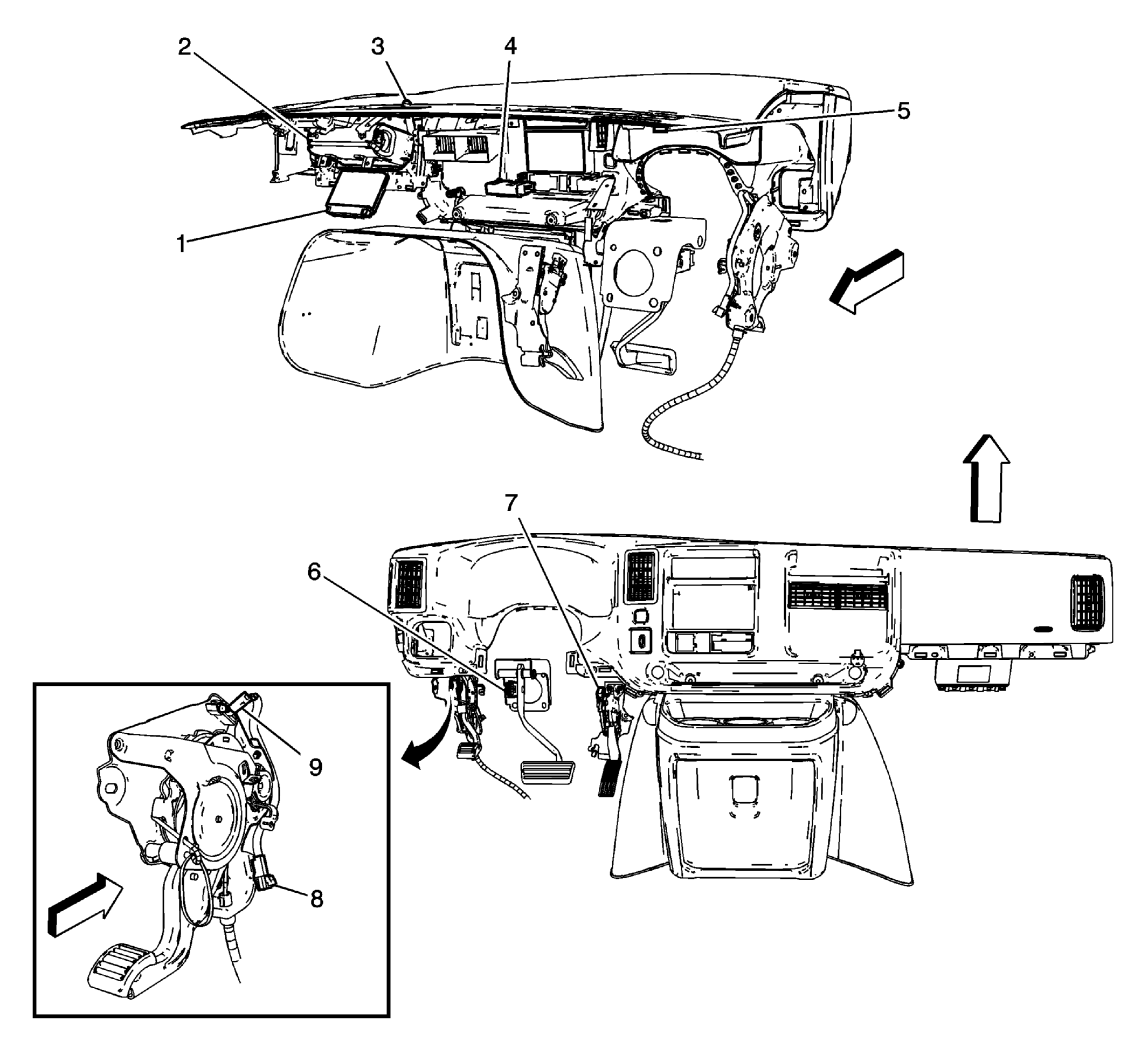

| Callout | Component Name |
|---|---|
| 1 | Body Control Module (BCM) |
| 2 | Inflatable Restraint Instrument Panel Module |
| 3 | Headlamp Sensor |
| 4 | Chime Module (UL5) |
| 5 | Lighting Control Module (Flasher Module) |
| 6 | Remote Control Door Lock Receiver (RCDLR) (AU0) |
| 7 | Brake Switch |
| 8 | Accelerator Pedal Position (APP) Sensor (Except 4.3L) |
| 9 | Park Brake Switch Pigtail Connector |
| 10 | Park Brake Switch |

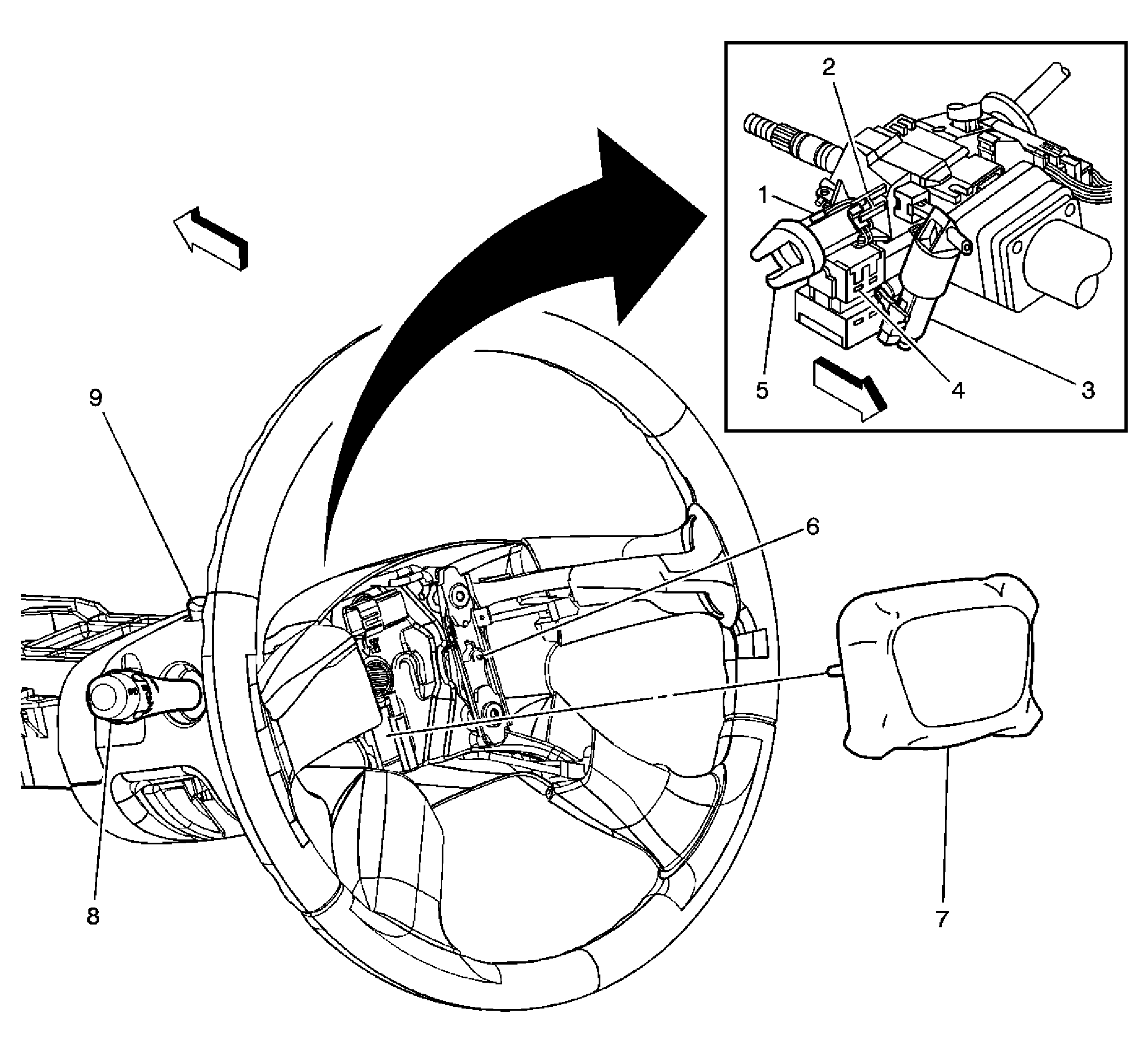

| Callout | Component Name |
|---|---|
| 1 | Passlock Sensor |
| 2 | Ignition Key Alarm Switch |
| 3 | Ignition Lock Cylinder Control Actuator |
| 4 | Ignition Switch |
| 5 | Ignition Key Cylinder |
| 6 | Horn Switch |
| 7 | Inflatable Restraint Steering Wheel Module |
| 8 | Turn Signal/Multifunction Switch |
| 9 | Hazard Switch |

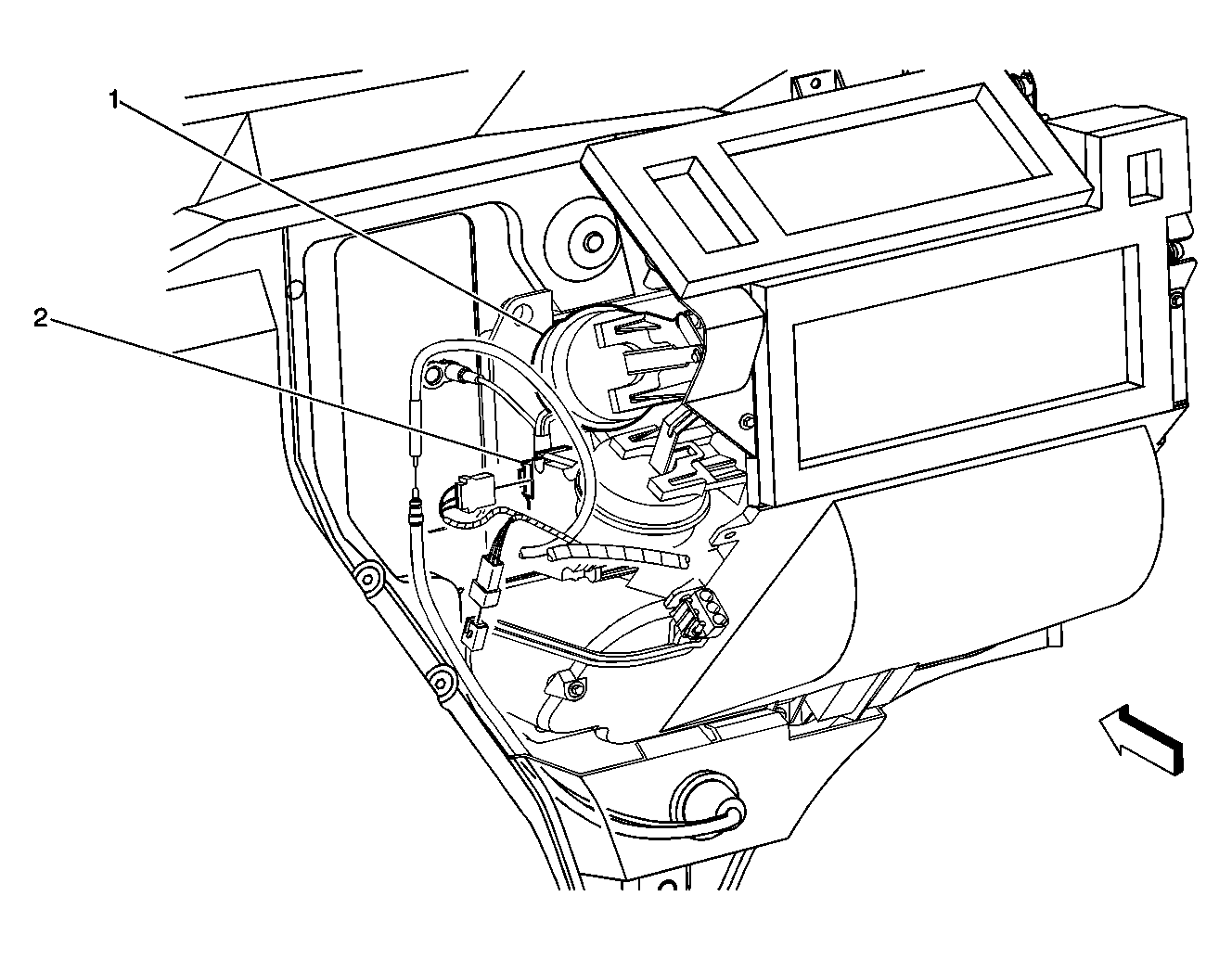

| Callout | Component Name |
|---|---|
| 1 | Recirculation Actuator |
| 2 | Air Temperature Actuator |
