2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

Front of Vehicle/Engine Compartment Component Views

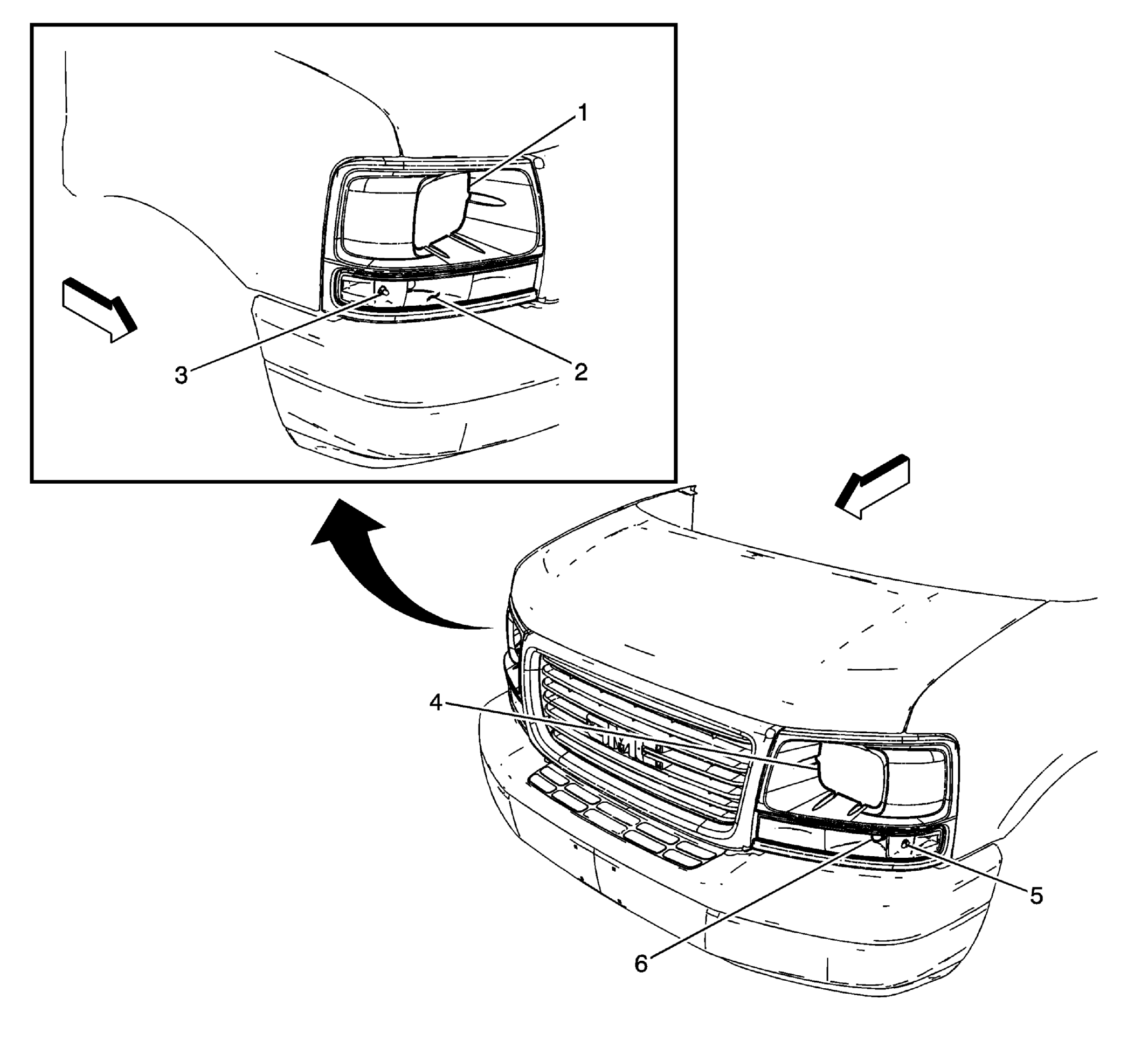

Fig 1: Front Exterior Lighting (Base)
GM1973004Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Right (Sealed)
2 Park/Turn Signal Lamp - Right Front
3 Marker Lamp - Right Front
4 Headlamp - Left (Sealed)
5 Marker Lamp - Left Front
6 Park/Turn Signal Lamp - Left Front

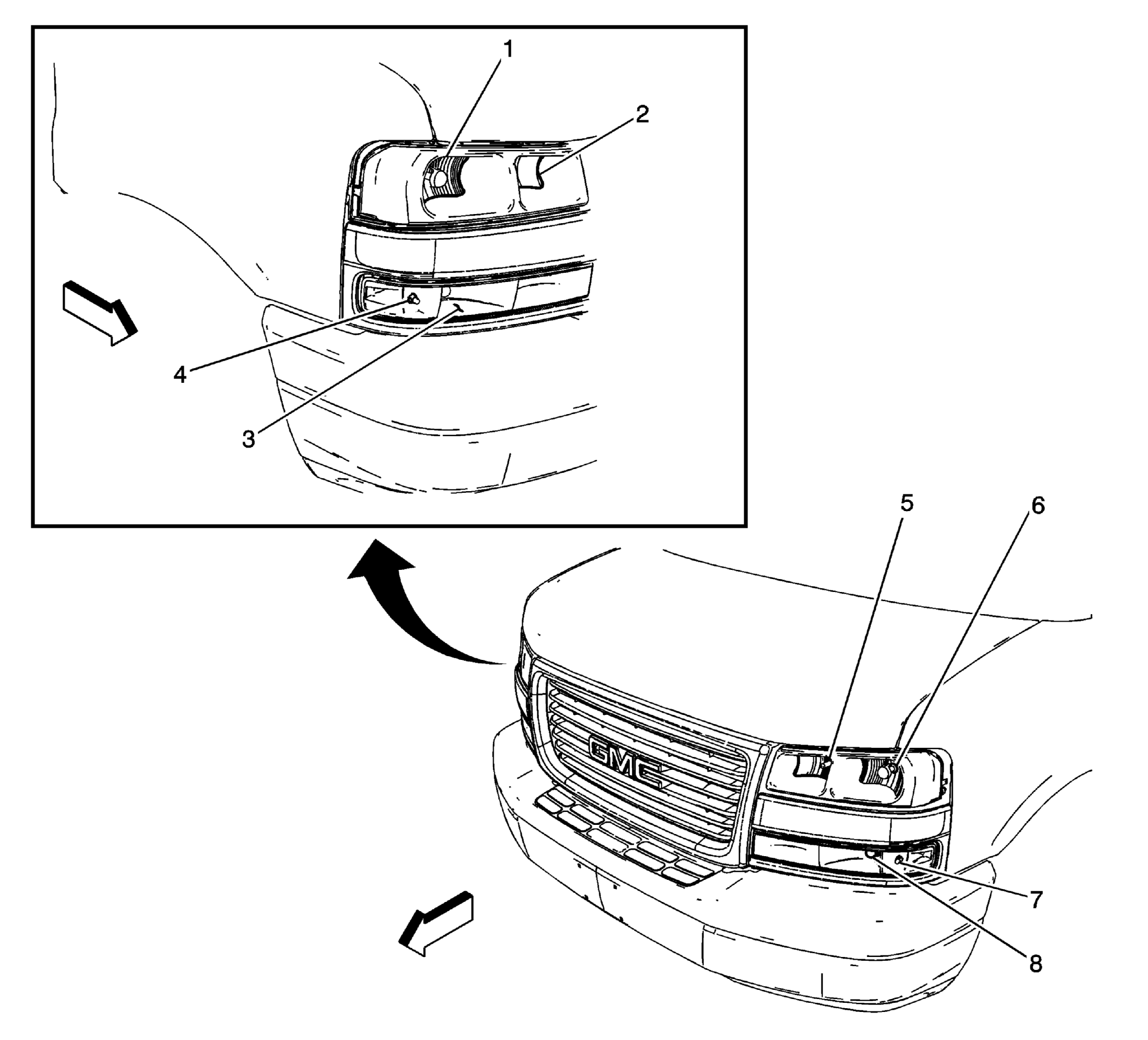

Fig 2: Front Exterior Lighting (Uplevel)
GM1972995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Low Beam - Right (Composite)
2 Headlamp - High Beam - Right (Composite)
3 Park/Turn Signal Lamp - Right Front
4 Marker Lamp - Right Front
5 Headlamp - High Beam - Left (Composite)
6 Headlamp - Low Beam - Left (Composite)
7 Marker Lamp - Left Front
8 Park/Turn Signal Lamp - Left Front

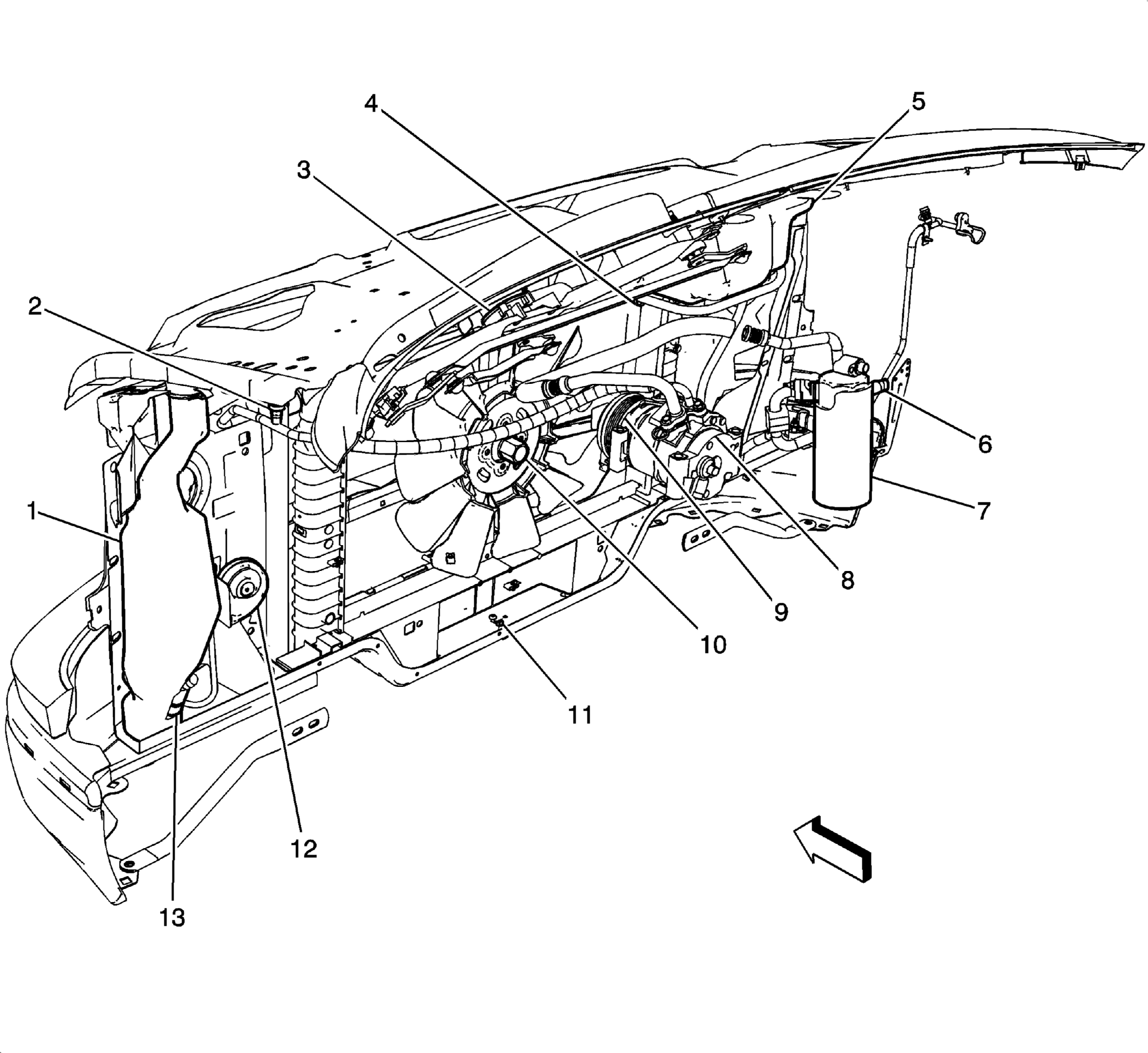

Fig 3: Front of Engine Compartment
GM1973010Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Washer Solvent Container
2 A/C Refrigerant Pressure Sensor
3 Windshield Wiper Motor
4 Coolant Level Switch
5 Coolant Surge Tank
6 A/C Low Pressure Switch
7 A/C Accumulator
8 Cooling Fan
9 Inflatable Restraint Front End Sensor
10 Dual Horn Assembly
11 Windshield Washer Fluid Pump

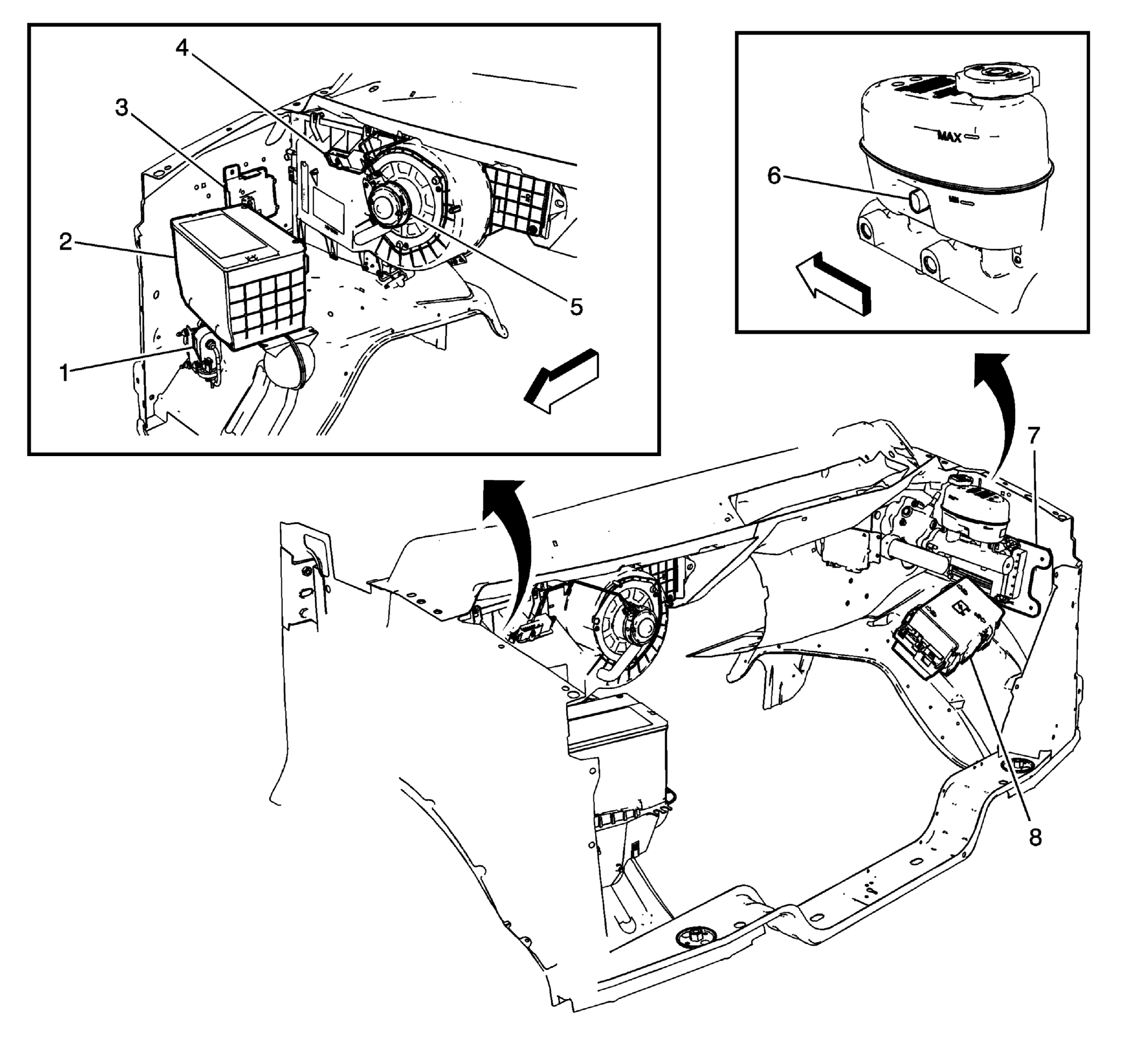

Fig 4: Engine Compartment
GM1973017Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vacuum Pump (6.6L)
2 Battery
3 Transmission Control Module (TCM)
4 Blower Motor Resistor Assembly
5 Blower Motor
6 Cruise Control Module (LU3)/Throttle Actuator Control (TAC) Module (-LU3)
7 Brake Fluid Level Switch
8 Engine Control Module (ECM)
9 Fuse Block - Underhood

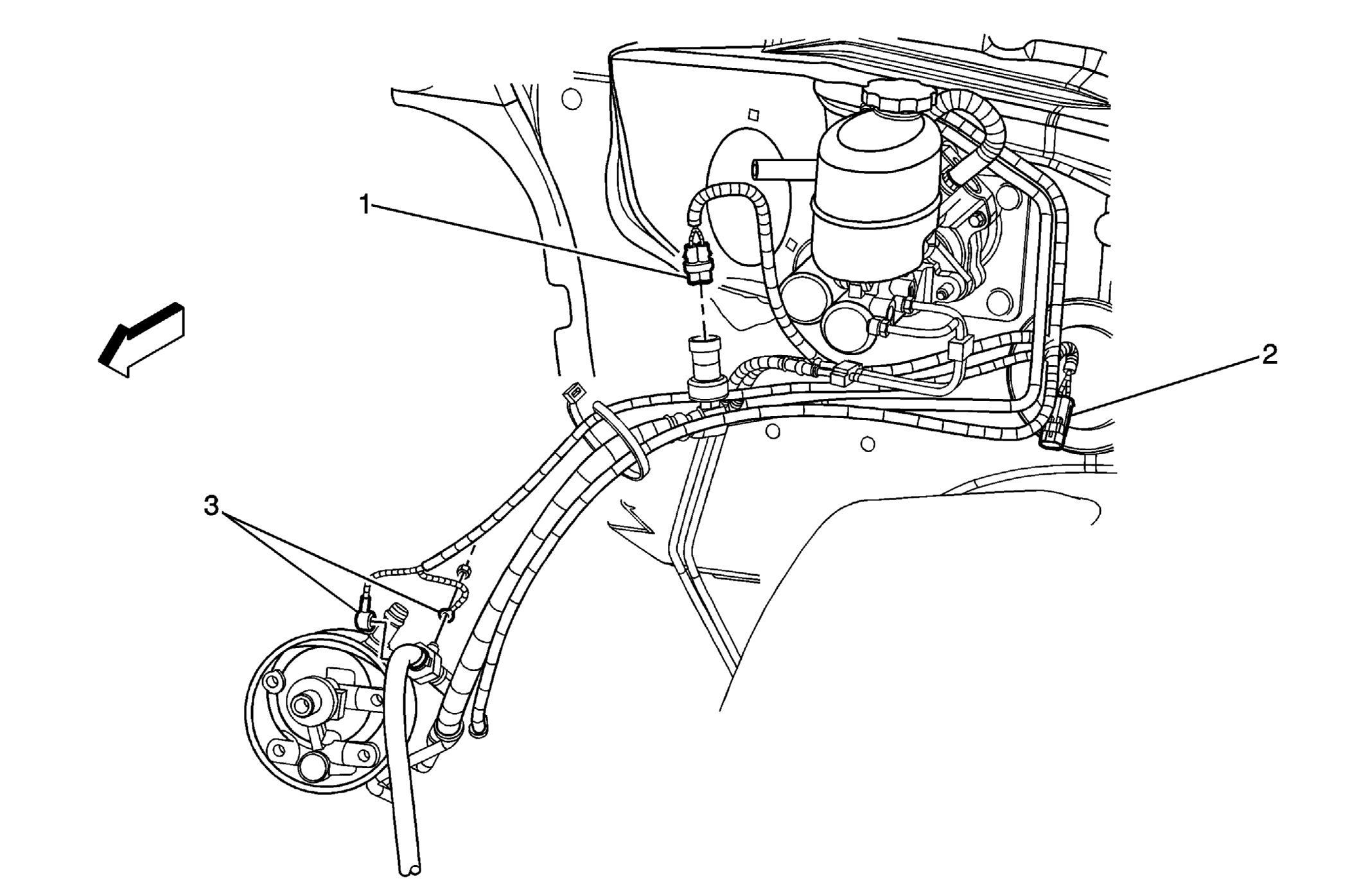

Fig 5: Power Brake (PB) Booster Fluid Alarm Switches Harness Routing (UJ1)
GM883605Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Brake (PB) Booster Fluid Pressure Alarm Switch Connector
2 C141
3 Power Brake (PB) Booster Fluid Flow Alarm Switch - C1, C2

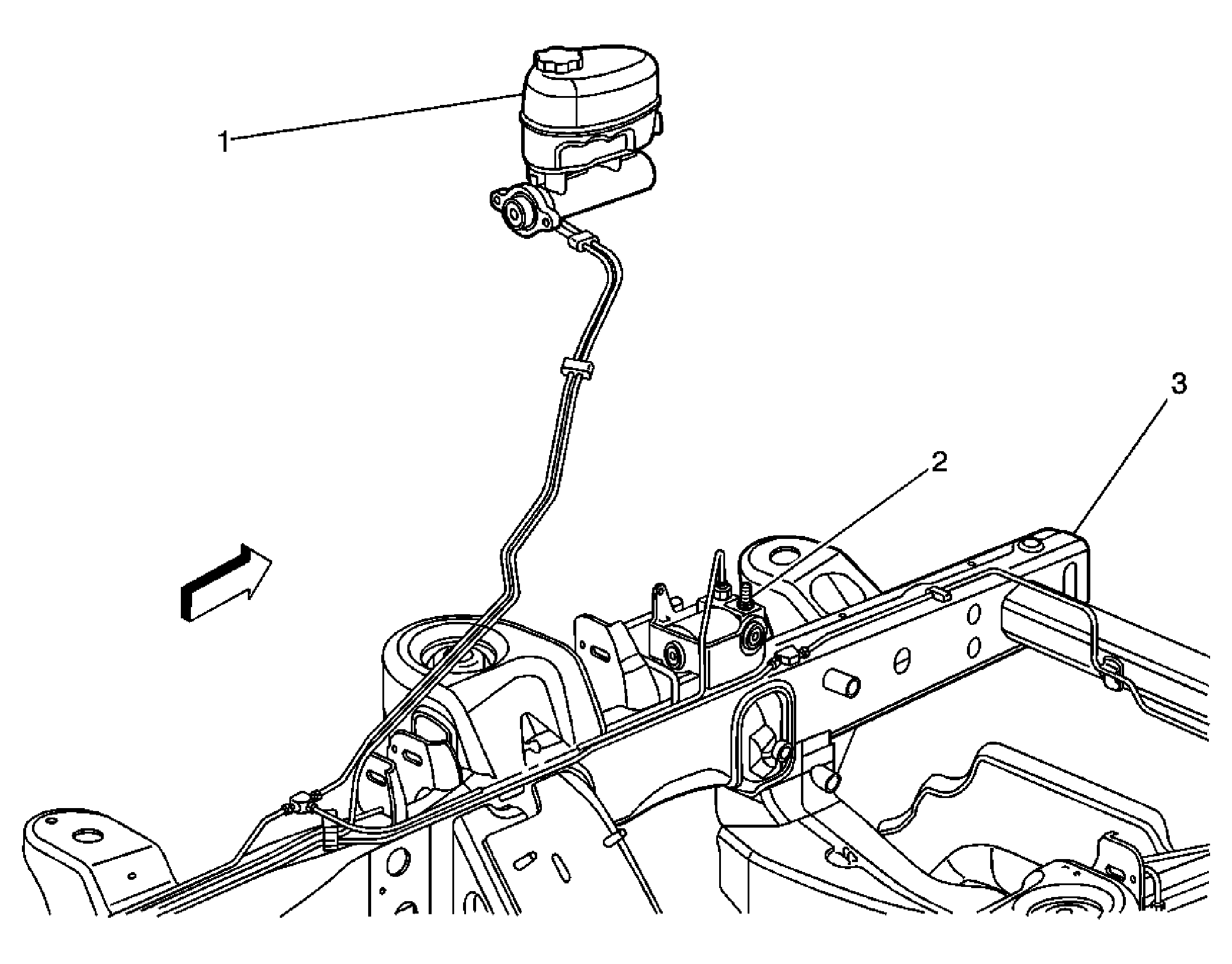

Fig 6: Component View - LF Frame (JL4)
GM1357599Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Master Cylinder Reservoir
2 Precharge Pump
3 Frame

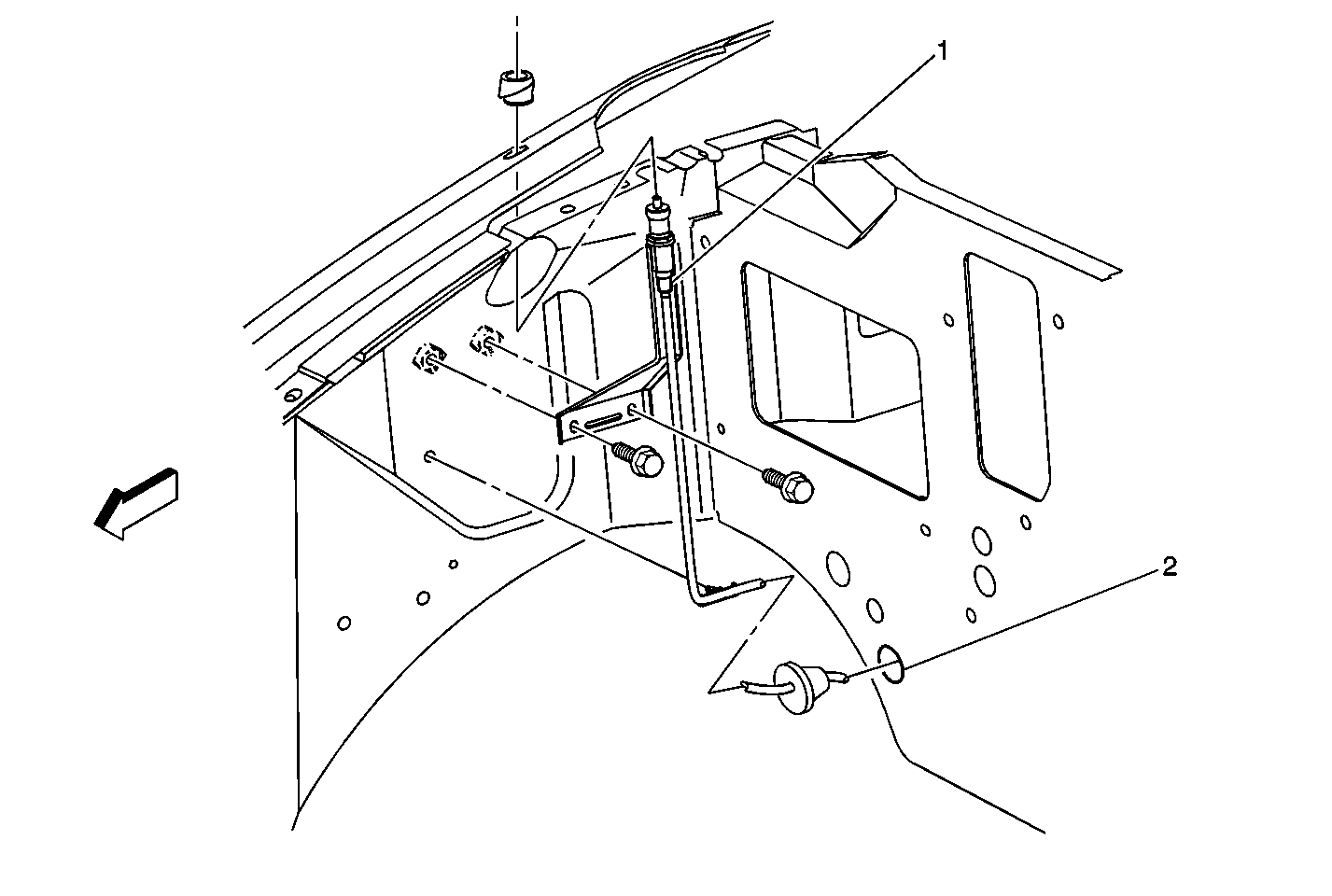

Fig 7: Component View - RR Of Engine Compartment
GM344437Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Antenna
2 Lower Cowl
