2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

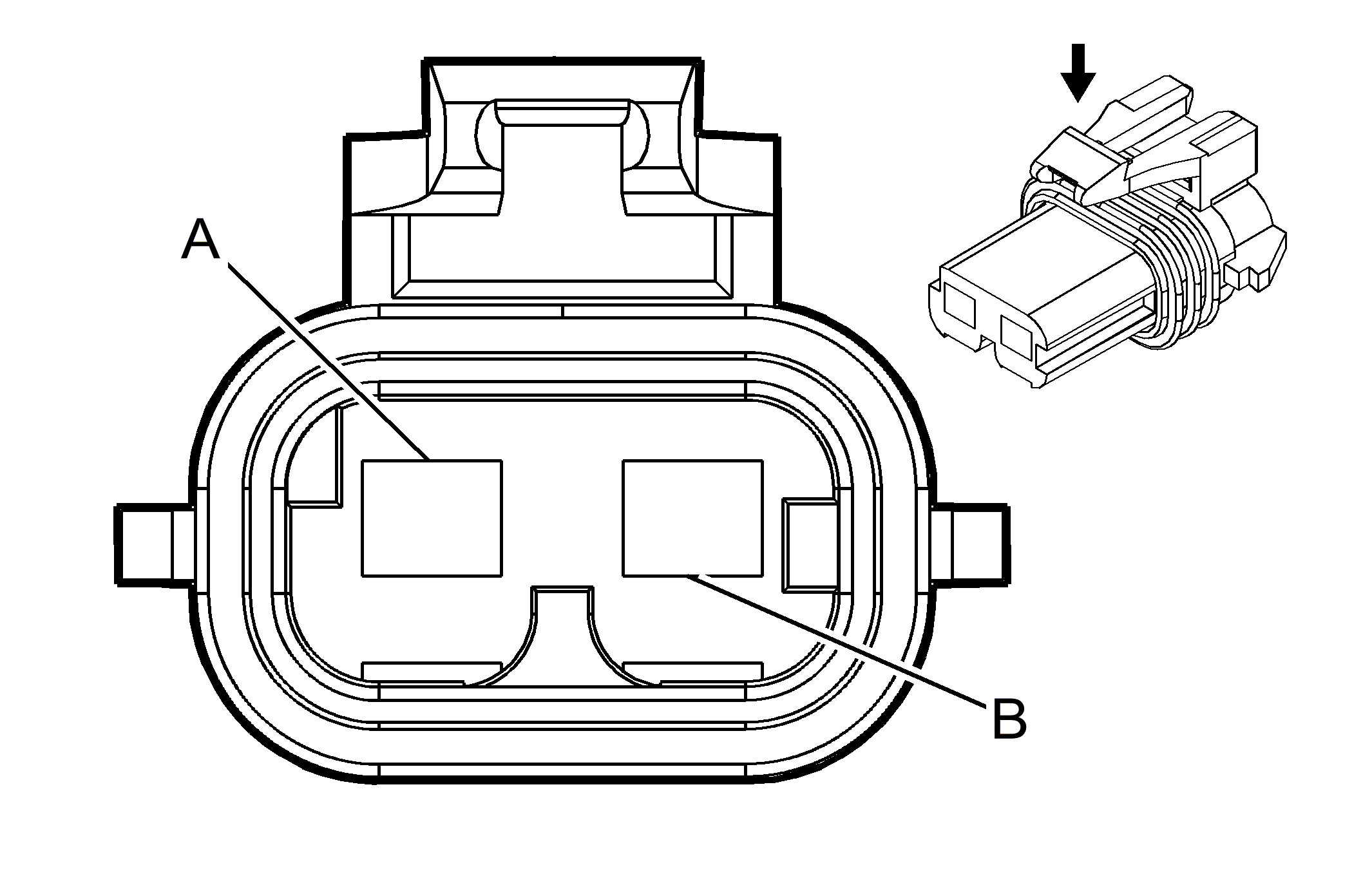

Window Motor - Driver (A31)
Window Motor - Driver (A31)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 3 BN | 165 | Power Window Motor Left Front Down Control |
| B | 3 D-BU | 164 | Power Window Motor Left Front Up Control |
Connector Part Information
|
Terminal Part Information
|
