2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

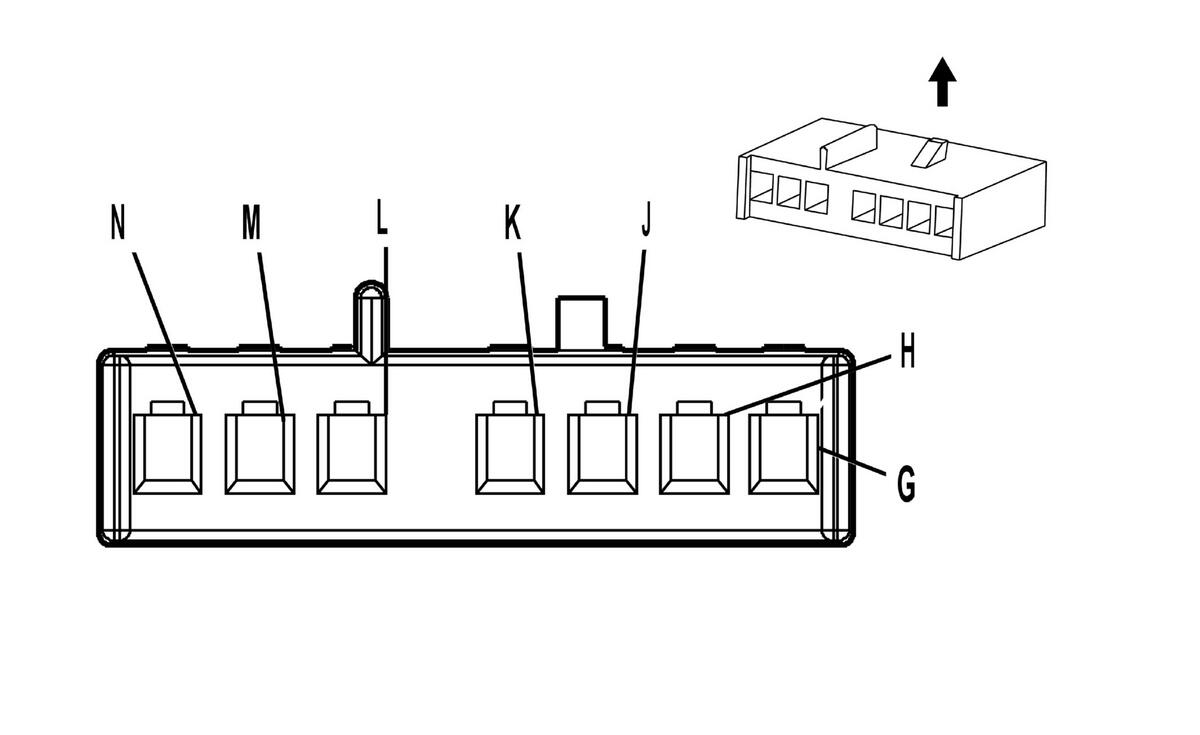

Turn Signal/Multifunction Switch X3
Turn Signal/Multifunction Switch X3
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| G-J | - | - | Not Used |
| K | 0.35 L-GN | 1715 | Windshield Wiper Switch High Signal |
| L | 0.35 PK | 94 | Windshield Washer Switch Signal |
| M | 0.35 TN/BK | 6009 | Low Reference |
| N | 0.35 L-BU | 1714 | Windshield Wiper Switch Low Signal |
Connector Part Information
|
Terminal Part Information
|
