2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Tow/Haul Switch

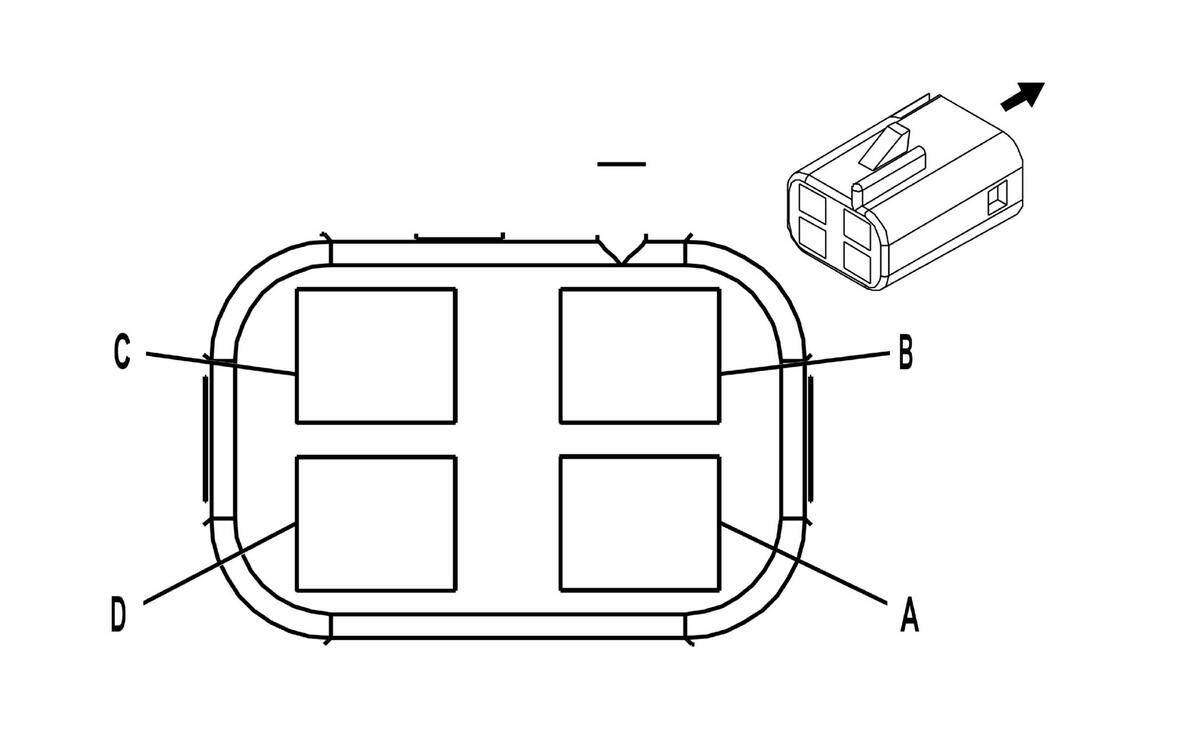

Tow/Haul Switch
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.5 BK/WH | 351 | Ground |
| B | 0.35 BN/WH | 230 | Instrument Panel Lamps Dimming Control |
| C | - | - | Not Used |
| D | 0.35 L-BU | 1788 | Tow/Haul Switch Signal |
Connector Part Information
|
Terminal Part Information
|
