2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Theft Deterrent Control Module

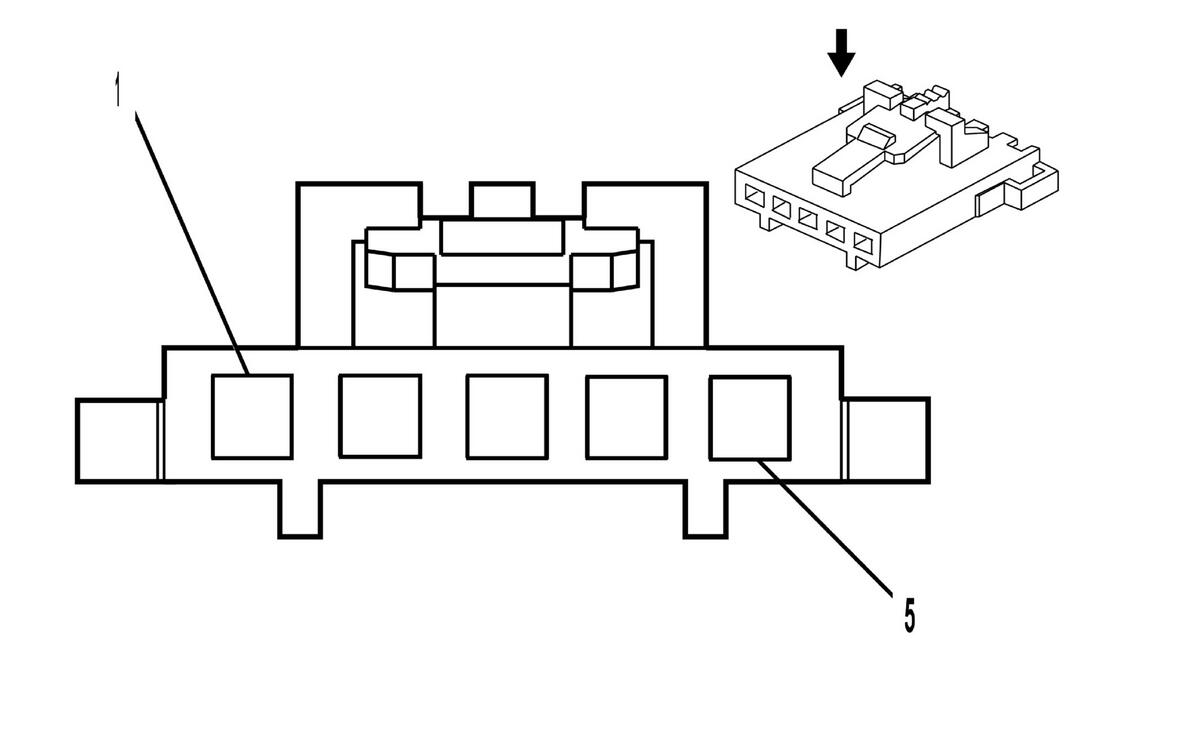

Theft Deterrent Control Module
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.35 RD/WH | 540 | Battery Positive Voltage |
| 2 | 0.35 BN | 4 | Ignition Voltage |
| 3 | 0.35 BK/WH | 351 | Ground |
| 4 | 0.35 D-GN | 5060 | Low Speed GMLAN Serial Data |
| 5 | - | - | Not Used |
Connector Part Information
|
Terminal Part Information
|
