2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

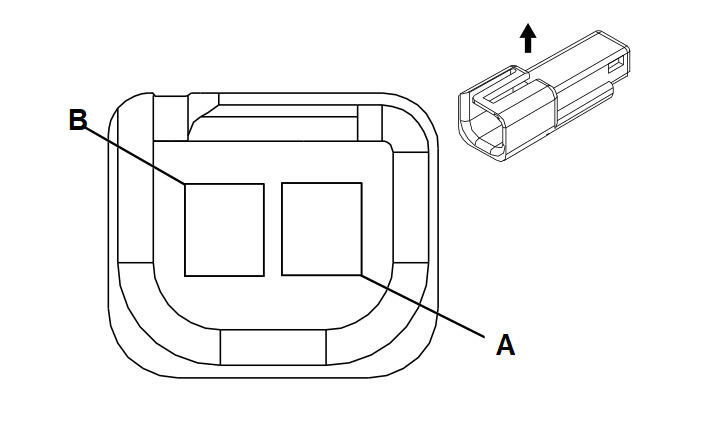

Sunshade - Left (DH6)
Sunshade - Left (DH6)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.5 OG | 1732 | Courtesy Lamps Control |
| B | 0.5 BK | 1850 | Ground |
Connector Part Information
|
Terminal Part Information
|
