2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Steering Wheel Speed/Position Sensor (JL4)

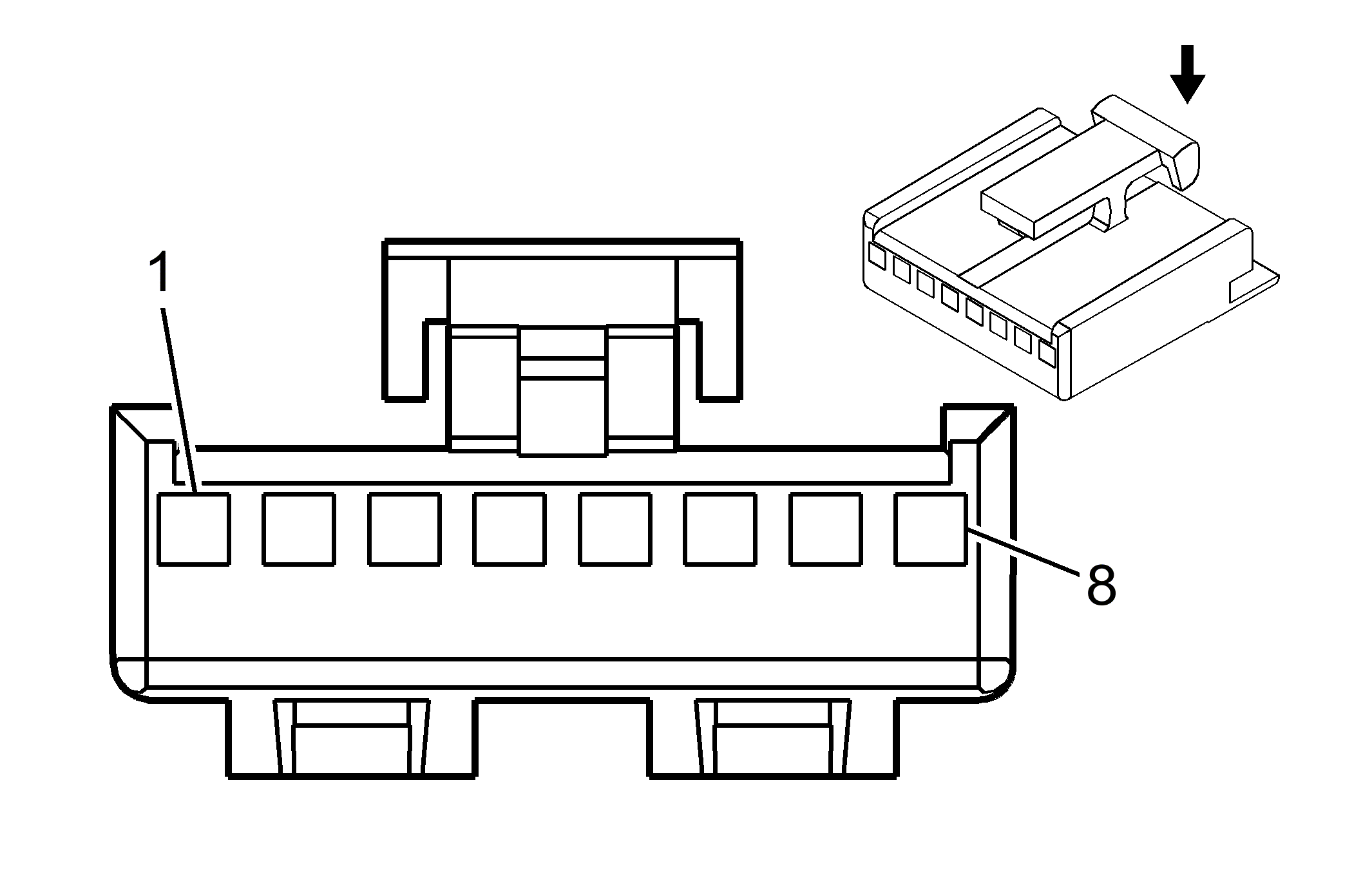

Steering Wheel Speed/Position Sensor (JL4)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.35 GY | 6044 | 5 Volt Reference |
| 2 | 0.35 OG/BK | 6045 | Low Reference |
| 3 | 0.35 YE | 6046 | Steering Angle Sensor Phase A |
| 4 | 0.35 D-BU | 6047 | Steering Angle Sensor Phase B |
| 5 | 0.35 TN | 6048 | Steering Angle Sensor Phase C |
| 6 | 0.35 L-GN | 6043 | Steering Angle Sensor Signal |
| 7 | 0.35 PK | 2239 | Ignition Voltage |
| 8 | 0.35 BK/WH | 351 | Ground |
Connector Part Information
|
Terminal Part Information
|
