2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

Inflatable Restraint Steering Wheel Module - (HD)

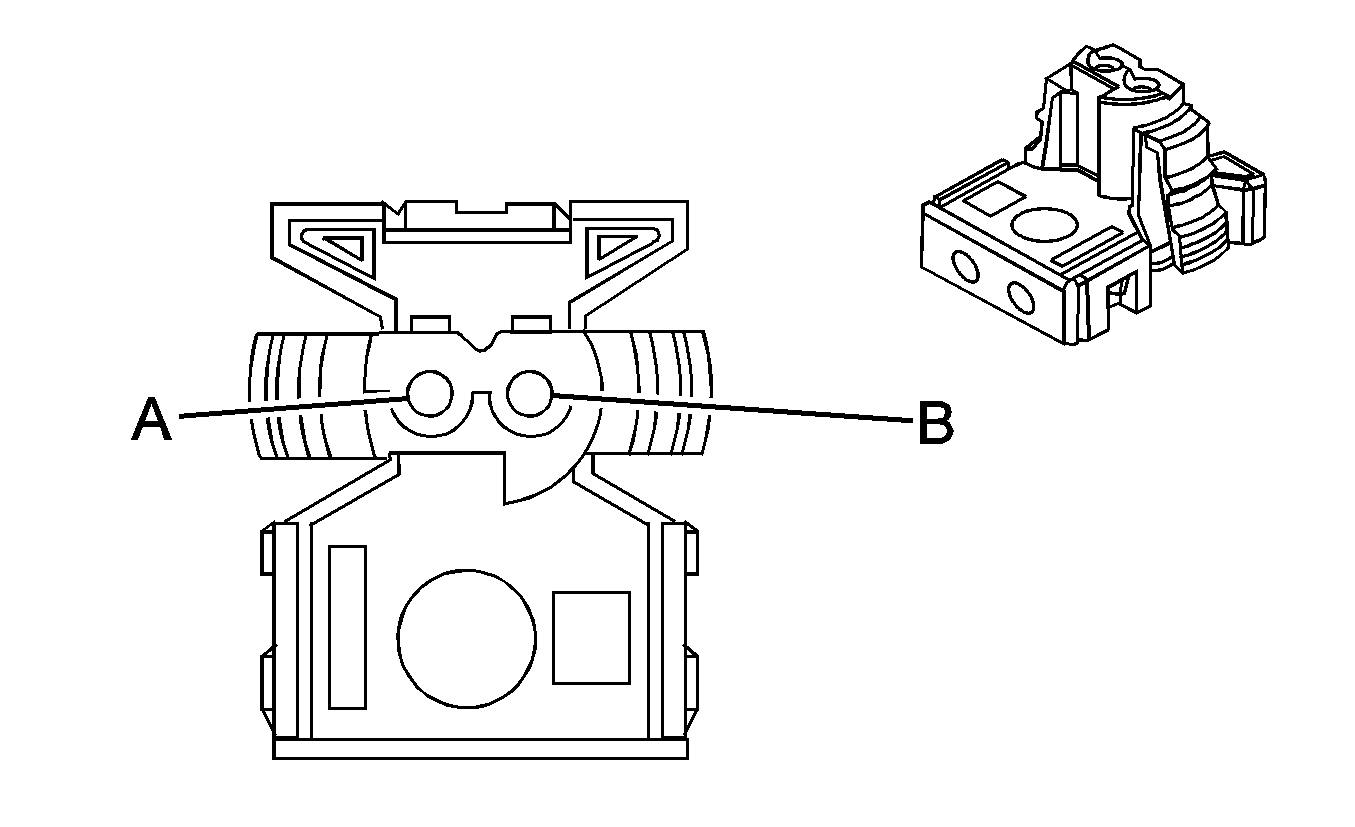

Fig 1: Inflatable Restraint Steering Wheel Module - (HD) Connector End View
GM966360Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Steering Wheel Module - (HD)

Pin Wire Circuit Function
1 0.5 TN 3021 Steering Wheel Module - Stage 1 - High Control
2 0.5 BN 3020 Steering Wheel Module - Stage 1 - Low Control
Connector Part Information
  • OEM: 54560235
  • Service: See Catalog
  • Description: 2-Way F FFB90-4 Type C (YE)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
