2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

Inflatable Restraint Instrument Panel Module (Light Duty)

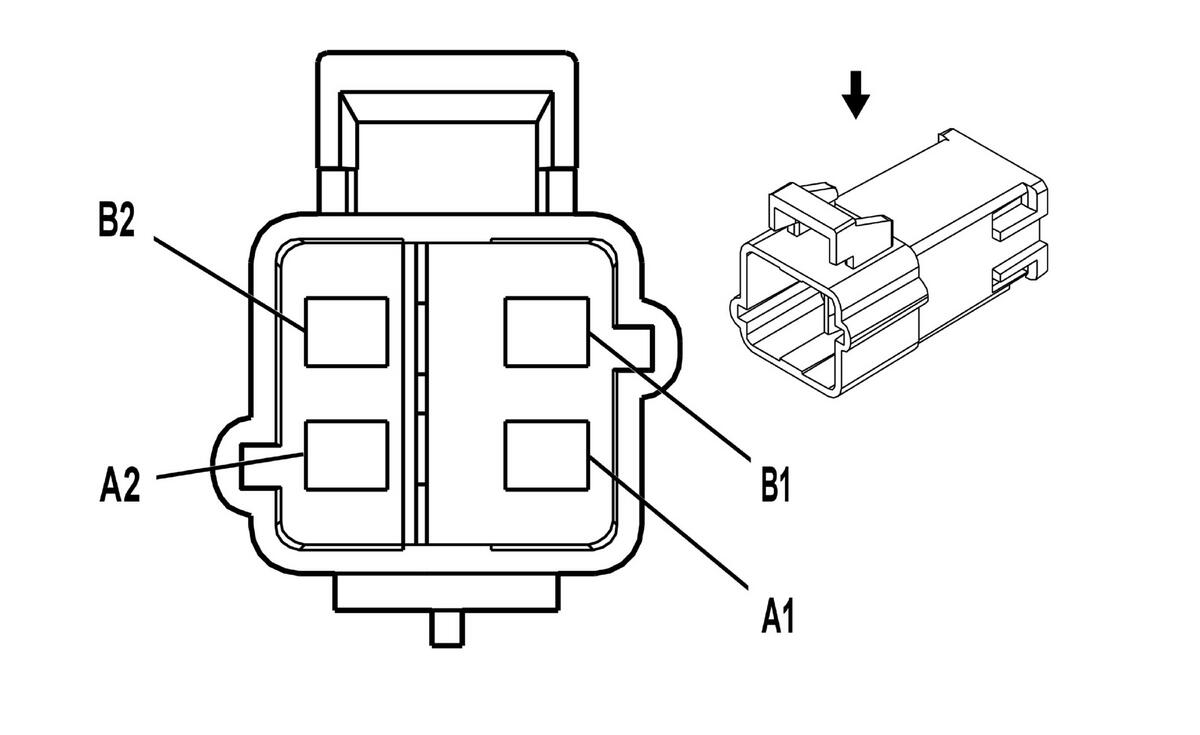

Fig 1: Inflatable Restraint Instrument Panel Module (Light Duty) Connector End View
GM684931Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Instrument Panel Module (Light Duty)

Pin Wire Circuit Function
A1 0.5 YE 3025 Instrument Panel Module - Stage 1 - High Control
A2 0.5 OG 3024 Instrument Panel Module - Stage 1 - Low Control
B1 0.5 GY 3027 Instrument Panel Module - Stage 2 - High Control
B2 0.5 PU 3026 Instrument Panel Module - Stage 2 - Low Control
Connector Part Information
  • OEM: 15336476
  • Service: 15336476
  • Description: 4-Way M Metri-Pack 280 Series (YE)
Terminal Part Information
  • Terminal/Tray: Service with Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
