2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

Inflatable Restraint Front Passenger Presence System (PPS) Sensor (LD-YF7)

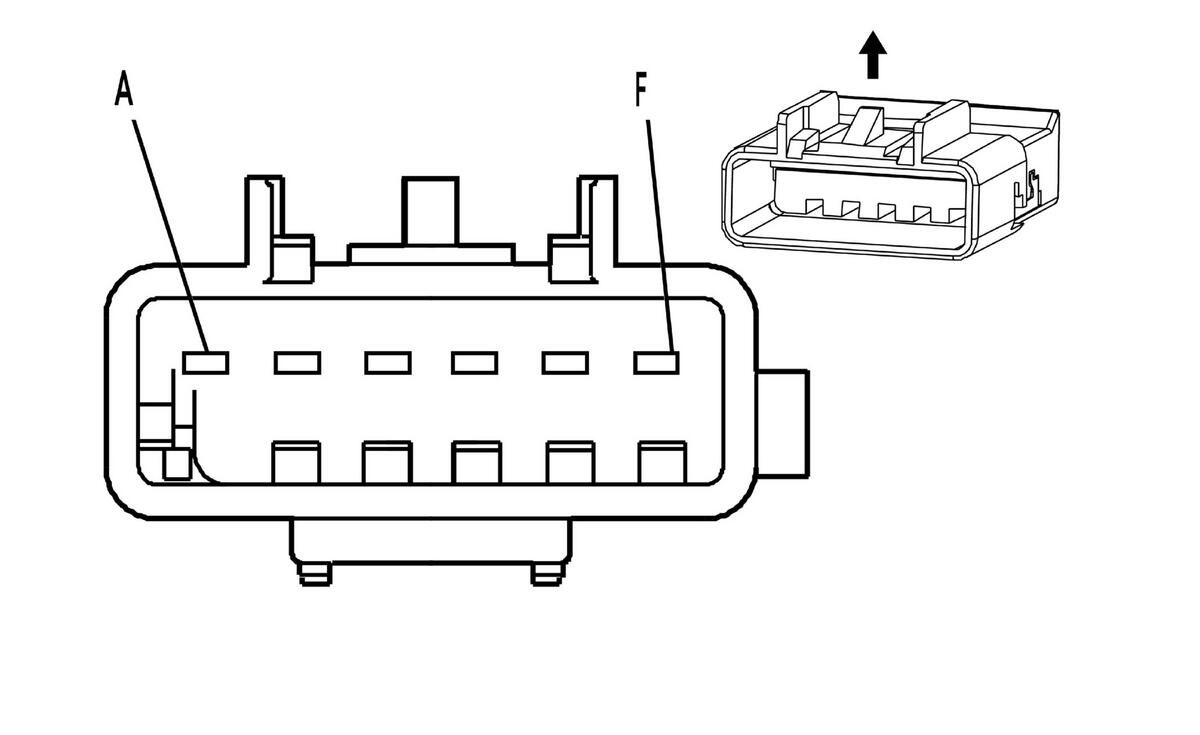

Fig 1: Inflatable Restraint Front Passenger Presence System (PPS) Sensor (LD-YF7) Connector End View
GM1464340Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Front Passenger Presence System (PPS) Sensor (LD-YF7)

Pin Wire Circuit Function
A 0.5 RD/WH 3440 Battery Positive Voltage
B - - Not Used
C 0.5 D-GN 5060 Low Speed GMLAN Serial Data
D 0.5 BK/WH 1751 Ground
E-F - - Not Used
Connector Part Information
  • OEM: 15332142
  • Service: 15332142
  • Description: 6-Way M GT 150/280 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
