2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

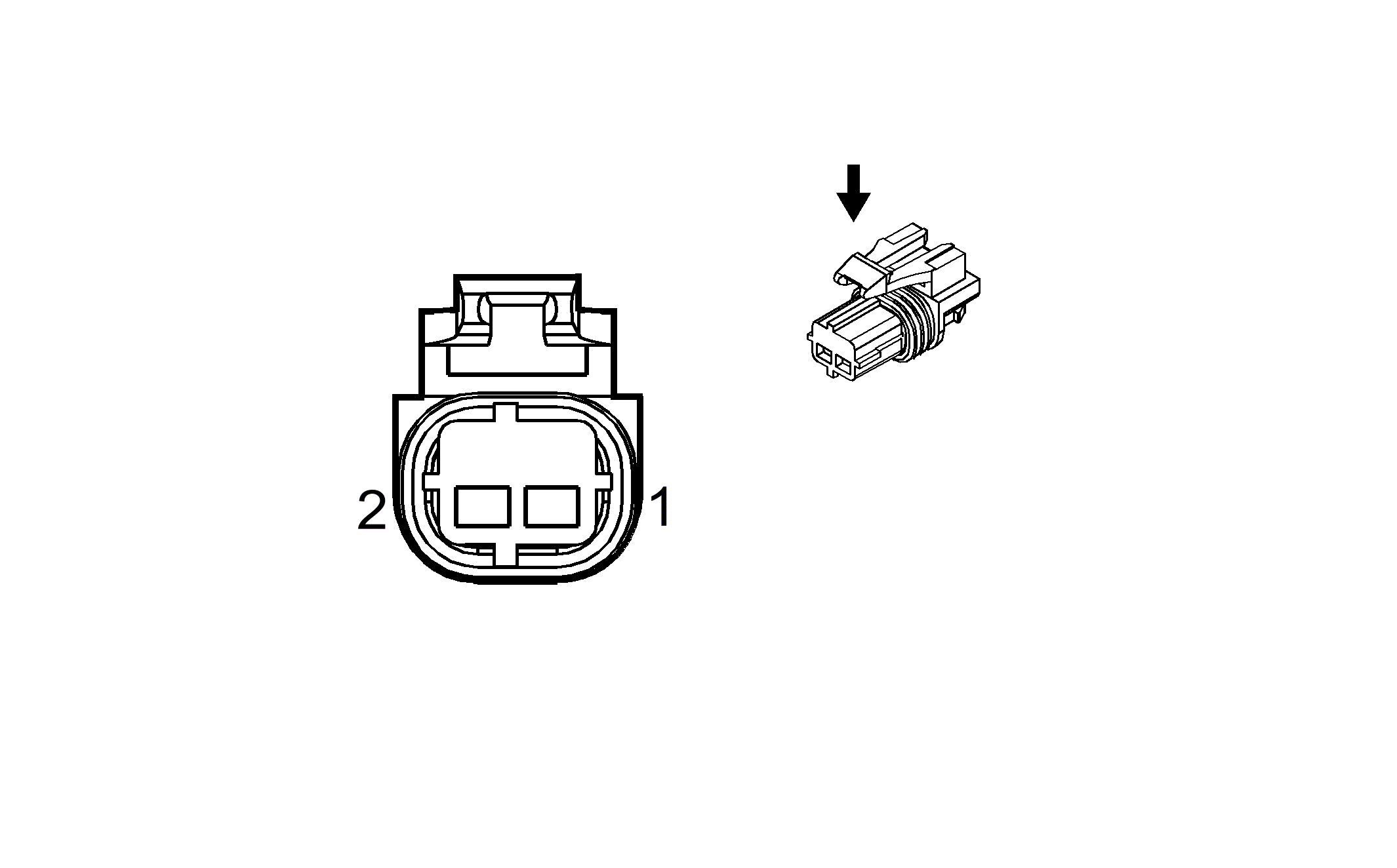

Inflatable Restraint Front End Sensor
Inflatable Restraint Front End Sensor
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.5 D-BU/WH | 6619 | Low Reference |
| 2 | 0.5 BN/WH | 6618 | Discriminating Sensor Signal |
Connector Part Information
|
Terminal Part Information
|
