2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

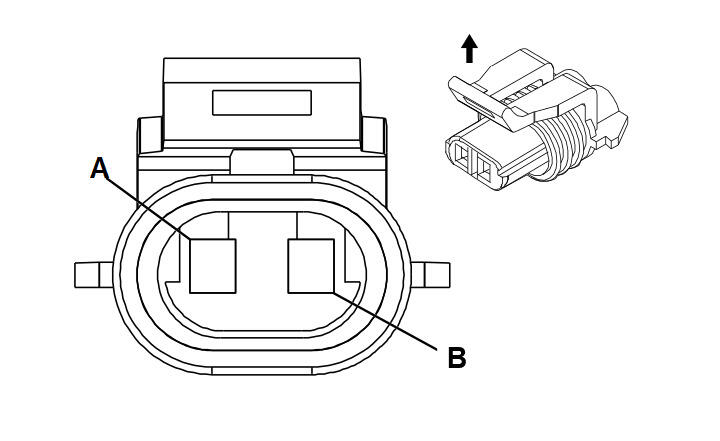

Horn Assembly
Horn Assembly
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.8 BK | 1250 | Ground |
| B | 0.8 D-GN | 29 | Horn Control |
Connector Part Information
|
Terminal Part Information
|
