2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

HVAC Control Assembly X2

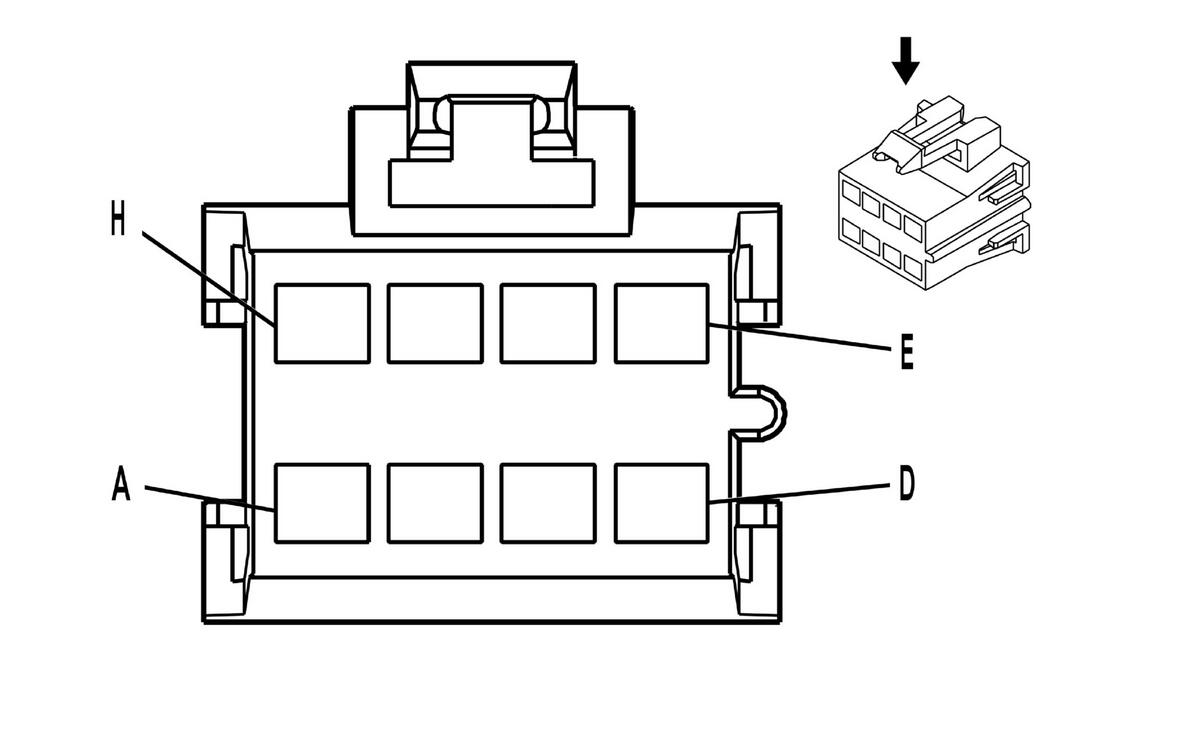

Fig 1: HVAC Control Assembly X2 Connector End View
GM62469Courtesy of GENERAL MOTORS CORP.
HVAC Control Assembly X2

Pin Wire Circuit Function
A 0.8 YE 60 Auxiliary Blower Motor Low Control
B 0.8 TN 63 Auxiliary Blower Motor Medium Control
C 0.8 L-BU 72 Medium 2 Blower Motor Control
D 0.8 OG 52 Auxiliary Blower Motor High Control
E 1 BN 141 Ignition Voltage
F 0.8 L-BU 733 Air Temperature Door Control
G 1 WH 119 Blower Motor Switch Control
H 0.5 D-GN/WH 762 A/C Request Signal
Connector Part Information
  • OEM: 12064998
  • Service: 15306189
  • Description: 8-Way F Metri-Pack 280 Series (BK)
Terminal Part Information
  • Pins: H
  • Terminal/Tray: 12034046/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: A-G
  • Terminal/Tray: 12066214/2
  • Core/Insulation Crimp: Pins A-D, F - See Terminal Repair Kit
  • Core/Insulation Crimp: Pins E, G - F/D
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
