2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

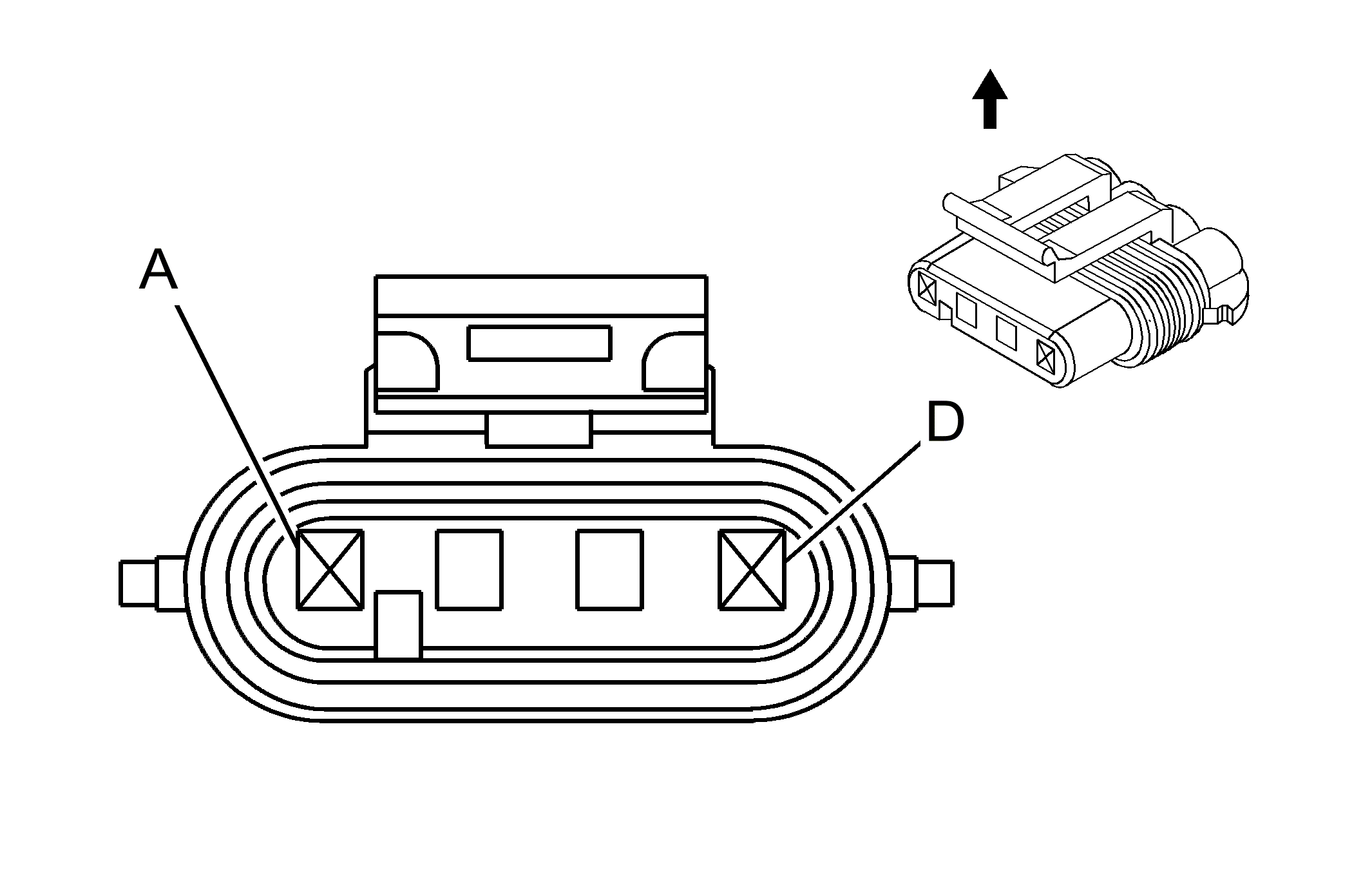

Generator X1
Generator X1
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| B | 0.5 OG | 225 | Generator Turn On Signal (Gas) |
| B | 0.8 OG | 225 | Generator Turn On Signal (Diesel) |
| C | 0.5 GY | 23 | Generator Field Duty Cycle Signal (Gas) |
| C | 0.8 GY | 23 | Generator Field Duty Cycle Signal (Diesel) |
Connector Part Information
|
Terminal Part Information
|
Factory Service Tools
