2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

Electronic Brake Control Module (EBCM) (JL4)

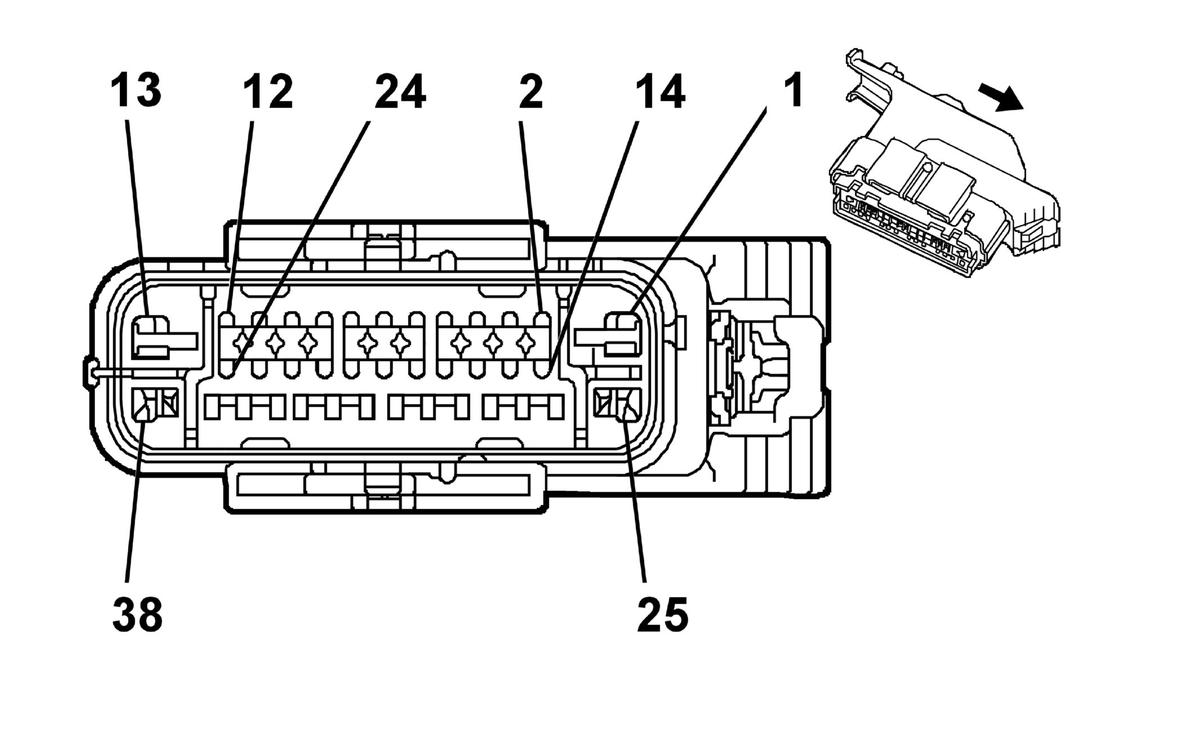

Fig 1: Electronic Brake Control Module (EBCM) (JL4) - Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	5 BK	2150	Ground
2	0.5 WH	883	Low Reference
3	0.5 BN	882	Right Rear Wheel Speed Sensor Signal
4	0.5 TN	884	Left Rear Wheel Speed Sensor Signal
5	0.5 OG	885	Low Reference
6	0.5 TN	833	Low Reference
7	0.5 YE	6046	Steering Angle Sensor Phase A
8	0.5 TN	6048	Steering Angle Sensor Phase C
9	0.5 L-GN	6043	Steering Angle Sensor Signal
10-11	-	-	Not Used
12	0.5 L-BU	5986	Serial Data Communication Enable
13	5 RD/BK	442	Battery Positive Voltage
14-15	-	-	Not Used
16	0.5 OG/BK	6045	Low Reference
17	0.5 D-GN	872	Right Front Wheel Speed Sensor Signal
18	-	-	Not Used
19	0.5 GY/BK	1337	12-Volt Reference
20	0.5 D-BU	6047	Steering Angle Sensor Phase B
21	0.5 WH/BK	6436	CAN Bus Low Terminated Serial Data
22	-	-	Not Used
23	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
24	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
25	3 BK	2150	Ground
26-27	-	-	Not Used
28	0.5 L-BU	830	Left Front Wheel Speed Sensor Signal
29	0.5 YE	873	Low Reference
30	0.5 BK/PU	7499	Low Reference
31	0.5 GY	6044	5-Volt Reference
32	0.5 YE/BK	1827	Vehicle Speed Signal
33	0.5 BN/WH	6437	CAN Bus High Terminated Serial Data
34-35	-	-	Not Used
36	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
37	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
38	3 RD/WH	1640	Battery Positive Voltage

Connector Part Information

OEM: 13528146
Service: See Catalog
Description: 38-Way F Sealed ()

Terminal Part Information

Pins: 1, 13
Terminal/Tray: 7116-4142-02/10
Core/Insulation Crimp: D/3
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pins: 2-9, 12, 16, 17, 19, 20-24, 28-33, 36, 37
Terminal/Tray: 7116-3703-02
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 25, 38
Terminal/Tray: 15304720/19
Core/Insulation Crimp: 4/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
