2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Driver Information Center (DIC) Switch

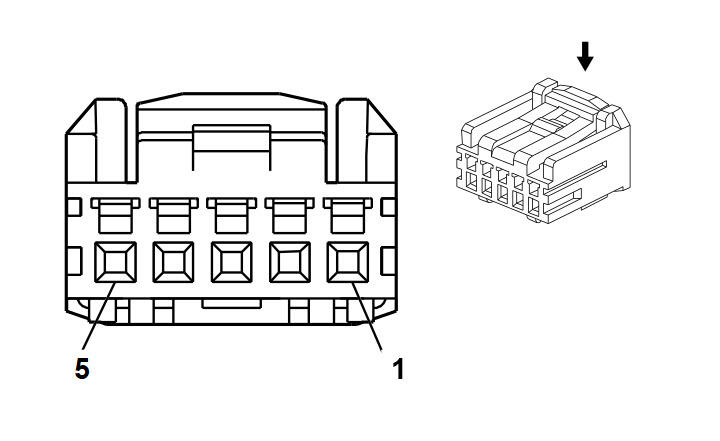

Driver Information Center (DIC) Switch
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.35 D-GN/WH | 1358 | Driver Information Center (DIC) Switch Signal |
| 2 | 0.35 BN | 897 | Low Reference |
| 3 | 0.35 PK | 893 | Driver Information Center (DIC) Select Menu Switch Signal |
| 4 | 0.35 YE | 6817 | LED Backlight Dimming Control |
| 5 | 0.5 BK/WH | 351 | Ground |
Connector Part Information
|
Terminal Part Information
|
