2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Door Lock Switch - Passenger (AU3)
Door Lock Switch - Passenger (AU3)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.35 BK | 1850 | Ground |
| B | 0.35 BK | 1850 | Ground |
| C | 0.35 BN/WH | 230 | Instrument Panel Lamps Dimming Control |
| D-E | - | - | Not Used |
| F | 0.35 D-BU | 245 | Passenger Door Lock Switch Unlock Control |
| G | 0.35 L-BU | 244 | Passenger Door Lock Switch Lock Control |
| H | - | - | Not Used |

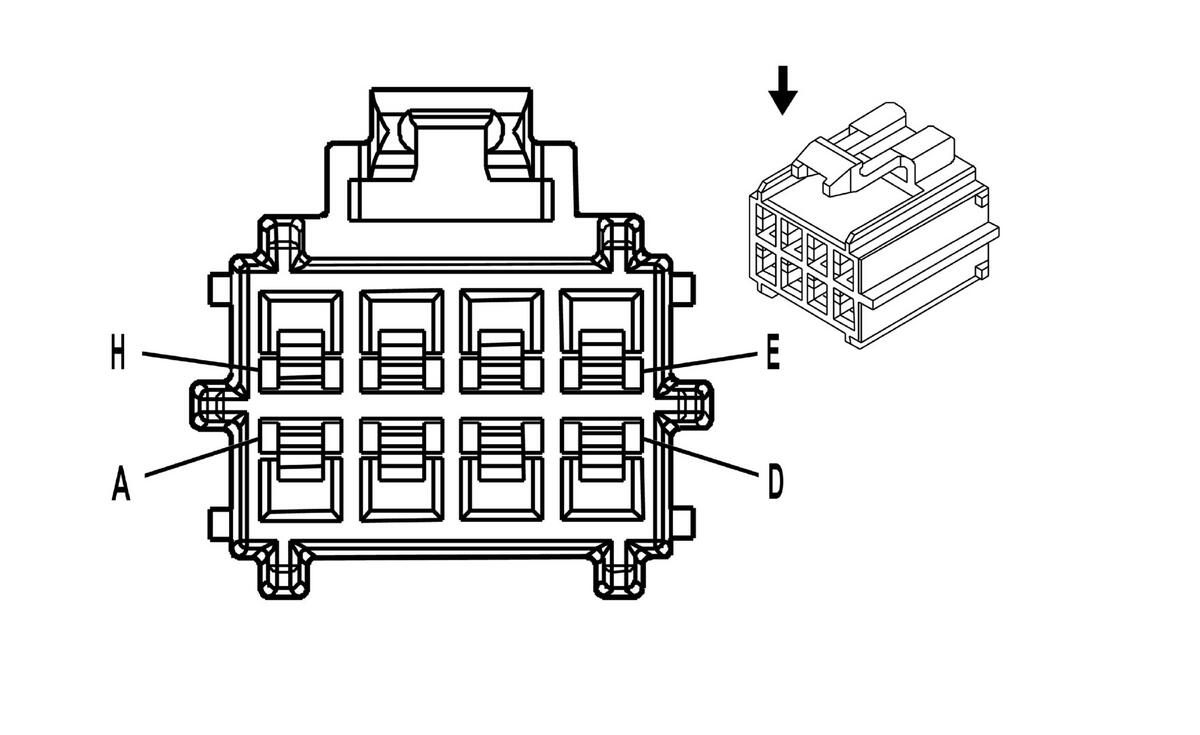

Connector Part Information
|
Terminal Part Information
|
