2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

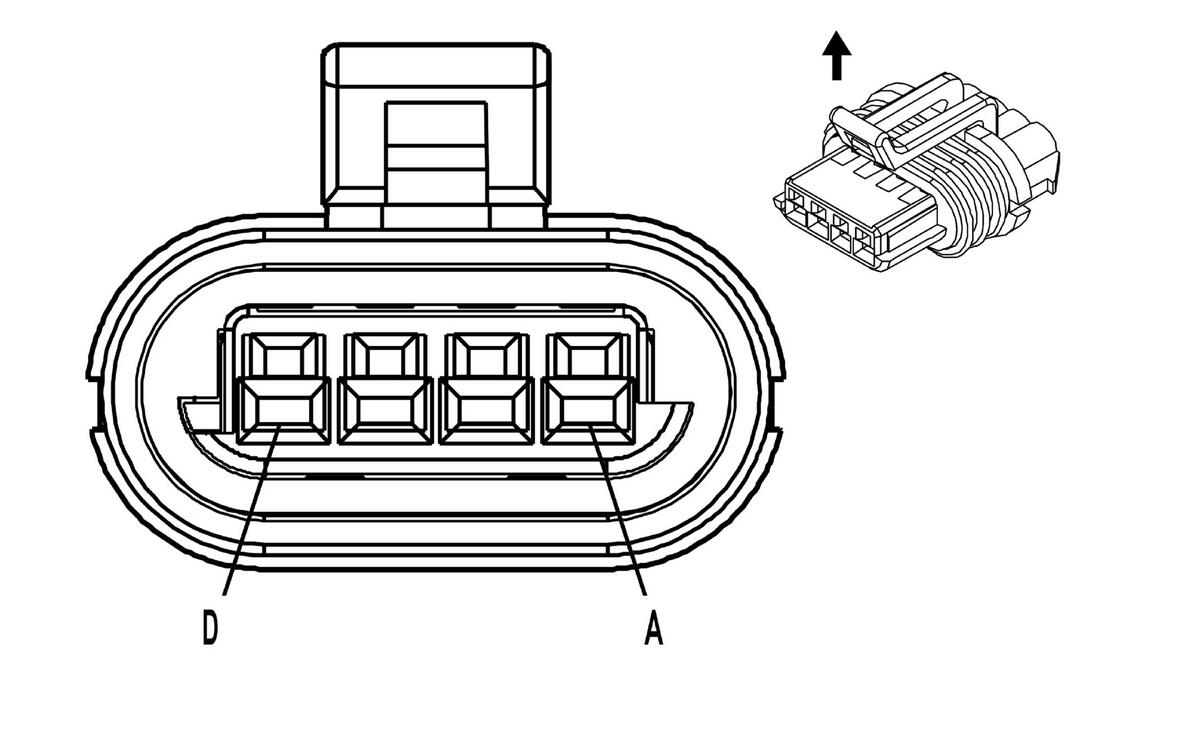

Door Latch Assembly - Passenger X1
Door Latch Assembly - Passenger X1
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.35 BK | 1850 | Ground |
| B | - | - | Not Used |
| C | 0.35 TN/WH | 746 | Right Front Door Ajar Switch Signal |
| D | 0.35 L-GN | 1177 | Right Front Door Open Switch Signal |
Connector Part Information
|
Terminal Part Information
|
Factory Service Tools
