2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE

Body Control Module (BCM) X6

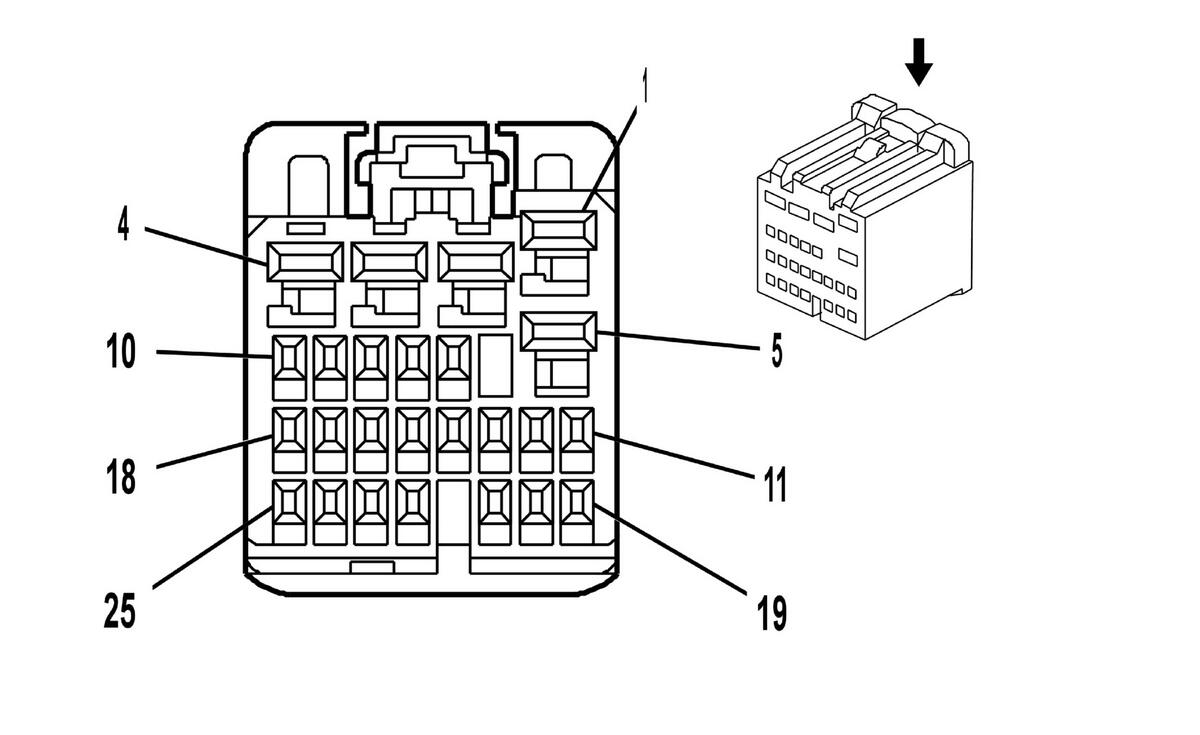

Fig 1: Body Control Module (BCM) X6 Connector End View
GM1664502Courtesy of GENERAL MOTORS CORP.
Body Control Module (BCM) X6

Pin Wire Circuit Function
1 - - Not Used
2 0.8 L-BU 1320 CHMSL Control (05/06)
3-7 - - Not Used
8 0.35 TN/WH 746 Right Front Door Ajar Switch Signal
9 0.35 D-BU 245 Passenger Door Lock Switch Unlock Control (AU3)
10 0.35 GY/BK 745 Left Front Door Ajar Switch Signal
11 - - Not Used
12 0.35 PK/BK 1303 Liftgate Ajar Switch Signal (05/06)
13 - - Not Used
14 0.35 YE/BK 1181 Right Rear Door Open Switch Signal (05/06)
15 0.35 D-BU/WH 1179 Left Rear Door Open Switch Signal (E26)
16 0.35 L-GN 1177 Right Front Door Open Switch Signal
17 - - Not Used
18 0.35 L-BU 244 Passenger Door Lock Switch Lock Control (AU3)
19-21 - - Not Used
22 0.35 L-GN 5926 Rear Access Open Switch Signal (05/06)
23-25 - - Not Used
Connector Part Information
  • OEM: 15482793
  • Service: See Catalog
  • Description: 25-Way F HIT Series (PK)
Terminal Part Information
  • Pins: 2
  • Terminal/Tray: SNAC-A061T-M2.8/20
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: 8-10, 12, 14-16, 18, 22
  • Terminal/Tray: SNAC3-A021T-M0.64/20
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
