Locking Differential Clutch Disc Assembly Assemble (9.75 Inch Axle)
- Apply axle lubricant, GM P/N 12378261 (Canadian P/N 10953455) or equivalent meeting GM Specification 9986115, to the surface of each disc.

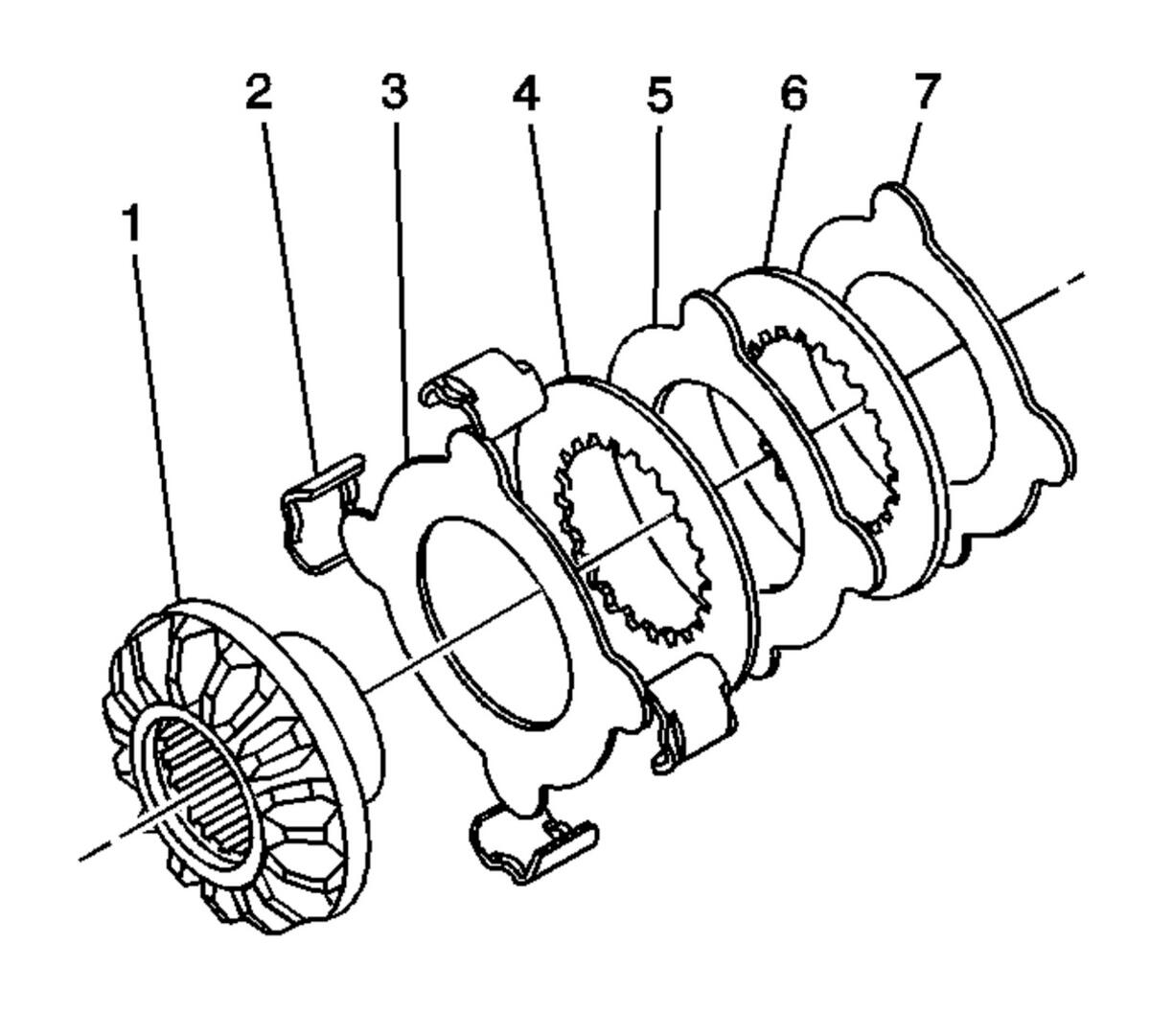

- Assemble the right side or bell-end side clutch disc assembly as follows:
- Install the 1st non-carbon eared disc (3) to the side gear (1).
- Install the 1st splined disc (4).
- Install the 2nd non-carbon eared disc (5).
- Install the 2nd splined disc (6).
- Install the 3rd non-carbon eared disc (7).
- Install the guide clips (2) to the clutch discs (2-7).
Apply chassis grease, GM P/N 12377985 (Canadian P/N 88901242) or equivalent, to the guide clips in order to hold the clips in place on the disc ears.
