2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Plug the WSS bore to prevent debris from falling into the hub.
- Using a wire brush or equivalent, clean the WSS mounting surface on the hub to remove any rust or corrosion.
- Apply a thin layer of wheel bearing lubricant, GM P/N 01051344 to the hub surface and the sensor O-ring prior to sensor installation.

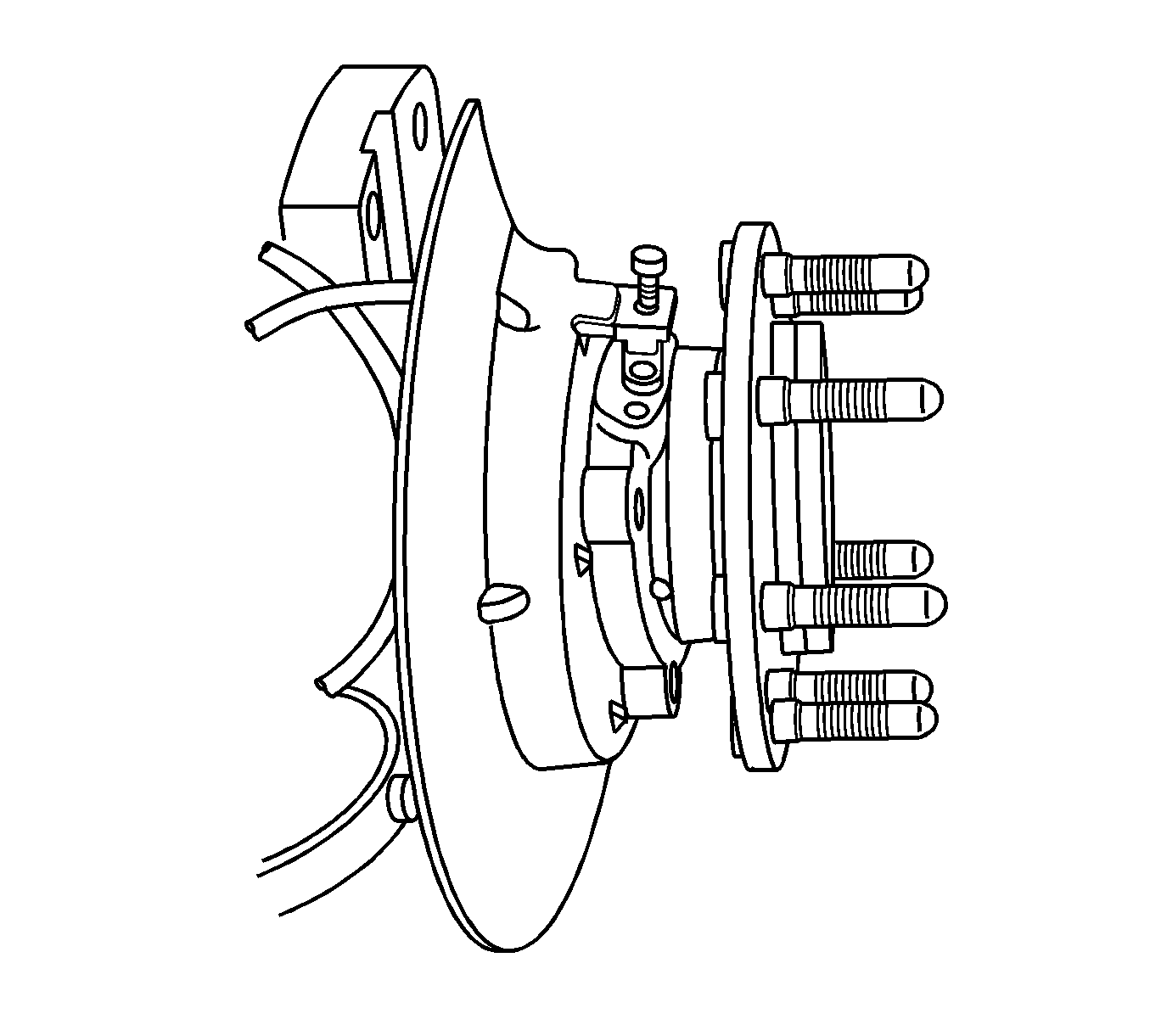

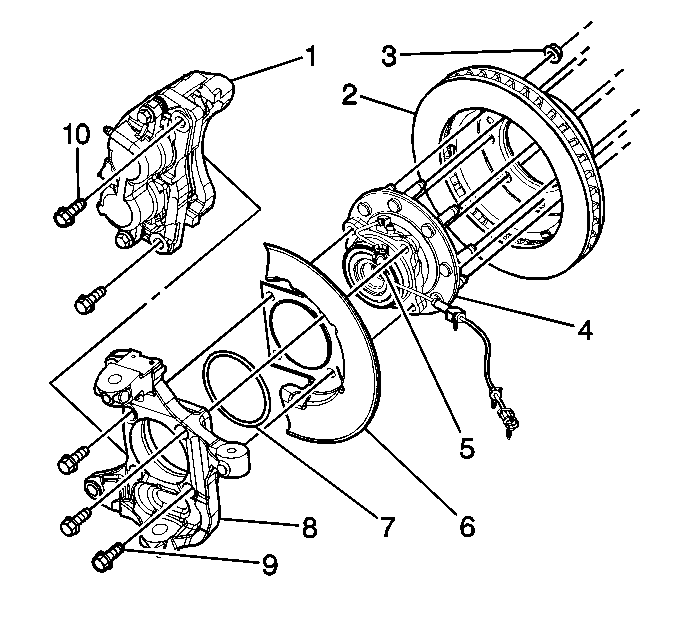

- Install the WSS (5) into the hub/bearing assembly (4) shown on the 2500/3500 Series. Ensure that the sensor is seated flat against the hub.
