Installation Procedure

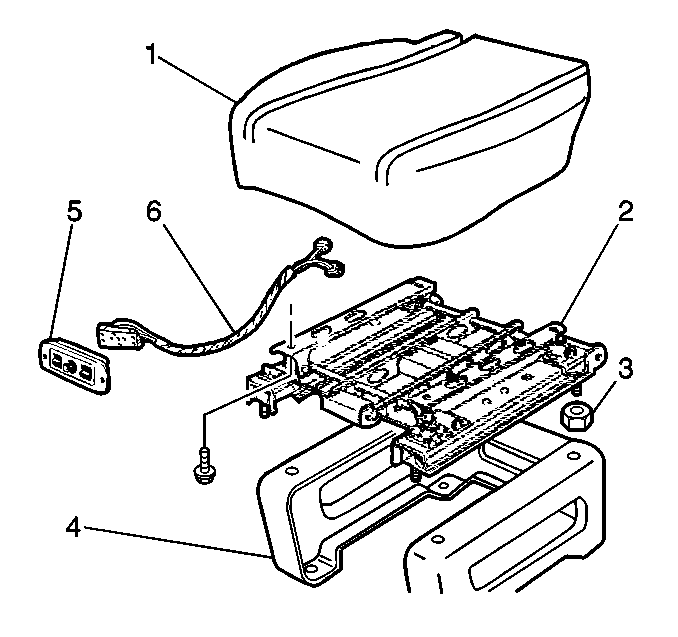

- Install the power seat adjuster switch (5) to the vehicle.
- Connect the electrical connector to the power seat adjuster switch.
- Install the power seat adjuster switch to the seat cushion (1).
- Install the screws in order to retain the power seat adjuster switch to the seat cushion.
Tighten: Tighten the screws to 2 N.m (18 lb in).
