2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the instrument cluster panel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .

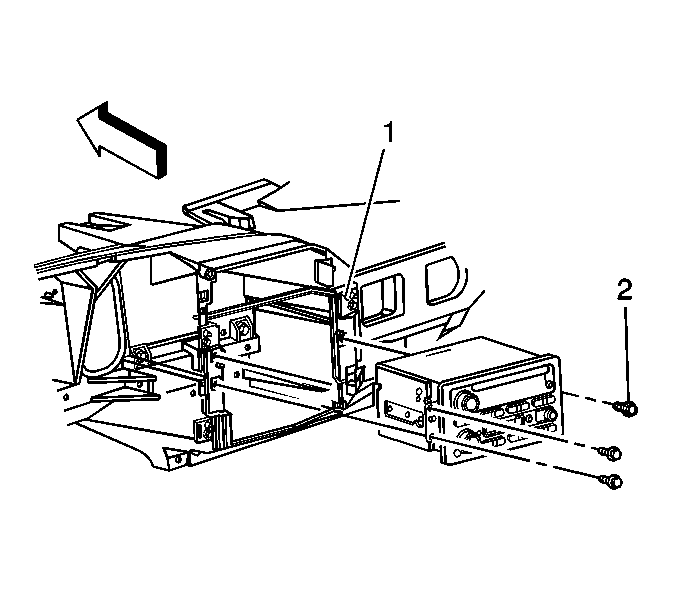

- Remove the screws (2) that secure the radio to the support bracket (1).
- Remove the radio from the support bracket enough to access the connectors at rear of the radio.
- Disconnect the electrical/audio and antenna cable connectors from the radio.
- Remove the radio.
- If removing the radio mounting bracket. Perform the following steps:
- Detach the clip retaining the HVAC harness to the radio mounting bracket.

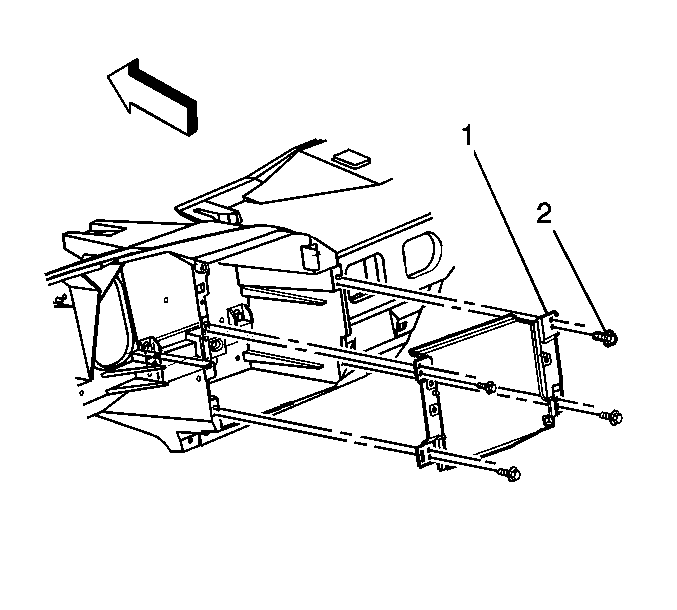

- Remove the screws (2) retaining the radio mounting bracket (1) to the instrument panel carrier.
- Remove the radio mounting bracket from the vehicle.
