2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Removal Procedure

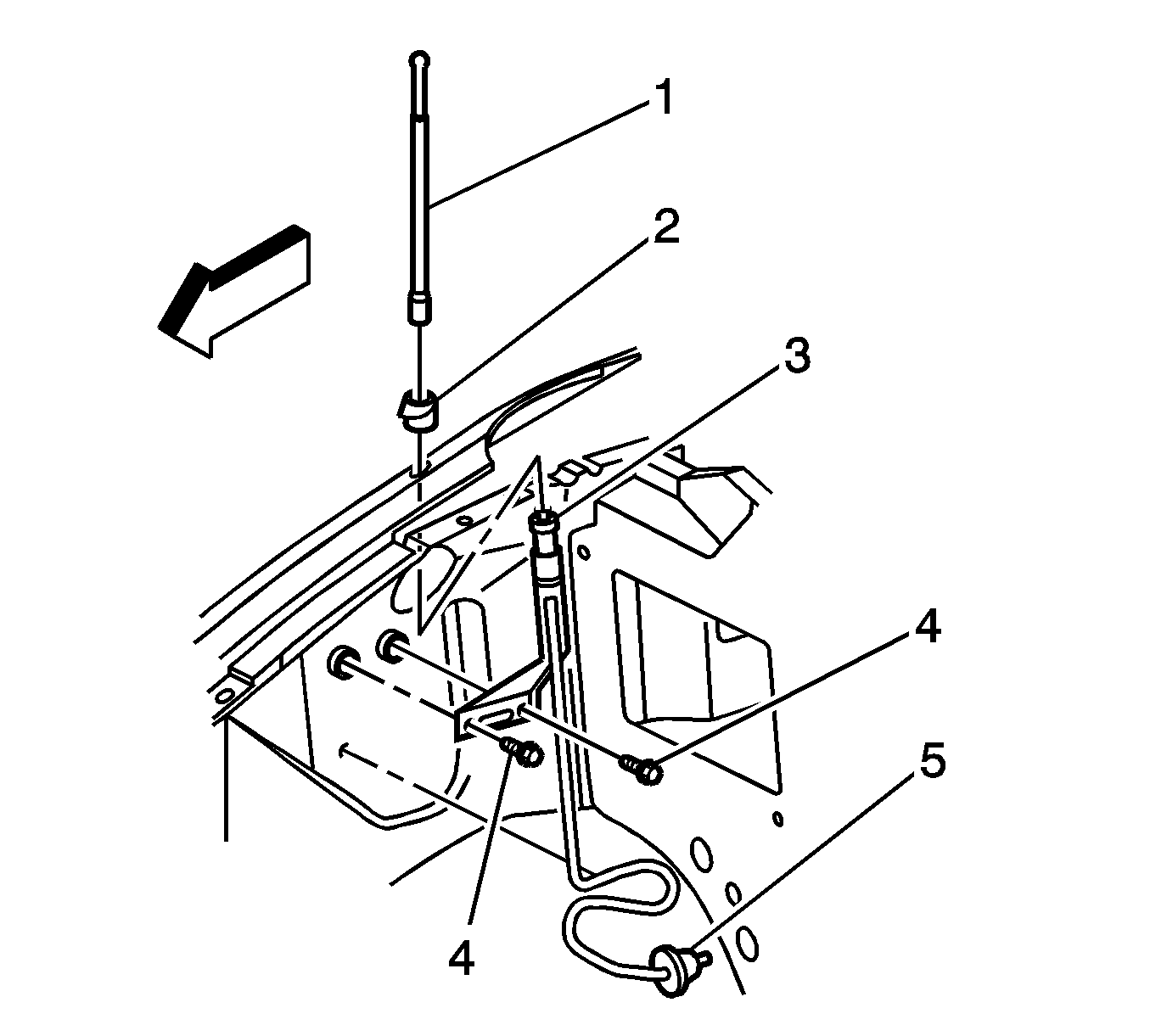

- Unscrew and remove the antenna mast (1). Refer to Fixed Antenna Mast Replacement .
- Disconnect the antenna base cable connection from the antenna extension cable.
- Push the antenna base cable grommet (5) out, through the firewall.
- Open hood to access the antenna cable/base (3).
- Remove the antenna collar (2).
- Remove the antenna cable/base bolts (4).
- Remove the antenna cable/base (3) from the vehicle.
