2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the right side knee bolster trim panel. Refer to Passenger Knee Bolster Replacement .

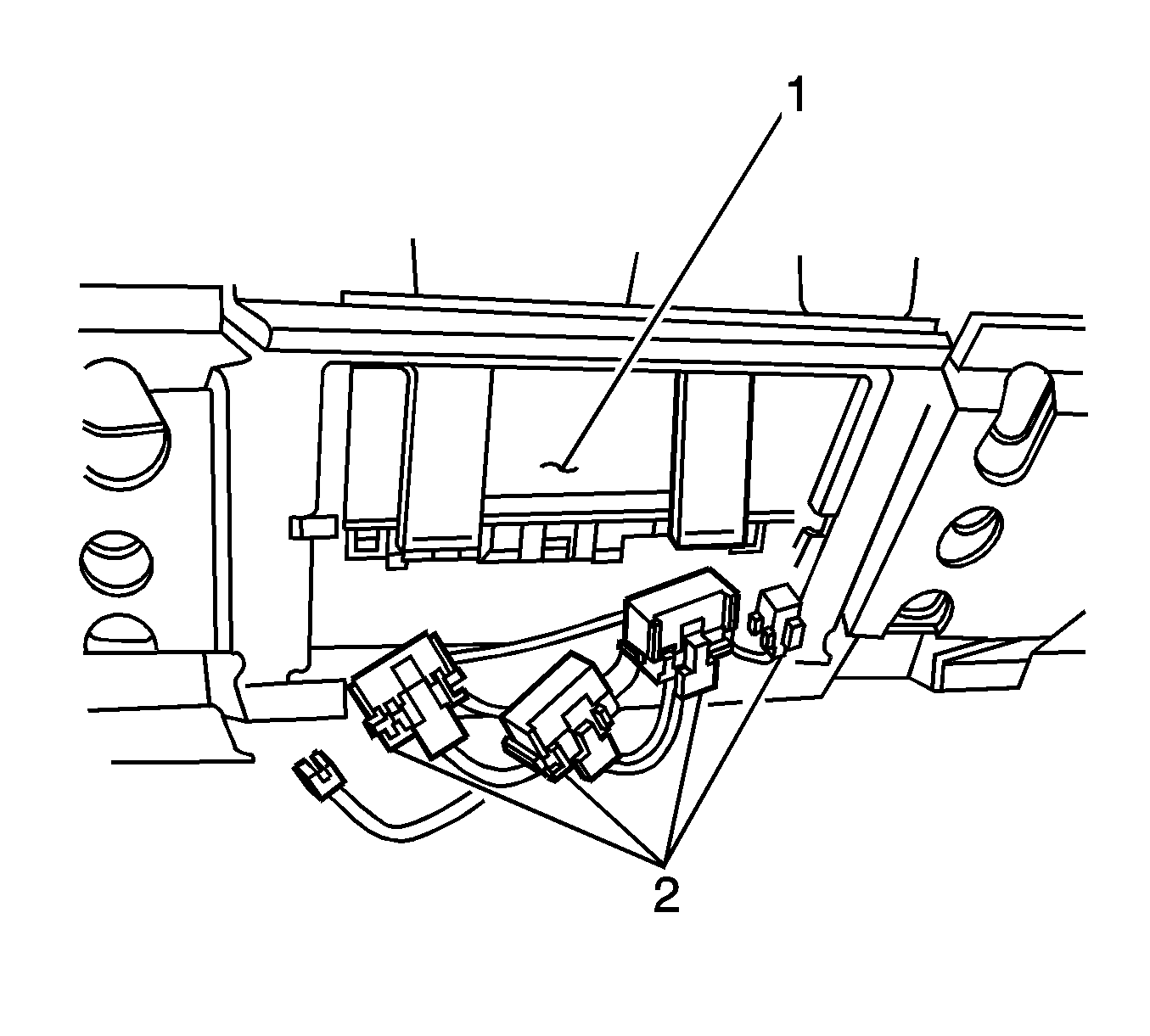

- Disconnect the electrical connectors (2) from the body control module (BCM) (1).

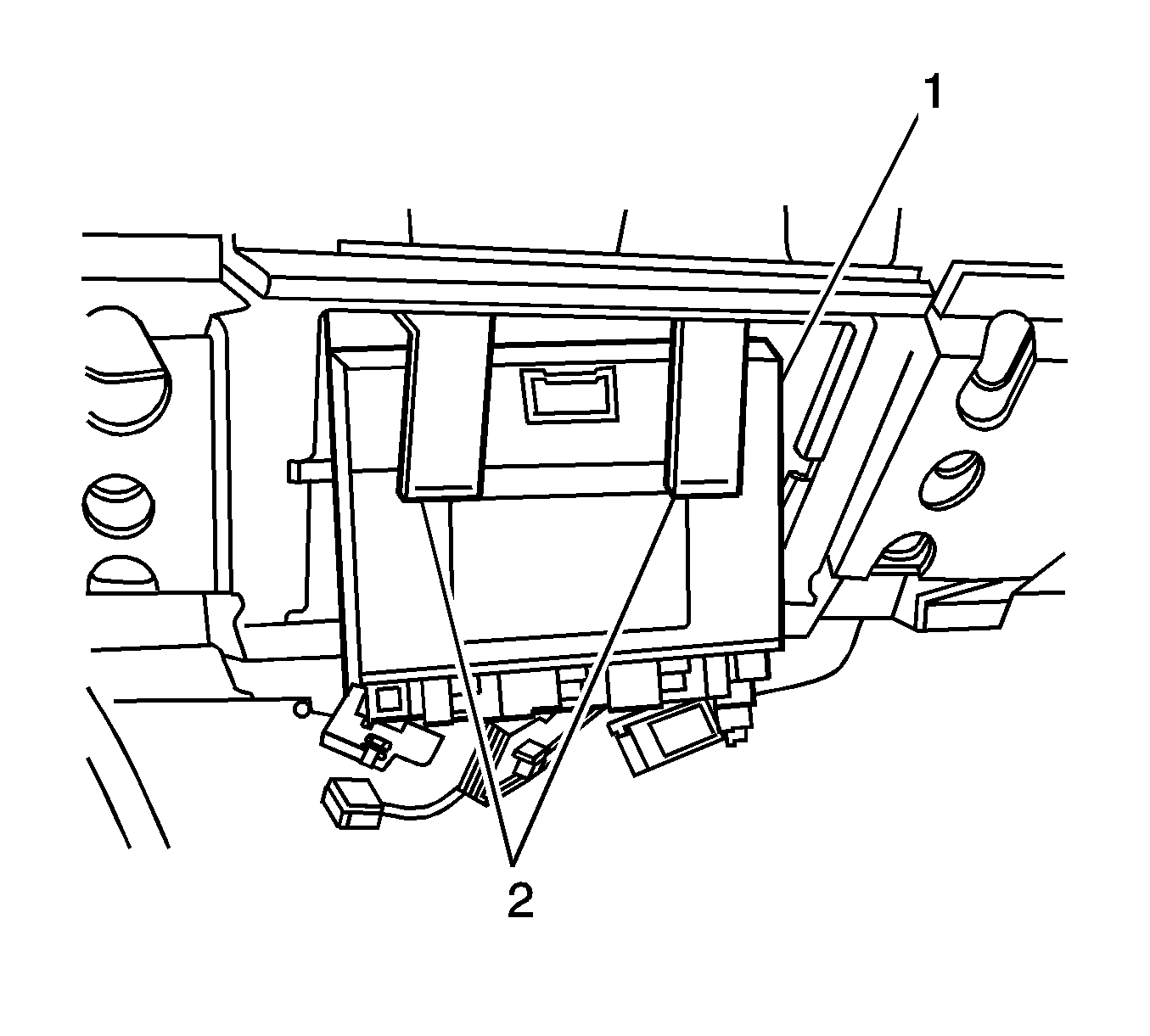

- Release the tabs (2) retaining the BCM (1) to the bracket.
- Remove the BCM (1) from the vehicle.
