2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 K
Installation Procedure
2008 Chevrolet Chevy Express G2500, Van Cargo Extended, 6.0 KSECTION Installation Procedure

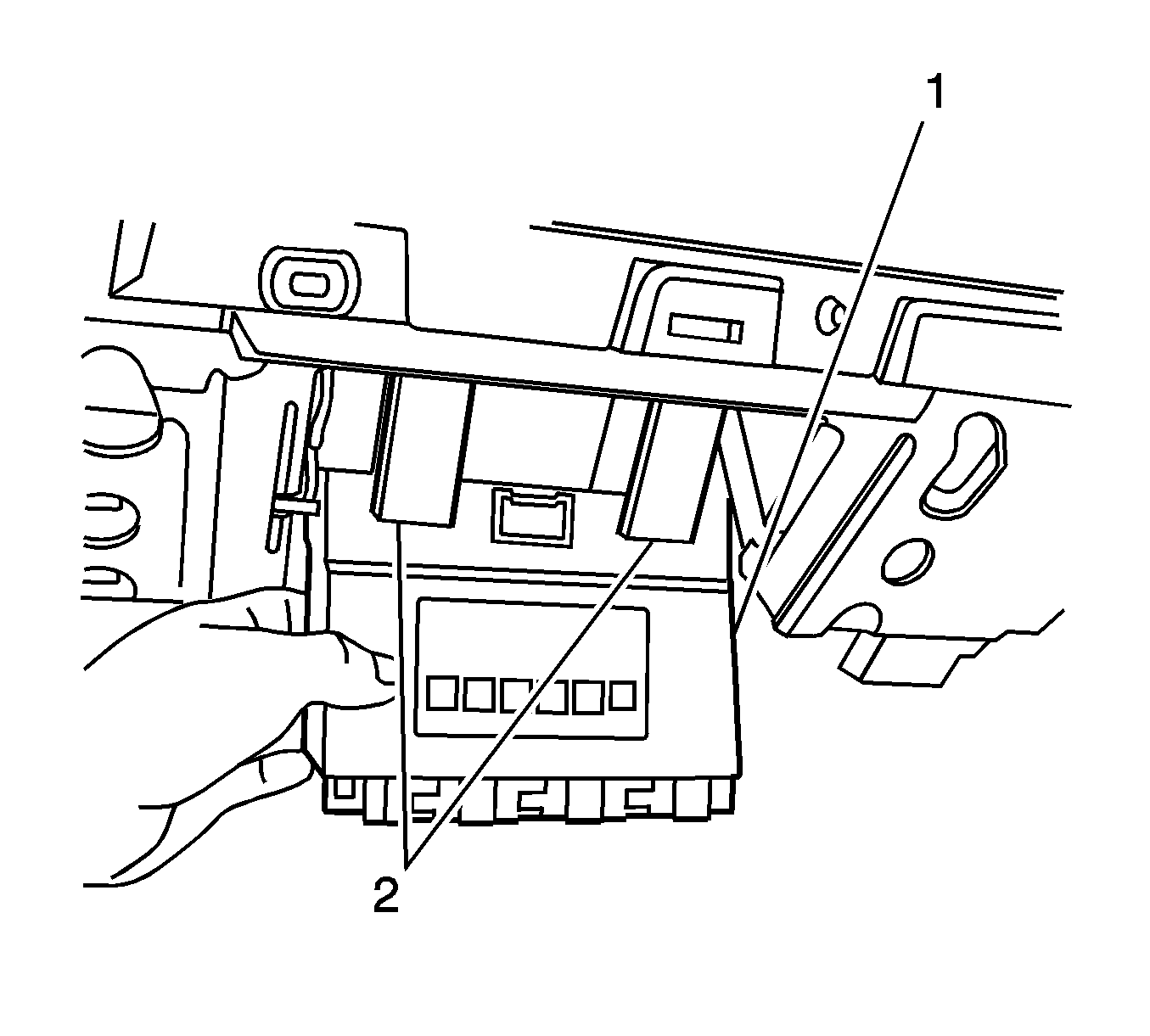

- Install the BCM (1) into the bracket.
Ensure the BCM (1) is engaged in the bracket, under the retaining tabs (2).
- Connect the electrical connectors (2) to the BCM (1).
- Install the right side knee bolster trim panel. Refer to Passenger Knee Bolster Replacement .
- If you replaced the BCM, program the module. Refer to Body Control Module Programming and Setup .
- Refer to Control Module References for programming and setup information.
