2007 Chevrolet Uplander V6-3.9LFACTORY OEM SERVICE PROCEDURE
Battery Current Sensor: Locations

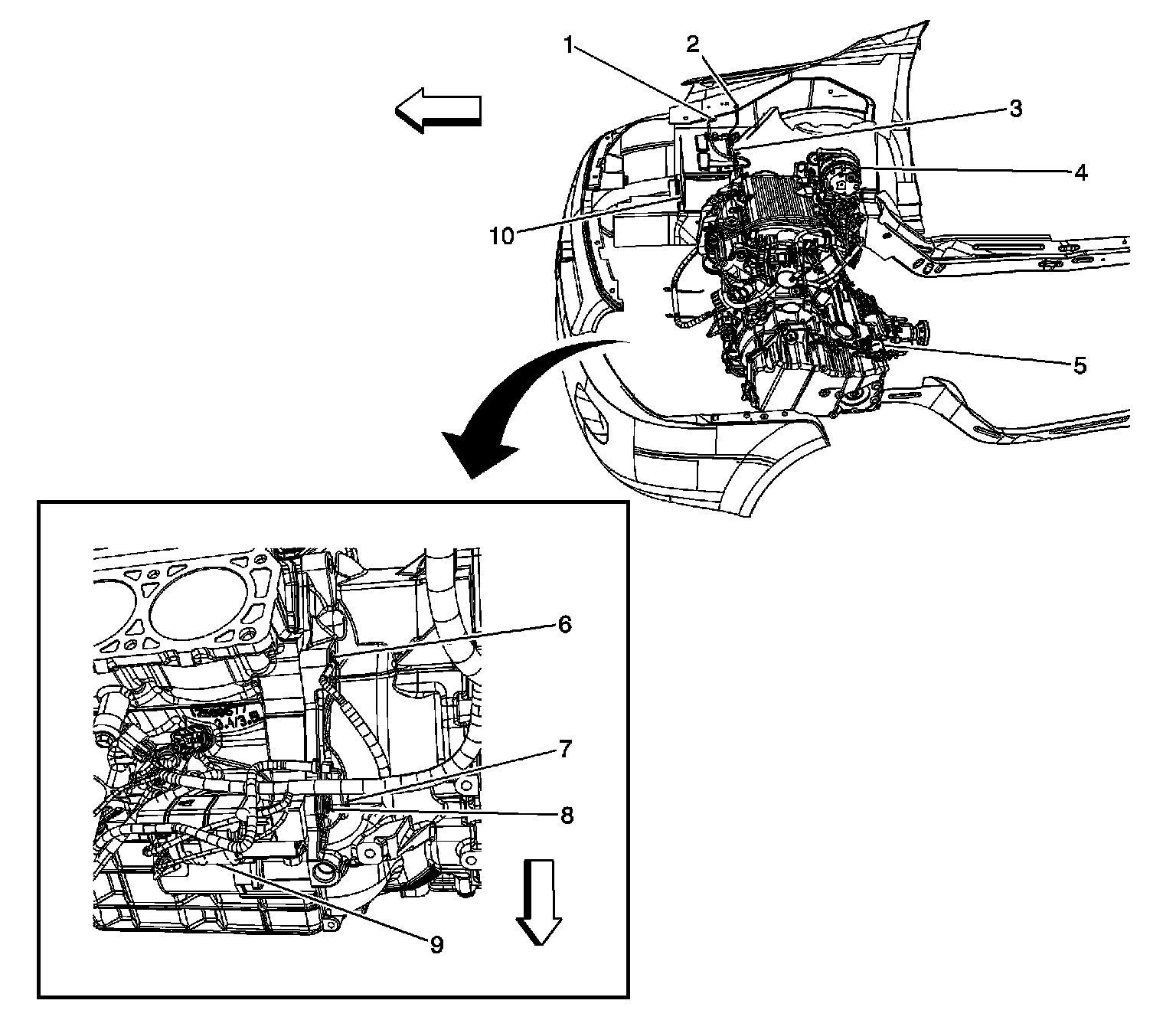

Engine Electrical Component Views
Engine Electrical Components
1 - Fuse Block - Underhood (Battery Stud)
2 - G102
3 - Battery Current Sensor
4 - Generator
5 - Automatic Transmission
6 - G113
7 - G115 (Battery Cable)
8 - G115
9 - Starter Motor
10 - Battery
