2007 Chevrolet Uplander V6-3.9LFACTORY OEM SERVICE PROCEDURE

Accelerator Pedal Position Sensor: Service and Repair



Accelerator Pedal Position Sensor Replacement

Removal Procedure

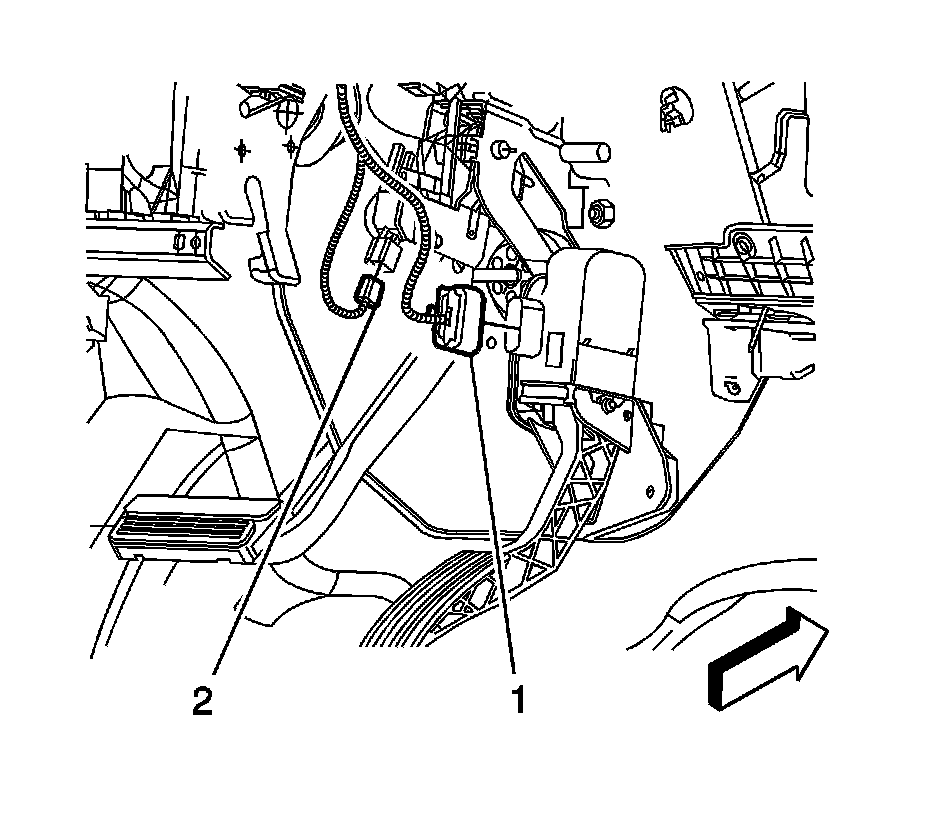

Factory service manual diagram



1. Remove the insulator panel.
2. Remove the connector position assurance (CPA) retainer.
3. Disconnect the instrument panel (I/P) harness electrical connector (1) from the accelerator pedal.

Factory service manual diagram



4. Remove the accelerator pedal bolts.
5. Remove the accelerator pedal (2).

Installation Procedure

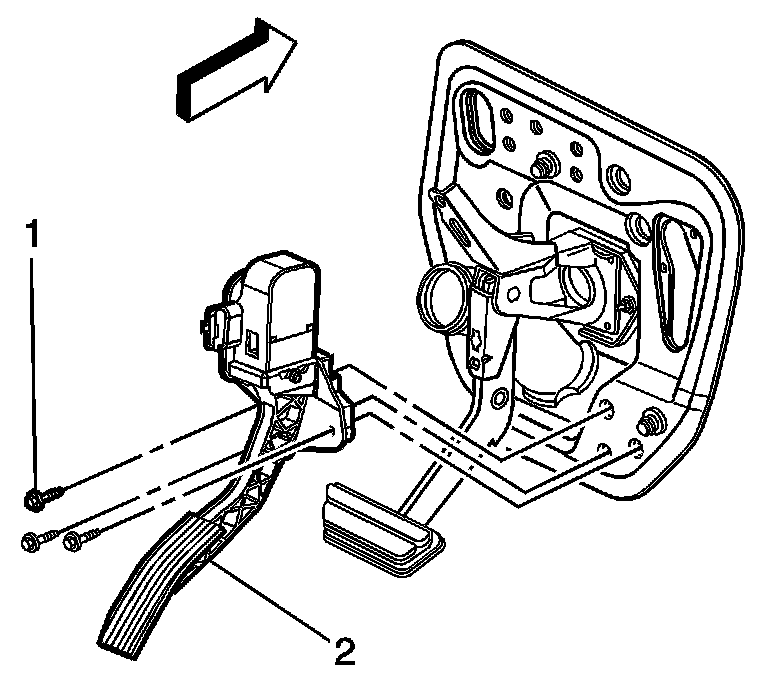

Factory service manual diagram



1. Install the accelerator pedal (2).

Notice: Refer to Fastener Notice.

2. Install the accelerator pedal bolts (1).

Tighten the bolts to 10 N.m (89 lb in).

Factory service manual diagram



3. Connect the I/P harness electrical connector (1) to the accelerator pedal.
4. Install the CPA retainer.
5. Install the insulator panel.
6. Verify the operation of the accelerator pedal.
