2007 Chevrolet Uplander V6-3.9LFACTORY OEM SERVICE PROCEDURE

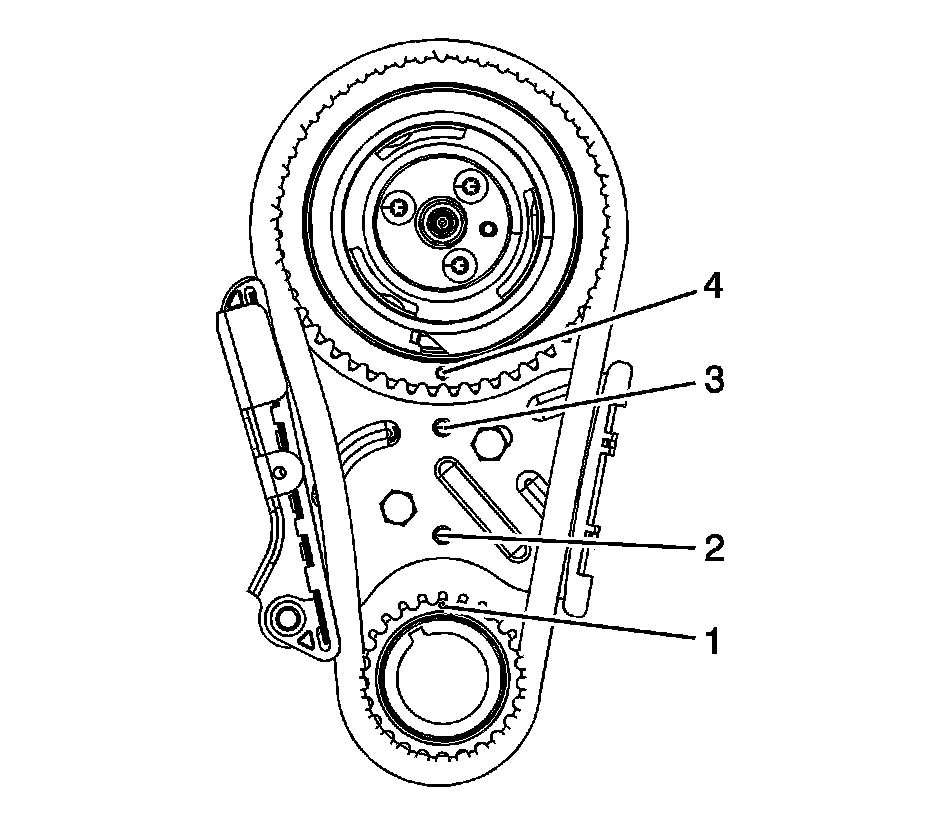

Timing Component Alignment Marks: Locations
Important: Always install a NEW camshaft position actuator filter anytime the camshaft position actuator is removed or installed.
^ Align the crankshaft timing mark (1) to the timing mark on the bottom of the timing chain tensioner (2).
^ Hold the camshaft sprocket with the timing chain hanging down and install the timing chain to the crankshaft gear.
^ Align the timing mark on the camshaft gear (4) with the timing mark on top of the timing chain tensioner (3).
